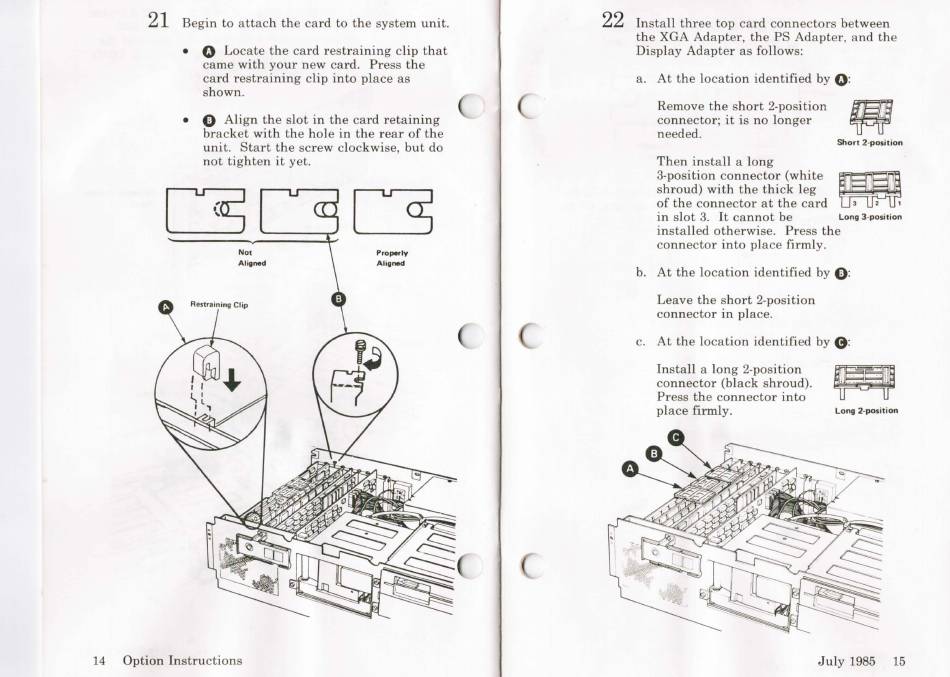

21
Begin to attach the card to the system unit.
• 0
Locate the card restraining clip that
came with your new card. Press the
card restraining clip into place as
shown.
• 0
Align the slot in the card retaining
bracket with the hole in the rear of the
unit. Start the screw clockwise, but do
not tighten it yet.
Not
Al igned
14 Option Instructions
Properly
Al igned
22
Install three top card connectors between
the XGA Adapter, the PS Adapter, and the
Display Adapter as follows:
a. At the location identified by
0 :
Remove th e short 2-position
connector; it is no longer
needed.
Then install a long
Short 2 ' posit ion
3-position connector (white
~ .
nl
shroud) with the thick leg U
of the connector at the card
3 2 1
in slot 3. It cannot be
lon g 3 -positi on
installed otherwise. Press the
connector into place firmly.
b. At the location identified by
0 :
Leave the short 2-position
connector in place.
c. At the location identified by
8:
Install a long 2-position
connector (black shroud).
Press the connector into
place firmly.
long 2' pos ition
July 1985 15
