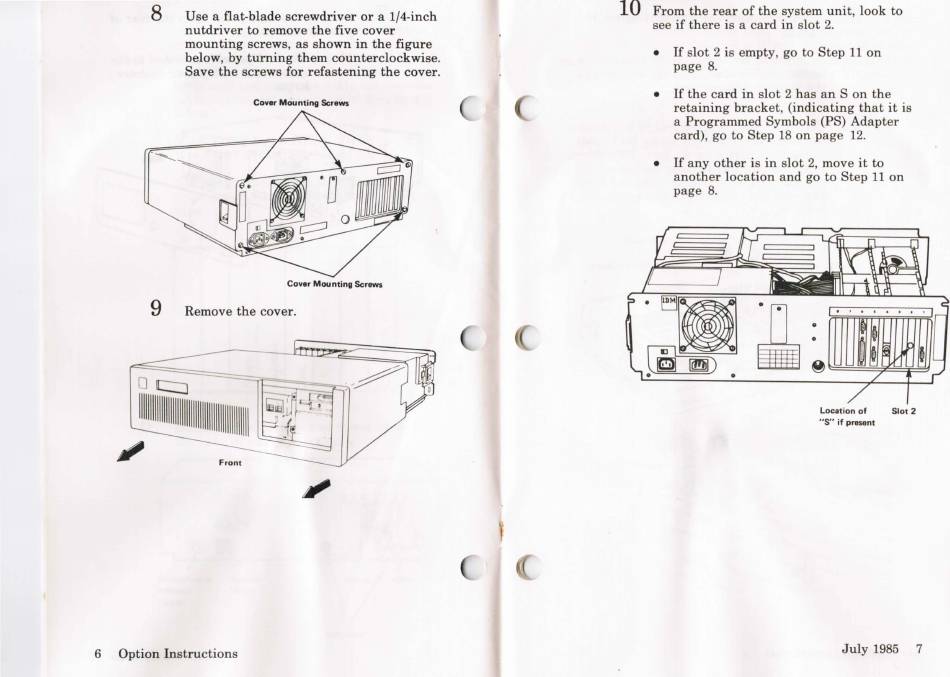

Use a flat-blade
screwdriver or a
1/4-inch
nutdriver
to
remove the five cover
mounting screws, as shown
in
the figure
below, by
turning
them counterclockwise.
Save the
screws
for
refastening
the cover.
Cover Mounting Screws
Cover Mounting Screws
9
Remove the cover.
1111111111111111111111111111111111111111111111111
MI'
Front
6
Option Instructions
10
From the rear of the system unit, look to
see if there is a card in
slot
2.
•
If
slot
2
is empty, go to Step
11
on
page 8.
•
If the card in slot 2 has an S on the
retaining bracket, (indicating that it is
a Programmed Symbols (PS) Adapter
card), go to Step 18 on page
12.
•
If any other is in
slot
2,
move it to
another location and go to Step
11
on
page
8.
Location
of
Slot 2
"s"
if present
July
1985
7
