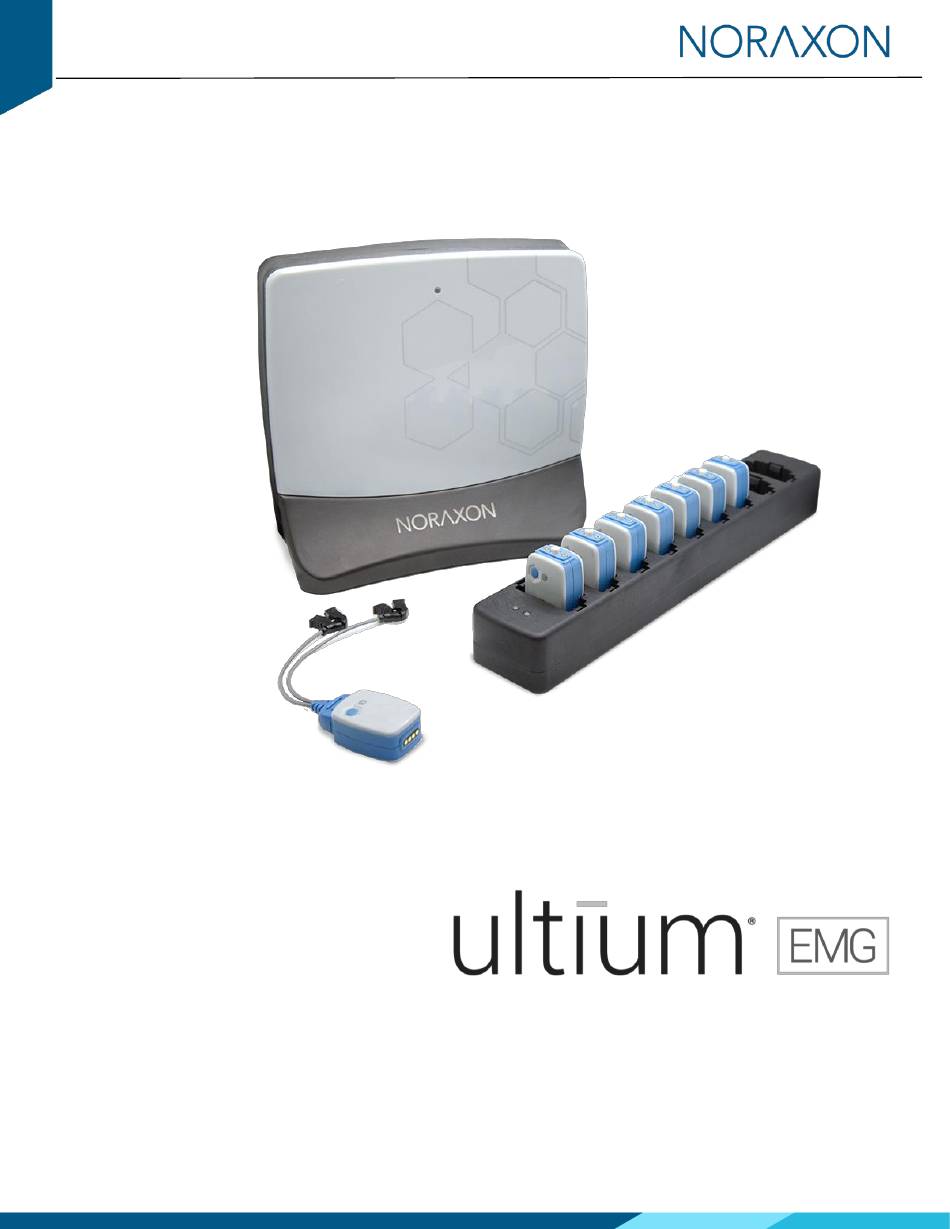

- Page 1 Ultium EMG Quick Start Guide Quick Start Guide (Rev C)
- Page 2 Ultium EMG User Manual (#P-8808) for more detailed operating instructions. 1 System Unboxing The Ultium EMG System is packed within a reinforced padded box for storage and protection during transport. Upon arrival, carefully remove all contents and verify the following components are present.
-
Page 3: Installing The Hardware
Ultium EMG Quick Start Guide 2 Installing the Hardware Step 1 Insert the USB cable (#CBL2) into the USB connector on the back of the Ultium Receiver (#880). Insert the opposite end of the USB cable into an available USB port on the computer. - Page 4 To utilize the full functionality of the Ultium EMG system, and ensure the system has updated drivers, Noraxon’s myoResearch (MR) needs to be installed on the computer. Note: The Ultium Receiver requires the Noraxon USB device driver which is pre-installed by the MR software installation. It is also available in the Downloads section of the Noraxon website.
-
Page 5: Configuring The Hardware
Within the “General” tab, select the desired settings for the system, i.e., name, sample rate, cutoff filters. Note: If available, firmware updates for the Receiver and Sensors will be indicated here. If using myoSYNC, click the Use Noraxon myoSYNC checkbox. Additional settings are available within the “Advanced” tab. - Page 6 Ultium EMG Quick Start Guide Step 4 Make sure the EMG or SmartLead Sensors are placed in the Charger(s) and the Charger(s) are connected to the Ultium Receiver, then click Detect Sensors in Chargers to load all sensor serial numbers into the MR software.
-
Page 7: Recording A Measurement
Select an application, then select or create a new protocol. Click MEASURE to proceed. Step 2 Insert the Ultium EMG device into the configuration by dragging it from the Available Devices list to the Devices in Your Configuration area. Step 3 Select the channels to include in the measurement by clicking the checkmark. -
Page 8: Viewing A Record
Online and post-measurement signal processing • Customized reporting • Exporting (and importing) of data To learn more about the features available to you through the system(s) you have purchased, refer to the corresponding Hardware User Manual for this device (#P-8808) and www.noraxon.com. (Rev C)
