Ecolab Engineering | Institutional Division
Installation Guide

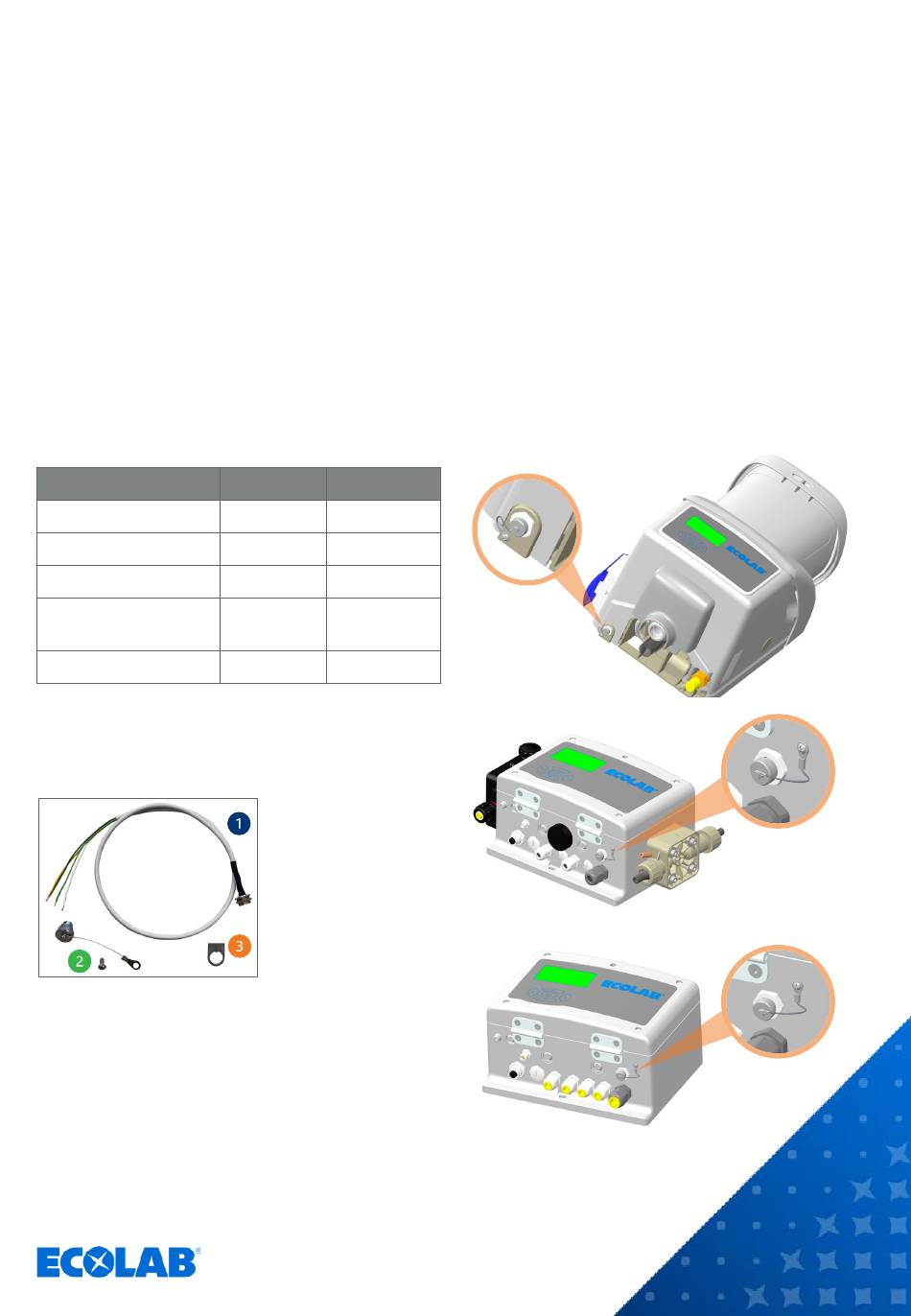

For retrofitting the internal USB cable in certain types of Ecolab dispensing units,
please follow the steps outlined in this installation guide.
When servicing the dispensing systems in the field, the USB cable SDX can be used by the
Ecolab technician for data transfer and analyses.
If this USB cable is not implemented,
retrofitting is possible for the following
dispensing systems:
SYSTEM
Ecoplus SDRX
Ecoplus PDRX
EXN-II
Turbo Smart Twin II
(INST & F&B)
Ecoplus PDRX UK
For retrofitting please order:
Retrofit Kit USB Cable SDX
In the following, you will find the detailed
guides to the retrofitting process for the
Ecoplus PDRX and the Turbo Smart Twin II.
Proceed accordingly with the other dosing
systems, Ecoplus SDRX and EXN II.
EE CODE
EBS CODE
172114
10016149
172120
10055274
123542
10052564
123571
10023473
10240068
10240068
EE / EBS article
number 10240845
1
cable with flange socket
2
cover flap with screw
3
anti-rotation device
If the USB cable has already been installed,
you will find a cover flap on the devices in
the
marked
locations.
Ecoplus PDRX
INTERNAL USE ONLY
02/2023 | p.1
Turbo Smart Twin II
EXN-II
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ecolab Ecoplus SDRX
Summary of Contents for Ecolab Ecoplus SDRX
- Page 1 02/2023 | p.1 Installation Guide For retrofitting the internal USB cable in certain types of Ecolab dispensing units, please follow the steps outlined in this installation guide. When servicing the dispensing systems in the field, the USB cable SDX can be used by the Ecolab technician for data transfer and analyses.
- Page 2 Ecolab Engineering | Institutional Division INTERNAL USE ONLY 02/2023 | p. 2 Installation Guide The following instructions describe the retrofitting of the USB cable using the Ecoplus PDRX dispensing unit as an example. For installing the retrofitting kit, opening the Ecoplus housing is necessary. For this, please also refer to the Operating Instructions (especially chapters on Assembly and Installation).
- Page 3 Ecolab Engineering | Institutional Division INTERNAL USE ONLY 02/2023 | p. 3 Installation Guide (continued) 8 Attach the cover flap to the housing, insert it into the flange socket and screw it tight. 9 Guide the USB cable through the...
- Page 4 Ecolab Engineering | Institutional Division INTERNAL USE ONLY 02/2023 | p. 4 Installation Guide (continued) The following instructions refer the retrofitting of the USB cable on the Turbo Smart Twin II. The process is analogue to the retrofitting on the Ecoplus PDRX described above.
