Operation Manual
for Grill'D heaters
Congratulations on your choice - the choice of high duty heaters!
Compliance with this Manual guarantees excellent quality and maximum
service life of the Grill'D brand stone heaters.
Read the heater and water tank Manual carefully before commencing
installation and operating the stone heater.

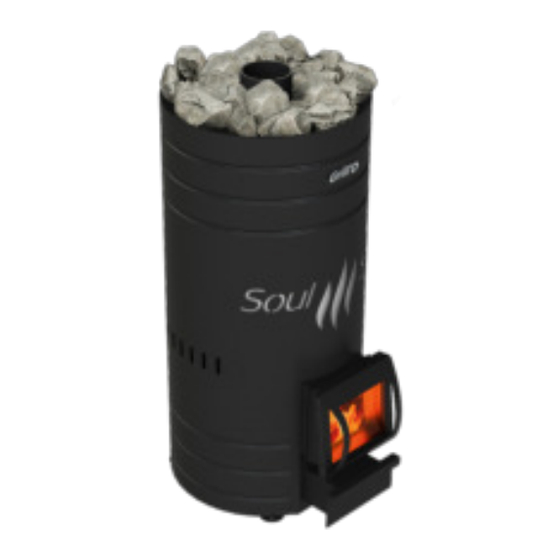

Bochka 160 Short
Bochka 160 Long
Advertisement
Table of Contents
Related Manuals for Grill'D Soul Steel Bochka 160 Short
Summary of Contents for Grill'D Soul Steel Bochka 160 Short
- Page 1 Operation Manual for Grill’D heaters Congratulations on your choice - the choice of high duty heaters! Compliance with this Manual guarantees excellent quality and maximum service life of the Grill’D brand stone heaters. Read the heater and water tank Manual carefully before commencing installation and operating the stone heater.
- Page 2 Fig. 1 Dimensions of heater «Grill’D» Bochka 160 short...
- Page 3 Fig. 2 Dimensions of heater «Grill’D» Bochka 160 Long...
-
Page 4: Table Of Contents
CONTENTS стр No. page APPLICATION TECHNICAL DATA HEATER DESIGN HEATER OPERATION HEATER PARTS INSTALLATION WARRANTY COMMISSIONING HEATER OPERATING PROCEDURE SAFETY MEASURES 10. TYPICAL FAULTS AND TROUBLESHOOTING METHODS 11. MAINTENANCE 12. LABELING AND PACKING 13. TRANSPORTATION AND STORAGE 14. DISPOSAL 15. SCOPE OF SUPPLY 16. -
Page 5: Heater Design
Table 1. Technical data Bochka 160 Bochka 160 Model Short Long Steam room volume (m 6-16 Outlet connection diameter (mm) Mass of stones in the closed stone heater (max, kg) Mass of stones in the decorative stone heater (max, kg) Stone diameter (mm) 30-60 Width (mm) - Page 6 Fig. 3 Heater main elements 1 – Кожух защитный 2 – Патрубок котловой 3 – Топливный канал 4 – Зольный ящик 5 – Дверца с термостойким стеклом 6 – Топка печи 7 – Каменка закрытая 8 – Встроенный бак для воды 9 –...
-
Page 7: Heater Operation
through a funnel (9). The heater maintenance activities are described in Section 11. MAINTENANCE. The water tank maintenance activities are described at the end of this Manual. IMPORTANT! The Manufacturer reserves the right to make modifications to the design of the heater that do not impair its consumer properties. - Page 8 5.2. Door It is necessary to perform the following actions to install the door (refer to Figure 6): 1) Choose the door opening direction and mount the door onto the seat; 2) Fix it in this position via the metal pin. Fig.
- Page 9 Fig. 7 Fig. 8 Fig. 9 Fig. 10...
-
Page 10: Warranty
6. WARRANTY The warranty period for the Product is 5 years, it applies to the integrity of weld joints. The warranty period for the entire Product is 1 year. The warranty is valid from the date of purchase of the Product by the Consumer. The Product service life is not less than 10 years*. - Page 11 Compound for metal protection and volatile components of the heat- resistant enamel evaporate as a result of stoking. Note: Heat-resistant enamel can change tone on the most thermally loaded elements of the heater, which is not a manufacturing defect. IMPORTANT! Avoid the chance of mechanical impact and ingress of water on the paint coating of the heater during preparatory stoking.
-
Page 12: Heater Operating Procedure
8. HEATER OPERATING PROCEDURE 1) Prior to every firing of the heater proceed as follows: - Make sure that there is draft in the chimney. - Make sure that there are no foreign objects, combustion Product residue from previous stoking in the heater firebox, ash drawer, or in the chimney. - As required, remove all unnecessary and foreign objects from the firebox and chimney;... -
Page 13: Safety Measures
6) The heater operation may be terminated after the entire load of firewood burns up. To do so, wait for the complete cooldown of the heater, remove ash from the firebox to the ash drawer, and then clean the ash box. 7) Drain the water from the integrated tank. -
Page 14: Maintenance
2) Fault: It takes a long time to heat the room. Possible cause: The heater was selected incorrectly and (or) thermal insulation of the room is not in compliance with the requirements. Troubleshooting: Select a heater of a greater capacity. Insulate the room in accordance with SNiP 23-02-2003. -
Page 15: Labeling And Packing
Note: For information on the water tank maintenance, refer to the Operation Manual for the water tank. IMPORTANT! Carry out maintenance works on the heater and chimney only after their complete cooldown. The heater and chimney shall be cleaned of soot before the commencement of the heating season, as well as during the entire heating season at least once every three months. -
Page 16: Disposal
IMPORTANT: The air of the storage room shall not contain impurities of corrosive substances. Shelf life in original packaging until re-preservation is 12 months. 14. DISPOSAL The Product does not contain any harmful, hazardous, toxic substances, and thus does not pose hazard to human life and health, and to the environment, so it can be disposed of according to the rules for general industrial waste disposal. -
Page 17: Operation Manual For The Integrated Water Tank
16. Operation Manual for the integrated water tank 1. APPLICATION The tank is designed to provide hot water in the room of the heater installation. 2. PACKAGE CONTENTS The tank is integrated and is delivered ready-mounted with the Bochka bath house heater. - Page 18 • Using water with a high content of salts, iron, lime and other impurities that do not meet the standards (pH> 7) • Leaving water in the tank at any time of the year. 6. INSTALLATION AND PRESTARTING PROCEDURES There is no need to install the tank as it is delivered ready-mounted inside the heater.
- Page 19 Notes...
- Page 20 _____________________________________________________________ QCD mark: (Name, signature, stamp) ____________________________________________________________ Date of sale: (Date, Seller’s signature, store stamp) I have read and understood this Operation Manual: ________________________ (Buyer’s signature) IMPORTANT! The Manufacturer disclaims warranty liability in the absence of a store stamp.
