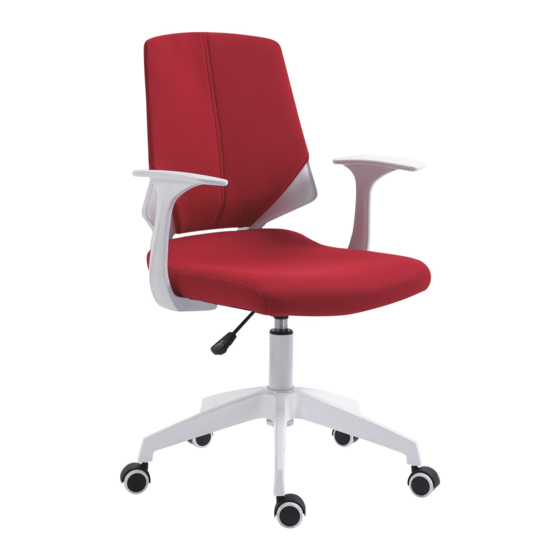

Techni Mobili RTA-3240 Assembly Instructions

PARTS LIST
ATTENTION: Before you begin to assemble the
product, please make sure that all the parts are
included in the package and in good condition.
A Backrest B Seat
x1 x1
C Star Base D Mechanism
x1 x1
Casters
E Hydraulic F
Gas Lift
x1 x5
G Armrest
x1 Right
x1 Left
When you seat on the chair, not looking at it.
H M6x20mm I M6x35mm
x4
x10
(Mechanism) (Armrests, backrest)
K
J Washers Ø 18mm Allen wrench
x10 x1
(Armrests, backrest)

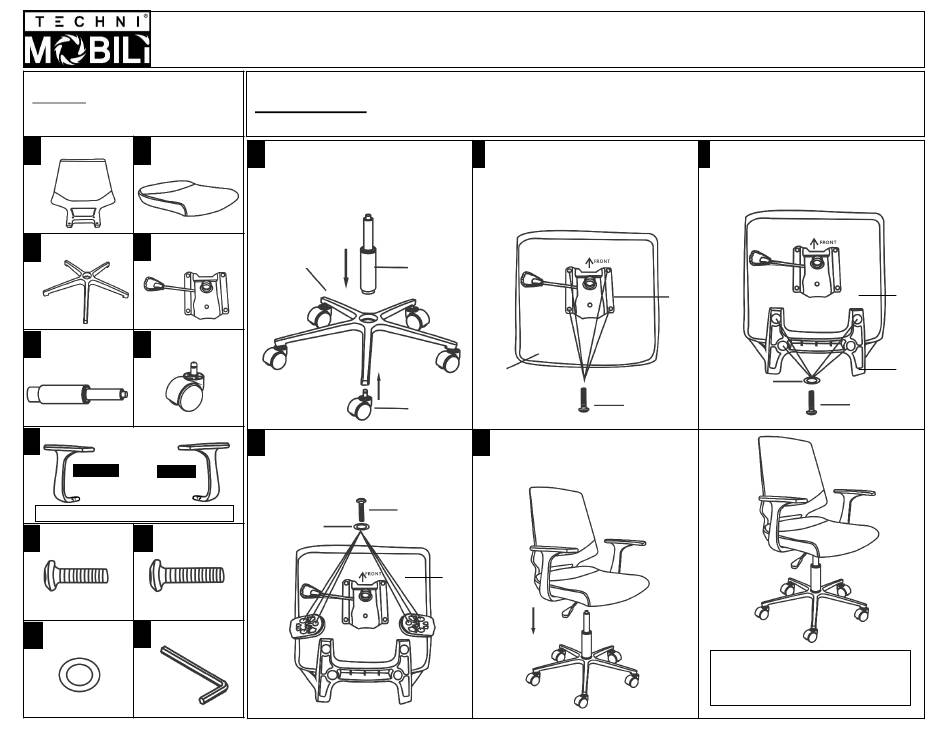

ASSEMBLY INSTRUCTIONS
CHAIR STYLE RTA-3240
• Follow the instructions step by step.
ATTENTION:
• To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
• Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
• Using the wrong size of screws on a part could result in damage to the screw or the part
1
Insert the casters (F) into the legs of the
base (C) using pressure, then place the
gas lift (E) in the middle of the base as
shown.
C
E
F
4
Assemble the armrests (G) to the seat
(B) on their respective sides using
screws (I) and washers (J) as shown.
I (x6)
J (x6)
G
(Right)
2
Place the seat (B) upside-down with its
front away from you as shown. Use screws
(H) to assemble the mechanism (D) with its
handle facing to your LEFT as shown.
B
5
Place the top parts over the base parts
making sure the tip of the gas lift enters
into the hole of the mechanism.
B
G
(Left)
3
Use screws (I) and washers (J) to
assemble the backrest (A) to the seat (B)
as shown.
D
J (x4)
H
Before seating and using the chair for
the first time, make sure that all screws
are properly tightened.
B
A
I (x4)
