MODEL RTA-3245C
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
REV.NE-6751-0622

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTA-3245C and is the answer not in the manual?

Questions and answers

Summary of Contents for Techni Mobili RTA-3245C

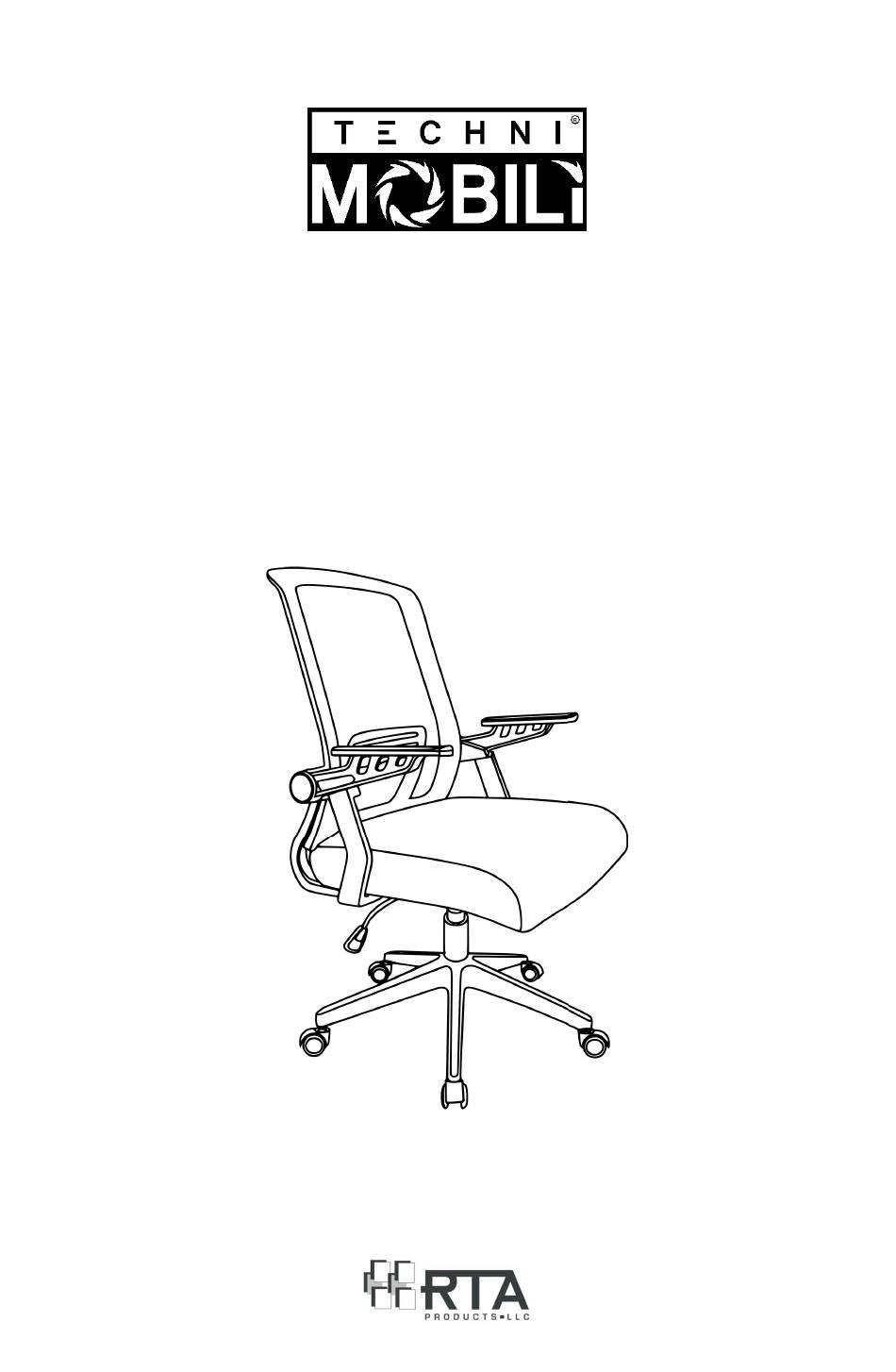

  • Page 1 MODEL RTA-3245C ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.NE-6751-0622...
  • Page 2 RTA-3245C MAIN PARTS LIST Backrest Seat 5-Leg star Mechanism base Pneumatic lift Casters Left Right Covers for cylinder armrest armrest cylinder Sitting on the chair, not looking at it HARDWARE LIST PART ITEM USE IN M6x20 Mechanism M6x30 Arms to backrest...
  • Page 3 RTA-3245C BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❶ ❻ Do a quick inventory to Make sure you make sure the package understand which hardware contains all the parts and will be used on each step.
  • Page 4 RTA-3245C ASSEMBLY STEPS STEP 1 Insert the casters F into the legs of the base C using pressure, then place the pneumatic lift E in the middle of the base and cover it with H. STEP 2 Assemble the armrests G-L, G-R to the backrest A on their...
  • Page 5 RTA-3245C STEP 4 Assemble the mechanism D to the seat B with screws I making sure its tension knob goes facing towards the front of the seat. Hardware M6x20 (Front) (Front) STEP 5 Put the seat over the base parts making sure the tip of the pneumatic lift E enters into the hole of the mechanism D.
  • Page 6 RTA-3245C CHAIR’S FUNCTIONS • To raise or lower the chair’s height, pull UP the lever that is under the seat. The chair goes down while sitting on it, or up if you lift your body. • To make the chair tilt freely, pull the same lever OUT horizontally to unlock this function. When the chair is in the normal upright position, push the lever IN to lock again.
  • Page 7 TASK/KID'S CHAIR: 1-YEAR WARRANTY EXECUTIVE/MANAGER CHAIR: 2-YEAR WARRANTY 1.RTA Products, LLC has warranted the Techni Mobili office chairs to the original purchaser who acquired a new product from RTA Products or its authorized resellers of the product against defects in material or workmanship.
  • Page 8 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
