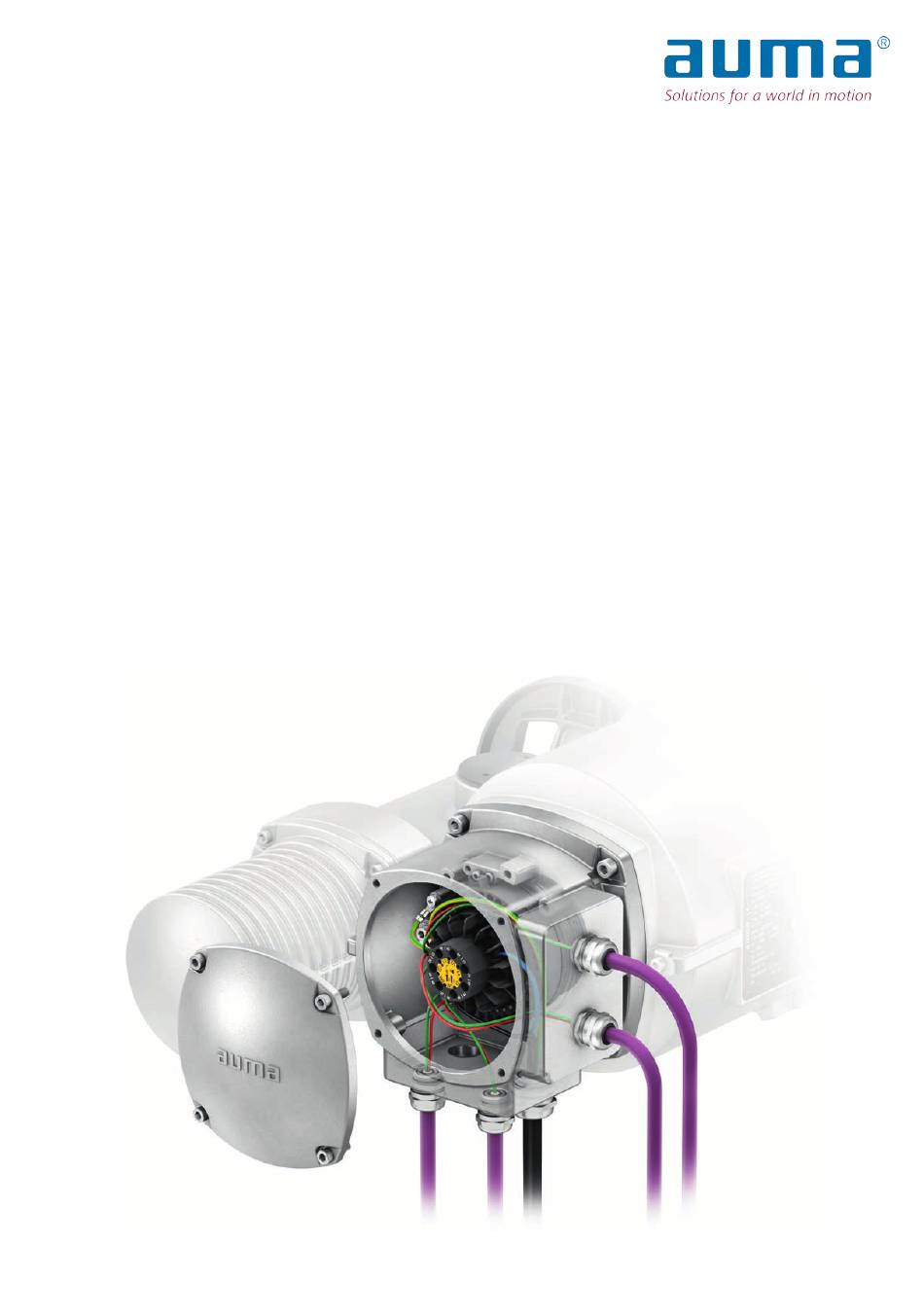

  • Page 1 Multi-turn actuators TIGRON TR-M30X – TR-M1000X Profibus DP Short instructions Fieldbus connection...
  • Page 2 Table of contents Use short instructions in combination with operation instructions only! These short instructions are only complete with the respective operation instructions of the actuator. Safety and warning instructions contained in the actuator operation instructions must be heeded when performing work on the actuator! Table of contents 1 Basic information on fieldbus connection.....................

  • Page 3: Basic Information On Fieldbus Connection

    Basic information on fieldbus connection 1 Basic information on fieldbus connection Electrical connection The electrical connection of the actuator must be opened to be able to connect the fieldbus cables. Refer to actuator operation instructions, “Electrical connection” chapter. Information: The Electrical connection chapter of the operation instructions fully ap- plies to the connection of the fieldbus cables.

  • Page 4: Fieldbus Connection For Line Topology

    Fieldbus connection for line topology 2 Fieldbus connection for line topology Figure 1: Line topology n–1 n–1 n–1 n–1 n–1 n–1 Table 2: Explanation of symbols for terminal assignment Channel 1 Channel 2 Last fieldbus device n–1 Fieldbus cable from previous device (input) Fieldbus cable to next device (output) Connection at terminal carrier For flexible cables, the fieldbus connection can be made via spring clamp terminals...
  • Page 5 Fieldbus connection for line topology Always link A connections to green wire and B connections to red wire. Connection with support terminals When using solid cables (single or multiple strands), additional support terminals must be used. The support terminals (terminal blocks) are mounted above the terminal car- rier.

  • Page 6: Set Fieldbus Address (Field Device Address) Via The Device Menu

    Set fieldbus address (field device address) via the device menu 3 Set fieldbus address (field device address) via the device menu Local actuator settings are made using the Combi-Switch. a) Operate the yellow shuttle dial of the Combi-Switch to scroll within the menu b) Operate the black selector switch (outer ring), either to confirm the selected menu...

  • Page 7: Profibus Parameter Overview In Device Menu

    Profibus parameter overview in device menu 4 Profibus parameter overview in device menu Device menu parameters can also be set via the AUMA CDT software. For informa- tion on AUMA CDT, refer to the operation instructions and our website at www.auma.com.
  • Page 8 AUMA Riester GmbH & Co. KG Location Muellheim PO Box 1362 79373 Muellheim, Germany Tel +49 7631 809 - 0 Fax +49 7631 8091250 info@auma.com www.auma.com PR00552/en/1.24 For detailed information on AUMA products, refer to the Internet: www.auma.com...
