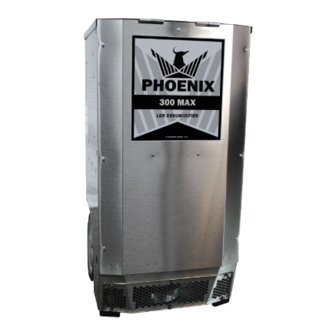

Phoenix 300 MAX - LGR Dehumidifier
The Phoenix 300 MAX is one of the most effective and versatile drying devices available. The Phoenix 300 MAX features more
water removal (175 pints per day@AHAM) and higher grain depression than other refrigerant dehumidifiers, while drawing only
10.0 amps of electricity.
The 300 MAX features Phoenix's patented bypass design, which is now enhanced to compensate for temperature
automatically. By sensing and adjusting to temperature changes in the drying chamber, the 300 MAX maximizes water
removal over an extended operating range without the need for manual adjustments.
At higher temperatures, where typical LGRs lose effectiveness, the Phoenix 300 MAX automatically adjusts to continue
removing moisture. This offers several advantages to the restorer, including faster evaporation rates, quicker drying, and
elimination of the need to remove or modify equipment for temperature control.
The Phoenix 300 MAX LGR,
High Capacity Dehumidifier
•
Automatic Bypass Technology – Patented
technology automatically adjusts for
temperature variation, increasing performance
over a wider operating range.
•
High Capacity - Removes 175 pints per day at
AHAM
•
10.0 amps - Removes over 6.3 pints/kWh.
•
R-410A Refrigerant
•
More Grain Depression - Drier air from an LGR
finishes jobs quicker versus a conventional
refrigerant dehumidifier.
•
Focused Airflow - Patented focused outlet
directs air downward across the wet surface.
•
Motorized Impeller - 395 CFM; Faster drying and
superior static pressure for ducting.
•
Multiple Ducting Options - 12" intake, 16"
exhaust.
•
Solid State Controls - Easy to read and operate.
•
Recessed 12" Wheels - Allows greater
maneuverability on the job site and efficient
storage. Rolls over obstacles with ease.
•
MERV-11 Pleated Media Air Filter
1.800.533.7533
OWNER'S MANUAL
Installation, Operation & Service Instructions
– READ AND SAVE THESE INSTRUCTIONS –
USEPHOENIX.COM
Phoenix 300 MAX
Part No. 4030020
Patent 7,246,503
8,347,640
Patent Pending
Specifications subject to change without notice.
WISCONSIN
1
TS-921
07/18 Rev. B
