Owner's Manual — Phoenix R175 LGR Dehumidifier
The Phoenix R75 is the first roto-mold LGR (low grain refrigerant) dehumidifier manufactured
by Therma-Stor, LLC. The R75 combines Phoenix innovation, technical expertise and
proven durability. This unit will remove more water, produce more grain depression and dry
structures and contents faster than standard refrigerant dehumidifiers.
In addition to the performance benefits are the multiple ducting options, pleated media filter
and energy efficient operation. The R75 is the latest member of the Phoenix line of LGR
dehumidifiers; the most effective and versatile drying devices made.

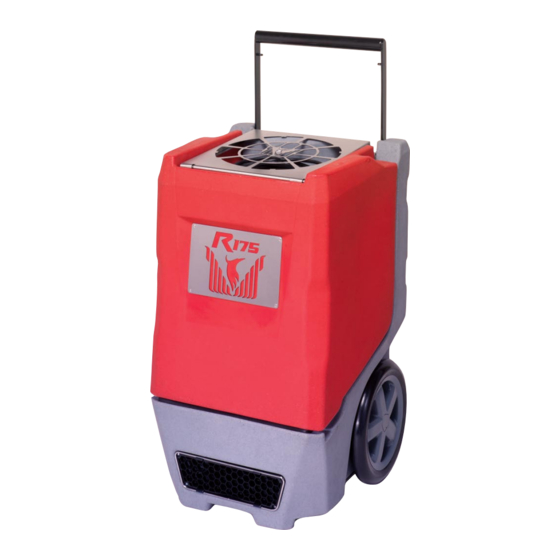

The Phoenix R175 LGR Dehumidifier
Increased Capacity - The Phoenix R75 removes over
30% more water than other dehumidifiers of equal
size.
Energy Efficiency - Removes 92 pints at AHAM while
drawing only 6. amps.
230 CFM - More processed air speeds drying and
provides superior static pressure for ducting.
More Grain Depression - The driest air from an LGR
gets your jobs drier quicker.
Focused Airflow - Patent pending focused outlet directs
air downward towards the wettest surface.
Multiple Ducting Options - 2" intake, 0" exhaust.
Plastic Housing - Rugged roto-molded housing resists
dents and scratches.
Solid State Controls - Easy to read and operate.
Protected Condensate Hose - Located under the lid.
Cannot catch or be damaged on obstructions.
Telescoping Handle - A heavy-duty retractable handle
for ease of transport and reduces space for storage
and stacking.
Recessed 12" Wheels - For greater maneuverability on
the job site and efficient storage. Rolls over obstacles
with ease.
Pleated Media Air Filter - A MERV-7 is standard.
Stacking/Nesting - Reduces space for ease of stacking
and storage.
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
PO Box 8680 • Madison, WI 53708
Installation, Operation & Service Instructions
Read and Save These Instructions
Phoenix R175
Part No. 4026300

www.thermastor.com • sales@thermastor.com
Phoenix R175 LGR Dehumidifier
Revised 1/07
TS-348

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phoenix R175 and is the answer not in the manual?

Questions and answers

Related Manuals for Therma-Stor Phoenix R175

Summary of Contents for Therma-Stor Phoenix R175

  • Page 1 Owner’s Manual — Phoenix R175 LGR Dehumidifier Installation, Operation & Service Instructions Read and Save These Instructions The Phoenix R75 is the first roto-mold LGR (low grain refrigerant) dehumidifier manufactured by Therma-Stor, LLC. The R75 combines Phoenix innovation, technical expertise and proven durability.

  • Page 2: Table Of Contents

    The Phoenix R75 must always be upright when transported by vehicle. It may be tipped onto its handle and back for loading and moving by hand. www.thermastor.com • sales@thermastor.com Shipping 24” 45.25” 25.5” 0 lbs Figure 1: Stacked Phoenix R175...

  • Page 3: Electrical Requirements

    Figure 2: Phoenix R175 control board. Toll-Free 1-800-533-7533 3.6 POWER Button Press the POWER button to turn the dehumidifier on or off.

  • Page 4: Storage

    5. Walk out hose to drain completely 6. Replace air filter 5 Service WARNING: Servicing the Phoenix R175 with its high pressure refrigerant system and high voltage circuitry presents a health hazard which could result in death, serious bodily injury, and/or property damage. Only qualified service people should service this unit.

  • Page 5: Air Mover

    No dehumidification, air mover runs but compressor does not. . Bad connection in compressor circuit 2. Safety float switch closed, check pump reservoir 3. Defective compressor capacitor 4. Defective compressor overload 5. Defective compressor 6. Defective control board Air mover does not run. Compressor runs briefly but cycles on and off.

  • Page 6: Condensate Pump

    5.5 Condensate Pump The internal condensate pump removes water that collects in the reservoir. To replace the condensate pump: . Unplug the unit 2. Remove the front housing 3. Unplug the pump wires from the wire harness 4. Remove the condensate hose and the one screw attaching the pump bracket to the compressor support 5.

  • Page 7: Service Parts

    8 Service Parts Item Description Top Cover Top Cover Latch Latch Backstop Hex Bolts, /4”–20 x 4” 4 Hex Bolts, /4”–20 x .75” Handle Assembly Wheel, 2” Retaining Ring Control Interface Filter, 2” x 2” x ” Hose (/4” ID x 33’ long) Coupling Body, /4”...
  • Page 8 This page intentionally left blank. Toll-Free 1-800-533-7533 www.thermastor.com • sales@thermastor.com...

  • Page 9: Warranty

    Phoenix R175 Dehumidifier Limited Warranty Warrantor: Therma-Stor LLC PO Box 8680 Madison, WI 53708 Telephone: -800-533-7533 Who Is Covered: This warranty extends only to the original end-user of the Phoenix R75 dehumidifier, and may not be assigned or transferred. Year One: Therma-Stor LLC warrants that, for one () year the Phoenix R75 dehumidifier will operate free from any defects in materials and workmanship, or Therma-Stor LLC will, at its option, repair or replace the defective part(s), free of any charge.
