Owner's Manual — 200 HT LGR Dehumidifier
The Phoenix 200 HT features LGR (low grain refrigerant) technology. This technology enables the 200 HT to remove more
water and create more grain depression than standard refrigerant dehumidifiers.
Combined with this performance, the multiple ducting and the superior high temperature performance makes the Phoenix
200 HT the most effective and versatile drying device made.

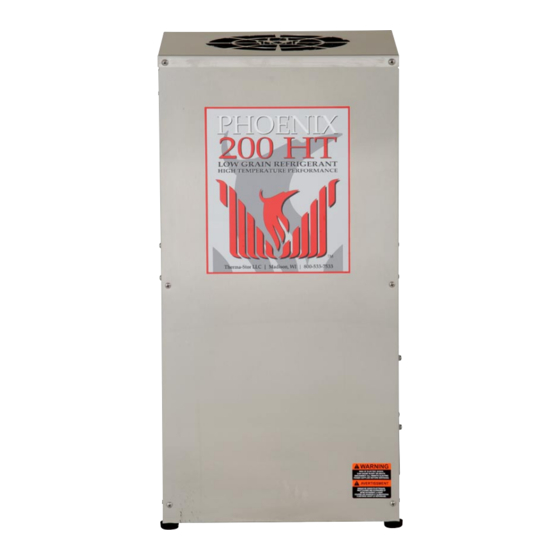

The Phoenix 200 HT
LGR Dehumidifier
In-Board Wheels - Reduces outer dimensions for
tighter storage setups and does not catch on
obstructions for easier movement around the jobsite.
Recessed Condensate Hose - Does not catch on
obstructions and allows for dense storage setups by
reducing overall width of the unit.
Increased Capacity - The Phoenix 200 HT removes 5%
more water than the 200 MAX.
Improved High-Ambient Performance - Patent pending
technology allows superior efficiency in high-ambient
conditions.
Focused Airflow - Patent pending focused outlet directs
air toward the most wet surface.
325 CFM - More processed air speeds drying and
provides superior static pressure for ducting.
More Grain Depression - The driest air from an LGR
gets your jobs drier quicker.
Air Filter - A MERV- is standard.
Multiple Ducting Options - 2" intake, 0" exhaust.
Energy Efficiency - Draws 7.5 amps.
Skid Plate - Protects the 200 HT from damage while
transporting, loading and unloading.
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
PO Box 8680 • Madison, WI 53708
Installation, Operation and Service Instructions
Read and Save These Instructions
Phoenix 200 HT
PN 4025900

www.thermastor.com • sales@thermastor.com
200 HT LGR Dehumidifier
TS-302
Revised 1/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phoenix 200 HT and is the answer not in the manual?

Questions and answers

Related Manuals for Therma-Stor Phoenix 200 HT

Summary of Contents for Therma-Stor Phoenix 200 HT

  • Page 1 Installation, Operation and Service Instructions Read and Save These Instructions The Phoenix 200 HT features LGR (low grain refrigerant) technology. This technology enables the 200 HT to remove more water and create more grain depression than standard refrigerant dehumidifiers. Combined with this performance, the multiple ducting and the superior high temperature performance makes the Phoenix 200 HT the most effective and versatile drying device made.

  • Page 2: Table Of Contents

    • If used in a wet area, plug it into a GROUND FAULT IN- TERRUPTER. • DO NOT use the Phoenix 200 HT as a bench or table. • It must always be used in the upright position. Toll-Free 1-800-533-7533 1 Specifications Part No.

  • Page 3: Operation .............................................................2

    It resets to zero after 99,999.9 hours of operation. 2.8 Temperature Specific Operation Above 90°F - When the Phoenix 200 HT is used in high temperature conditions (above 90°F), the refrigerant pressure inside the condenser rises. By removing the...

  • Page 4: Low Pressure Control

    Toll-Free 1-800-533-7533 3 Maintenance 3.1 Air Filter The Phoenix 200 HT is equipped with a pleated fabric air filter that must be checked regularly. The standard filter is a MERV- high efficiency filter. Operating the unit with a dirty filter will reduce the dehumidifier’s capacity and efficiency and may cause the compressor to cycle off and on unnecessarily on the defrost control.

  • Page 5: Technical Description

    Figure 4: Refrigeration system 4.1 Technical Description The Phoenix 200 HT uses a refrigeration system similar to an air conditioner’s to remove heat and moisture from incoming air and to add heat to the air that is discharged. Hot, high pressure refrigerant gas is routed from the compressor to the condenser coil.

  • Page 6: Blower Replacement

    4.6 Gravity Drain Option If the condensate pump fails and cannot be replaced immediately, the Phoenix 200 HT can be used by draining by gravity. . Unplug the unit and remove the front cover. 2. Push the plastic plug on the left side out from inside the unit.

  • Page 7: Options And Accessories

    4.7 Relay The contacts of the single pole, single throw relay complete the power circuit to the compressor. The contacts are closed when power is provided to the relay coil via the control circuit. The control circuit includes the power switch, low pressure control, defrost thermostat and timer.

  • Page 8: Service Parts

    8 Service Parts Item Description Air Filter, Pleated, 2 X 6 X 20 Cord Front Panel Retaining Nut, /4-20  Wheel, 8” Wheel Hub Cap Retaining Ring Hub Cap Retaining Washer Coupling Body, /4 Tube Foot Defrost Timer Low Pressure Control Filter/Drier Compressor, Carlyle (P/N EAA090A)

  • Page 9: Warranty

    (but all warranty periods will be extended by the period of time, if any, that the Phoenix 200 HT Dehumidifier is out of service while awaiting covered warranty service).
