Owner's Manual — Phoenix 200HT
The Phoenix 200HT is one of the most effective and versatile drying devices available. The Phoenix 200HT features higher
capacity and superior efficiency compared to other refrigerant dehumidifiers, removing 135 pints per day at AHAM while drawing
only 7.2 amps of electricity.
The 200HT also features Phoenix's patented bypass system. At higher temperatures, where typical LGRs lose effectiveness,
patented Bypass Technology helps the Phoenix 200HT continue to remove moisture, leading to faster evaporation, quicker
drying, and elimination of the need to remove equipment for temperature control.

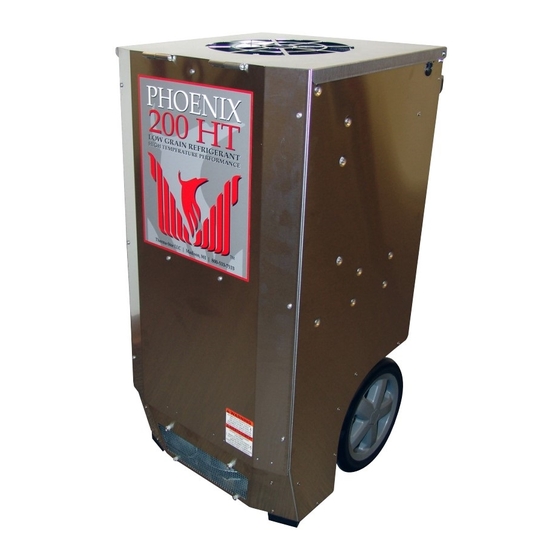

The Phoenix 200HT LGR,
High Capacity Dehumidifier
•
Patented Bypass Technology
•
High Capacity - Removes 135 pints per day at
AHAM
•
7.2 amps - Removes over 6.5 pints/kWh.
•
R-410A Refrigerant
•
More Grain Depression - Drier air from an LGR
finishes jobs quicker versus a conventional
refrigerant dehumidifier.
•
Focused Airflow - Patented focused outlet directs
air downward across the wet surface.
•
Motorized Impeller - 380 CFM; Faster drying and
superior static pressure for ducting.
•
Multiple Ducting Options - 12" intake, 10"
exhaust.
•
Solid State Controls - Easy to read and operate.
Recessed 12" Wheels - Allows greater
•
maneuverability on the job site and efficient
storage. Rolls over obstacles with ease.
•
MERV-11 Pleated Media Air Filter
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
4201 Lien Rd.• Madison, WI 53704
Installation, Operation & Service Instructions
Read and Save These Instructions
Phoenix 200HT
4029970
www.UsePhoenix.com • sales@UsePhoenix.com
TS-621
07/14
