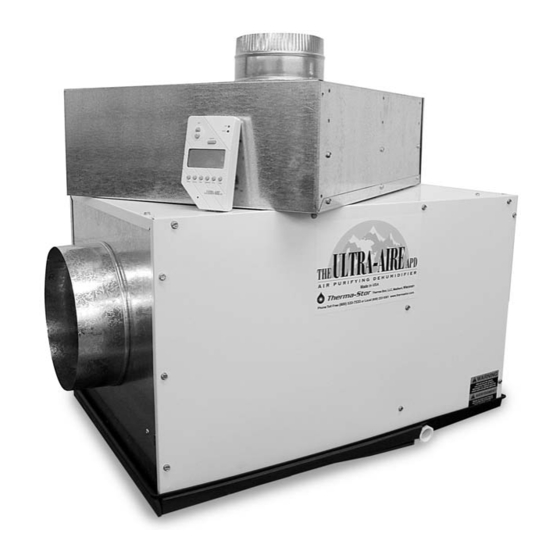

Therma-Stor Ultra-Aire UA-135H Installer's & Owner's Manual

Whole house ventilating dehumidifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
UA-135H • Part No. 4025470 • Serial No.________________________________
Dehumidification
The highly efficient Ultra-Aire 135H dehumidifier utilizes refrigeration
to cool the incoming air stream below its dew point. This cooled and
drier air is used to pre-cool the incoming air stream resulting in a
significant increase in overall efficiency. After the pre-cooling stage,
the processed air is reheated by passing through the condenser coil.
The heat removed by the evaporator coil is returned to the air stream,
resulting in an overall temperature increase of the air leaving the unit.
The Ultra-Aire 135H is controlled by 24 volt remote wired controls. A
variety of controls are available suitable to various applications.
HVAC INSTALLER: PLEASE LEAVE MANUAL FOR HOMEOWNER
© 2006 Therma-Stor LLC
INSTALLER'S & OWNER'S MANUAL
Ultra-Aire 135H Whole House
Ventilating Dehumidifier
Fresh Air Ventilation
Optional fresh outdoor air may be ducted to the unit via a six inch
round duct. This provides fresh air to dilute pollutants and maintain
high oxygen content in the air. The amount of fresh air ventilation can
be regulated by a variety of dampers and controls.
Air Filtration
The Ultra-Aire 135H includes air filtration to improve indoor air quality.
A MERV-11 media filter is standard. An optional MERV-14 deep
pleated 95% media filter is available for optimum air filtration and to
reduce potentially harmful airborne particles. If the optional filter is
chosen, the standard filter operates as a prefilter.
Manual P/N TS-287A 11/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultra-Aire UA-135H and is the answer not in the manual?

Questions and answers

Related Manuals for Therma-Stor Ultra-Aire UA-135H

Summary of Contents for Therma-Stor Ultra-Aire UA-135H

  • Page 1 INSTALLER’S & OWNER’S MANUAL Ultra-Aire 135H Whole House Ventilating Dehumidifier UA-135H • Part No. 4025470 • Serial No.________________________________ Dehumidification The highly efficient Ultra-Aire 135H dehumidifier utilizes refrigeration to cool the incoming air stream below its dew point. This cooled and drier air is used to pre-cool the incoming air stream resulting in a significant increase in overall efficiency.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS /SAFETY PRECAUTIONS & SPECIFICATIONS Table of Contents Safety Precautions ... 3 1.Intended Application ... 4 2.Registrations ... 4 3.Specifications ... 4 4. Installation ... 4 4.1 Installation Checklist ... 4 4.1A Drainage & Trap ... 4 4.1B Filter Box & Fresh Air Ventilation ... 4 4.1C Power Accessibility ...

  • Page 3: Safety Precautions

    Proper adherence to these instructions is essential to obtain maximum benefit from your UA-135H indoor air quality system. READ AND SAVE THESE INSTRUCTIONS • The device is designed to be installed INDOORS IN A SPACE THAT IS PROTECTED FROM RAIN AND FLOODING.

  • Page 4: Intended Application

    Place the UA-135H on supports to raise the base of the unit approximately 4" above the horizontal floor below it. Raising the UA-135H will help the unit drain with gravity flow. Do not place the UA-135H directly on structural building members without vibration absorbers or unwanted noise may result.

  • Page 5: Electrical Requirements

    Therma-Stor LLC offers a family of control devices for use with the UA-135H. The controls are to be located remotely from the unit and located in the space to be conditioned. The controls are low voltage (24 volt) and should be connected to the UA-135H with low voltage wire (thermostat or other appropriate).

  • Page 6: D Ducting For Fresh Air - Option

    Connecting to existing HVAC systems: An optional 10" check damper is available from the factory to prevent reverse flow through the UA-135H. If the UA-135H is ducted to the supply of a high static air handler the check damper may be placed in the UA-135H supply duct.

  • Page 7: F Installation In An Attic With An

    The preferred method of installation is to create a separate return for the UA-135H in a central area of the structure. Duct the supply of the UA-135H to the air supply of the existing HVAC system. Connect an insulated duct from outside to the 6"...

  • Page 8: A Humidity/Fan Control Panel Without Fresh Air Ventilation Or Damper

    Outside air is introduced whenever fan is “ON.” Manual operation of fan filter switch controls outside air and ventilation. Since the fan operates whenever the UA-135H is dehumidifying outside air will be introduced. For humidity control operation refer to section 4.8.

  • Page 9: Setting The Time

    FOR HVAC INSTALLER ONLY panel receives 24Vac from the UA-135H. If 24Vac is present at the control panel, reset the timer by pressing the reset button at the bottom center of the timer face. The reset button is the small recessed button with an R beneath it located below the 1...7 and h buttons.

  • Page 10: Attention Installer

    ATTENTION INSTALLER WIRE THE UNIT AND CONTROL PACKAGE AS SHOWN IN THE DIAGRAM BELOW WARNING: DO NOT allow the yellow lead from the unit to contact the red lead or the white lead from the unit or damage to the transformers will result. Do not direct connect the white lead on the unit to the violet lead on the ventilation control or damage to the transformer will result.

  • Page 11: Deh 2000 Digital Control

    FOR HVAC INSTALLER ONLY 5. (DEH 2000) DIGITAL CONTROL Installation Instructions 5.1 Specifications Model: 4024539 Electrical: 24 VAC Humidity Range: 20 – 90% RH Humidity Accuracy: +/- 4% Output: 3 Amps 24 VAC 5.2 Installation This control panel must be installed in the conditioned space and in accordance with all applicable codes and standards.

  • Page 12: C Location

    FOR HVAC INSTALLER AND HOMEOWNER WARNING Warning: Connecting the white wire to the control terminal without use of a motorized damper could create a short resulting in damage to the transformer. The white wire controls the motorized damper that can be installed into a fresh air duct.

  • Page 13: E Setting Relative Humidity Setpoint

    FOR HVAC INSTALLER AND HOMEOWNER 5.3E Setting Relative Humidity Set point The relative humidity Set point operates the dehumidifier function of the Ultra-Aire. It has no effect on any other function of the unit. The control senses the ambient relative humidity of the space in which it is located.

  • Page 14: K Ventilating Or Dehumidifying To Control Indoor Relative Humidity Levels

    FOR HVAC INSTALLER AND HOMEOWNER 5.3I Intermittent or Programmed Ventilation With the damper in program mode (denoted by “Pr” when setting the damper operation) the system will operate the ventilation function according to the current ventilation program. There are 4 programs available for ventilation Monday through Friday.

  • Page 15: Service

    Only qualified service people should service this unit. 6.1 Technical Description The UA-135H uses a refrigeration system similar to an air conditioner's to remove heat and moisture from incoming air, and add heat to the air that is discharged. Hot, high-pressure refrigerant gas is routed from the compressor to the condenser coil (See Figure 1).

  • Page 16: Refrigerant Cleaning

    This switch should be installed in series with the field wire that connects the blue (#5) lead from the UA-135H to the blue (#5) lead on the control panel. If the pump fails, this switch opens the compressor control circuit and stops water production before the reservoir overflows.

  • Page 17: Wiring Diagram

    WIRING DIAGRAMS UA-135H With Humidity/Fan Control (4024155) UA-135H With DEH 2000 Digital Controller (4024539) UA-135H W/Ventilation Timer/ Humidity/Fan Control (4024125) Ultra-Aire 135H Installer’s & Owner’s Manual...

  • Page 18: Optional Parts List

    OPTIONAL PARTS LIST Item Part No. 4024125 4024155 4024539 4025287 4022220 4024377 4024369 4024370 4020646 4025463 Description Control Panel Assembly, Ventilation Timer & Humidity Control Control Panel Assembly, Humidity/Fan DEH 2000 Digital Controller Filter Box Condensate Pump Kit, External Optional External Insulation Kit (not shown) 2”x20”x24”...

  • Page 19: Service Parts List

    SERVICE PARTS LIST Item Part No. 4021589 4026827 4026828 4022484 4027108 4021396 4021470 4021648 4021395 4025076 4020924 4025224 4025087 4022219 4022487 4017414 not shown 4025249 not shown 4024368 not shown 4025082 not shown 4025084 not shown 4025086 not shown 4025242 not shown Description Capillary Tube, .059"...

  • Page 20: Warranty

    ULTRA-AIRE 135H Dehumidifier Limited Warranty WARRANTOR: Therma-Stor LLC PO Box 8680 Madison, WI 53708 Telephone: 1-800-533-7533. WARRANTY: This warranty covers the Ultra-Aire 135H Dehumidifier and extends only to the original residential end-user of the Ultra-Aire 135H Dehumidifier, and may not be assigned or transferred. Year One - 100% parts and labor (all components).
  • Page 21 PO Box 8680 • Madison, WI 53708 Phone: 608-222-5301 • Fax: 608-222-1447 Web: www.thermastor.com • Email: sales@thermastor.com Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Therma-Stor LLC.
