4201 LIEN RD. • MADISON, WI 53704

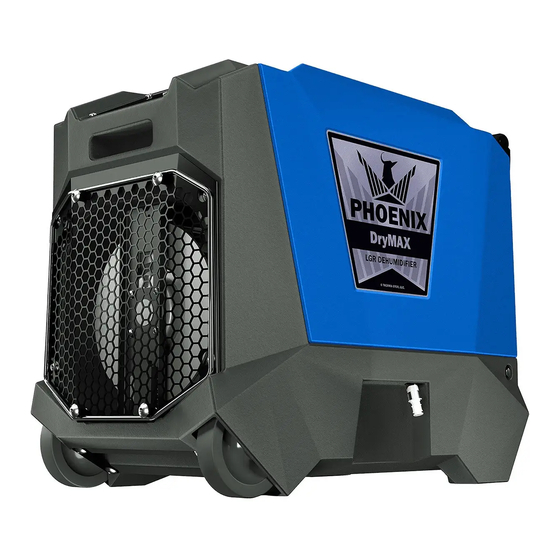

DRYMAX BLE | LGR DEHUMIDIFIER
The Phoenix DryMAX BLE BLE LGR
Dehumidifier
•
Built in Bluetooth
•
LGR Capacity - Removes moisture even in dry
conditions for deep drying.
•
Energy Efficiency - Removes 80 pints at AHAM while
drawing only 5.7 amps.
•
Smallest Footprint Large Category Dehumidifier.
•
Slide Out Handle with Recessed Wheels for Easy
Maneuverability and Compact Storage.
•
Integrated Cord and Hose Management for
Transportation and Storage.
•
Easy to read, industry graphical control panel.
•
Status Light Indicator – Tell at a Glance What
Operating Mode the Unit is in.
•
Integrated, Superior Stacking for Transportation and
Storage.
•
170 CFM - Optimized process air speeds drying and
provides static pressures for ducting.
•
Plastic Housing - Rugged roto-molded housing resists
dents and scratches
•
Outlet Ducting - 10" lay flat exhaust.
•
Pleated Media Air Filter – MERV 10
•
Lighted cord - Easy to determine power to the unit.
Specifications subject to change without notice.
OWNER'S MANUAL
Installation, Operation & Service Instructions
– READ AND SAVE THESE INSTRUCTIONS –
We've added Bluetooth functionality to DryMAX. You can
now stream all of your psychrometric data by Bluetooth to
the FREE DryLINK app or an app you may already use for
your drying jobs. Go to https://usephoenix.com/drylink/
ecosystem/ for more information on the DryLINK Ecosystem.
The feedback on the stacking of the AirMAX was so positive
we made sure to build it into the Phoenix DryMAX BLE.
We've also added an advanced graphical control panel
which puts all the information on homescreen in an easily
understandable format.
A new Status Bar is located at the top of the new control
panel to give you instant feedback about the dehumidifier
from across the room.
Remove only four fasteners and you have easy access to
service the unit.
Phoenix DryMAX BLE
Part No. 4038500 (RED)
4038550 (BLUE)
617B (Green)
Patent: thermastor.com/patents
USEPHOENIX.COM | 800-533-7533
1
Phoenix now offers
this unit in both
Red and Blue
TS-1182
06/23 Rev. C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHOENIX DRYMAX BLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Therma-Stor PHOENIX DRYMAX BLE

Summary of Contents for Therma-Stor PHOENIX DRYMAX BLE

  • Page 1 LGR Capacity - Removes moisture even in dry The feedback on the stacking of the AirMAX was so positive conditions for deep drying. we made sure to build it into the Phoenix DryMAX BLE. • Energy Efficiency - Removes 80 pints at AHAM while drawing only 5.7 amps.

  • Page 2: Table Of Contents

    • If used in a wet area, plug it into a GROUND FAULT Patent: thermastor.com/patents INTERRUPTER. 3 Operation • DO NOT use the Phoenix DryMAX BLE as a bench or table. Place dehumidifier inside structure, place condensate • It must always be used in the horizontal position.

  • Page 3: Electrical Requirements

    3.2 Electrical Requirements Light Bar = Pulsing The Phoenix DryMAX BLE plugs into a common grounded outlet on a 15 amp circuit. It draws 5.7 amps at 80°F, 60% RH. If used in a wet area, a ground fault interrupter (GFI) is required.
  • Page 4 3.3.8 Condensate Removal Press the button to remove condensate manually from the reservoir. The Phoenix DryMAX BLE is equipped with an internal condensate pump to remove the water that is condensed during dehumidification. This allows the condensate to be 3.3.5 Dashboard pumped up to 23 feet with the attached hose.
  • Page 5 3.3.11 Shut Down Sequence/Power Down time 3.3.13 Job Hours Press the Set button to adjust the Power Down Time in one Press and hold the key for three seconds to reset the job minute increments ranging from 3 – 20 minutes. hours from any screen.
  • Page 6 3.3.16 Bluetooth 3.3.19 Humidistat Mode The Bluetooth functionality comes from the factory set to The default mode is Humidistat “Off” “On”. In the on position the DryMAX BLE is capable of Press the Set button to toggle the Humidistat Mode On/Off. transmitting data and receiving commands using the Phoenix DryLINK app or other compatible apps.

  • Page 7: Condensate Removal

    UUID: The unique identifier for the Bluetooth Radio 3.4 Condensate Removal When the dehumidifier is plugged in it will enter stand-by The Phoenix DryMAX BLE is equipped with an internal mode. condensate pump to remove the water that is condensed during dehumidification.

  • Page 8: Purge Button

    CAUTION: Do not operate unit without the top cover in place. 4.1 Air Filter The Phoenix DryMAX BLE is equipped with a pleated media air filter that must be checked regularly. The standard filter is a MERV-10 high efficiency filter. Operating the unit with 5.1 Running Diagnostics...

  • Page 9: Technical Description

    Press the Set button to start the Display test. 5.1.7 Diagnostic Mode - Refrig. Test 5.2 Technical Description The Phoenix DryMAX BLE uses a refrigeration system similar to an air conditioner’s to remove moisture from incoming air and to add heat to the air that is discharged.

  • Page 10: Troubleshooting

    the incoming air and evaporates. The evaporator operates 3. Defective compressor capacitor in a flooded condition, which means that all the evaporator 4. Defective compressor overload tubes contain liquid refrigerant during normal operation. A 5. Defective compressor flooded evaporator should maintain constant pressure and 6.

  • Page 11: Air Mover

    5.3.1 Air Mover 5.3.3 Condensate Pump The internal condensate pump removes water that collects in the reservoir. To replace the condensate pump: 1. Unplug the unit 2. Remove the top housing (3/8” driver) 3. Cut cable ties and unplug pump connector The air movement is created by an impeller.

  • Page 12: Float Safety Switch

    Replace the float switch 6 Options & Accessories 4037046 Air Filter, Pleated 9” x 12” x 1” MERV-10 4024935 Lay-Flat Duct 10” Round x 250’ Roll 4041595 DryMAX Bluetooth Board Upgrade To order, contact Therma-Stor LLC at 1-800-533-7533. USEPHOENIX.COM | 800-533-7533...

  • Page 13: Wiring Diagram

    7 Wiring Diagram BLK (CORD) WHT (CORD) WHT-12 WHT-6 RED-3 LINE BLK-4 COMPRESSOR CAPACITOR BLK-5 BLK-13 YEL-2 POWER BOARD WHT-10 CONTROL BOARD RH-OUT RH-IN EVAP FLOAT FLOAT SWITCH TEMP/RH TEMP/RH SENSOR SENSOR THERMISTOR PROBE PUMP BLK-5 BLOWER BLK-11 WHT-10 BLK-13 BRN-9 BLOWER CAPACITOR...

  • Page 14: Service Parts

    8 Service Parts 4042065 Condensate Pump 4041588 4037719 Micro Channel Condenser Float Switch 4039814 Compressor 4034716-04 Evap Thermistor 4041809-01 Humidity/Temp Sensor 4036943 4024916 Handle Bushing RH Condensate Hose 4036945 4036942 Handle Bracket RH Handle Weldment 4037847 Handle Bushing LH 4037038 4037848 Power Cord Handle Bracket LH...

  • Page 15: Warranty

    Madison, WI 53704 Telephone: 1-800-533-7533 Who Is Covered: This warranty extends only to the original end-user of the Phoenix DryMAX BLE dehumidifier and may not be assigned or transferred. Year One: Therma-Stor LLC warrants that, for one (1) year the Phoenix DryMAX BLE dehumidifier will operate free from any defects in materials and workmanship, or Therma-Stor LLC will, at its option, repair or replace the defective part(s), free of any charge.
