Therma-Stor Phoenix R200 Owner's Manual

Owner's Manual — Phoenix R200 50Hz LGR Dehumidifier
The Phoenix R200 50Hz is a compact, energy efficient LGR
dehumidifier that removes over 55 liters per day (AHAM)
while drawing only 3.7 amps of electricity. The R200
50Hz outperforms the larger competitive dehumidifiers
by removing more water, providing larger grain depression
and consuming less power. The proven LGR design is
surrounded by a durable roto-molded high impact plastic
to create a dehumidifier that is smaller and lighter than
competitive units.

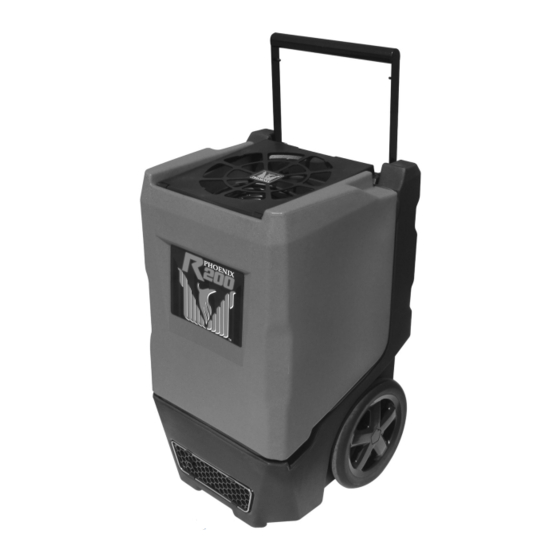

The Phoenix R200 50Hz LGR Dehumidifier
Patented Bypass Technology - Increased performance over a
wide temperature range.
Capacity - The Phoenix R200 50Hz removes over 55 liters per
day at AHAM (26.7ºC/60%RH).
Energy Efficiency - Draws only 3.7 amps and removes
2.8 liters/kw.
Compact Design - Smaller, 85cm x 51cm x 51cm,
and only 47 kg.
Motorized Impeller - 442 m /hr airflow; Faster drying and
superior static pressure for ducting.
More Grain Depression - The driest air from an LGR finishes
jobs quicker versus a conventional refrigerant dehumidifier.
Focused Airflow - Patented focused outlet directs air downward
towards the wettest surface.
Multiple Ducting Options - 30cm intake, 25cm exhaust.
Plastic Housing - Rugged roto-molded housing.
Solid State Controls - Easy to read and operate.
Protected Condensate Hose - Located under the top cover.
Quick connect, cannot catch or be damaged on obstructions.
Telescoping Handle - A heavy-duty retractable handle for ease
of transport and reduces space for storage and stacking.
Recessed 30 cm Wheels - For greater maneuverability on the
job site and efficient storage. Rolls over obstacles with ease.
Pleated Media Air Filter - A MERV-11 filter is standard.
Stacking - Reduces space for ease of stacking and storage.
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
4201 Lien Rd • Madison, WI 53704
Installation, Operation & Service Instructions
Read and Save These Instructions
3
In addition to the performance benefits and tough compact
size, the R200 50Hz has patented bypass technology,
increased airflow, multiple ducting options, and a pleated
media filter. The R200 50Hz is the latest member of the
Phoenix line of LGR dehumidifiers; the most effective and
versatile drying devices made.
Patented
BYPASS
Phoenix R200 50Hz
Part No. 4028250
U.S.Patent 7,246,503
1
www.UsePhoenix.com • sales@UsePhoenix.com
TS-486
02/17 Rev. A
