Anybus
Tunnel Gateway
1.
Insert the cable wires to the terminal block and tighten the wire clamp screws.
2.
Connect the terminal block to the Tunnel Gateway.
3.
Connect the Tunnel Gateway to a power supply.
4.
Turn on the power supply.
4.5. DIN Rail Demount
Before You Begin
Have a flat-blade screwdriver, size 5.5 mm, available.
Procedure

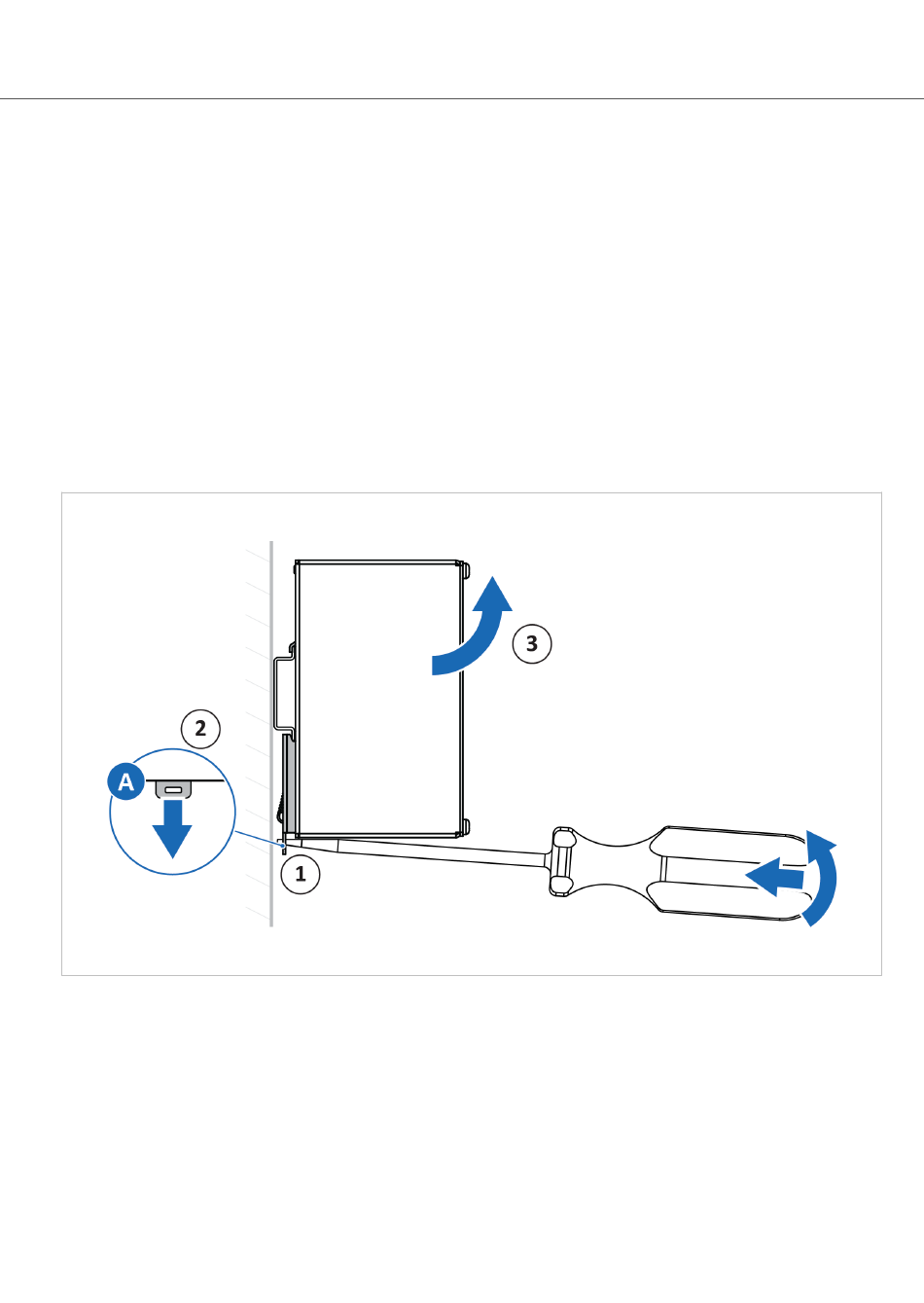

Figure 5. Release and unhook the Tunnel Gateway
To remove the Tunnel Gateway from the DIN rail
1.
Insert the screwdriver into the DIN rail clip tab A.
2.
To release the DIN rail clip, pull and hold tab A downwards.
3.
Unhook the Tunnel Gateway from the DIN rail.
Page 12 of 20
DIN Rail Demount
SP3196 Version 1.0
