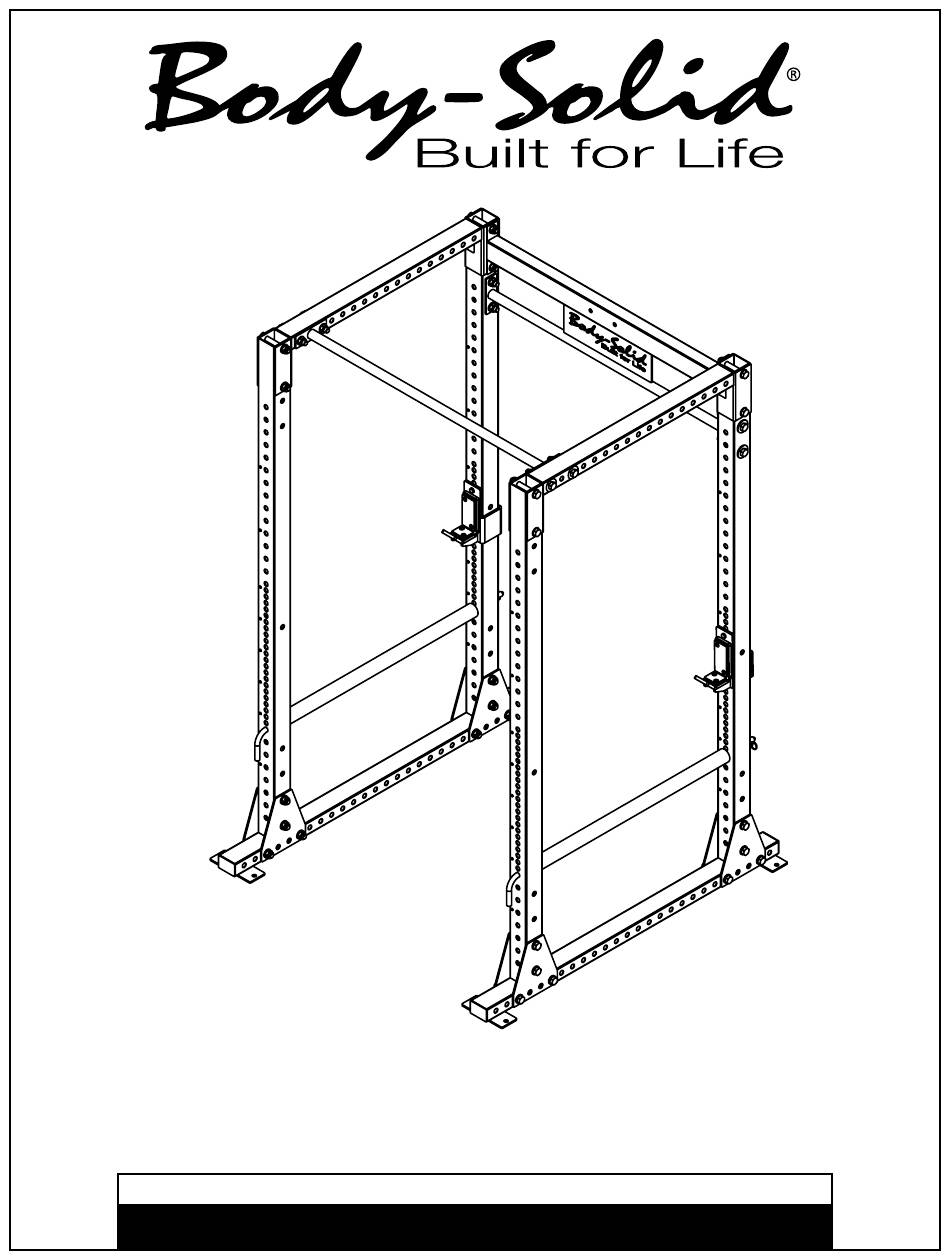

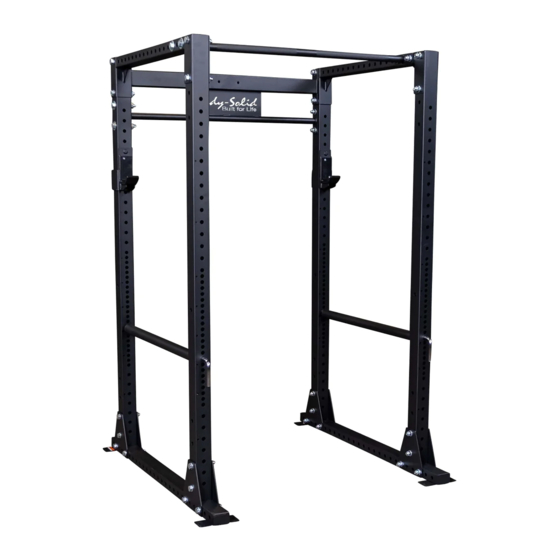

- Page 1 GPR400 & A s s e m b l y I n s t r u c t i o n s O W N E R ’ S M A N U A L V. GPR400-20190813...
- Page 2 W a r n i n g , S a f e t y & M a i n t e n a n c e ...
-
Page 3: Table Of Contents
T a b l e o f C o n t e n t s • SAFETY INSTRUCTIONS......PAGE 4 • PREPARATION..........PAGE 5 • HARDWARE ILLUSTRATION......PAGE 6 • PART / HARDWARE LIST....... PAGE 7 • ASSEMBLY INSTRUCTIONS......PAGE 8 • EXPLODED VIEW.......... -
Page 4: Safety Instructions
Before beginning assembly, please take the time to read the instructions thoroughly. 1. Model Number 2. Place of Purchase m Read each step in the assembly instructions and 3. Serial Number (S/N) follow the steps in sequence. Do not skip ahead. 4. Part # and Description If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment. m Assemble and operate the GPR400 on a solid, level surface. Locate the unit a few feet from the walls or furniture to provide easy access. -
Page 5: Preparation
P r e p a r a t i o n Thank you for purchasing the GPR400. This Product is part of the Body-Solid line of quality strength training machines, which lets you target specific muscle groups to achieve better muscle tone and overall body conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly. Required Tools Assembly Tips The basic tools that you must obtain before assembling Read all “Notes” on each page before beginning each the GPR400 include but are not limited to: step. While you may be able to assemble the GPR400 using the illustrations only, important safety notes and other m Standard Wrench Set tips are included in the text. -
Page 6: Hardware Illustration
G P R 4 0 0 H a r d w a r e I l l u s t r a t i o n Part #1 HEX HEAD BOLT M16x110mm QTY. -
Page 7: Part / Hardware List
G P R 4 0 0 P a r t s & H a r d w a r e L i s t Part# Description BASE FRAME UPRIGHT TOP SIDE FRAME CHIN UP BAR TOP REAR FRAME STEEL PLATE PIPE CHROME PIN RIGHT J-CUP... -
Page 8: Assembly Instructions
S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Finger tighten all hardware in this step. DO NOT wrench tighten until instructed. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tightened to fully go on. - Page 9 S T E P Note #1 Front of Rack Above shows Step 1 assembled and completed.
- Page 10 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Wrench tighten ALL hardware at the end of STEP 2C. Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
- Page 11 S T E P Above shows Step 2 assembled and completed.
- Page 12 S T E P Be careful to assemble all components in the sequence they are presented. NOTE: Some components may be pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench tightened to fully go on. Adjustable J Cups and Pipe &...
- Page 13 S T E P Above shows Step 3 assembled and completed.
- Page 14 N o t e s...
-
Page 15: Exploded View
G P R 4 0 0 E x p l o d e d V i e w... -
Page 16: Contact Page
GPR400 PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW 015296-��-��-����-���� S/N # 1900 S. Des Plaines Ave. Forest Park, IL 60130 Phone:(708)427-3555 Fax:(708)427-3556 Hours: M-F 8:30 - 5:00 CST www.bodysolid.com Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product.
