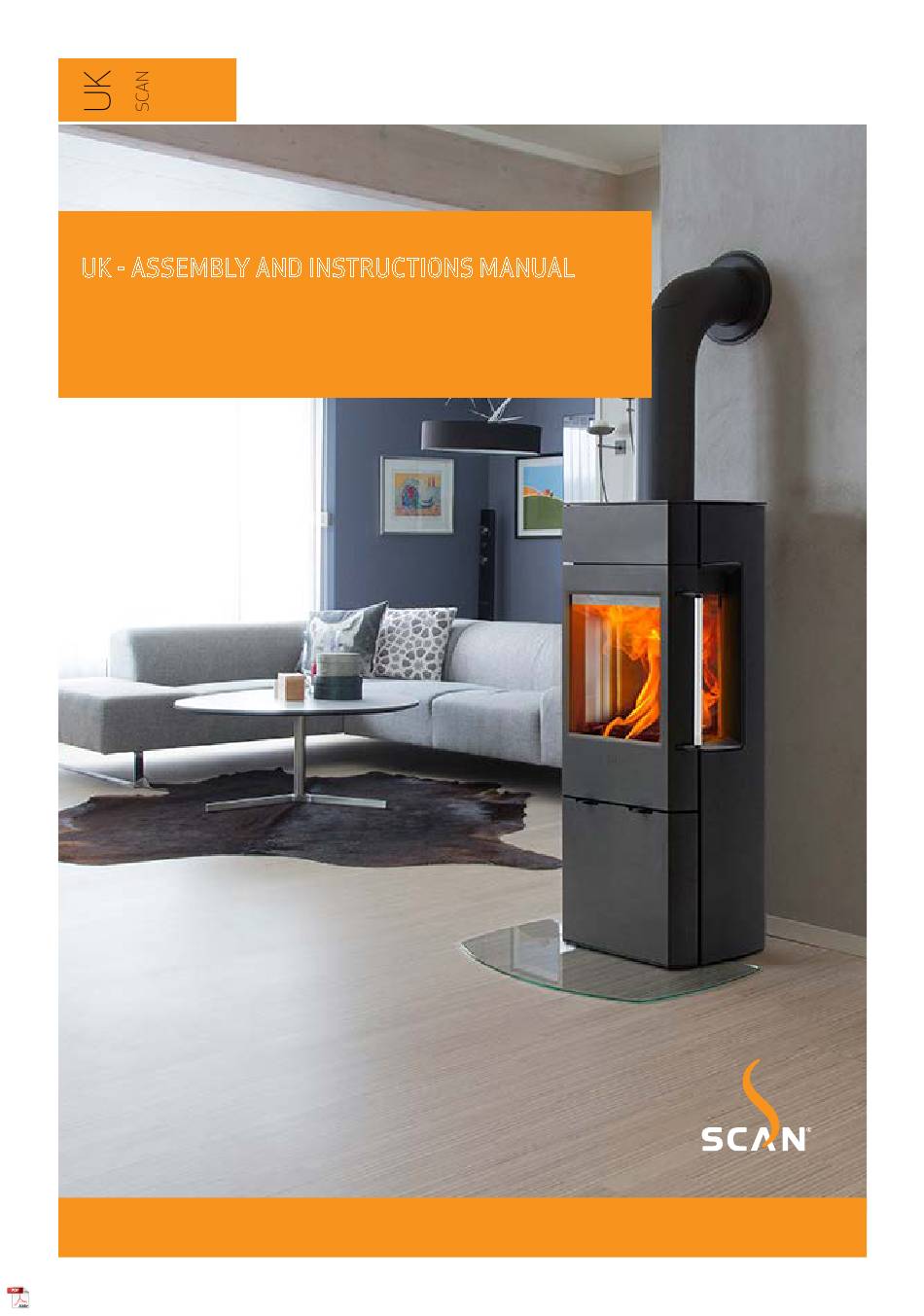

- Page 1 UK - ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 41 ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 41...

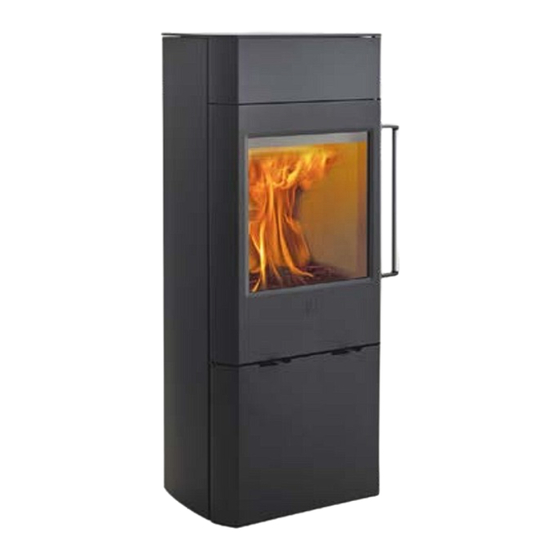

- Page 2 CONGRATULATIONS ON YOUR NEW SCAN WOOD-BURNING STOVE You have purchased a product by one of Europe’s leading manufacturers of wood-burning stoves, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
-
Page 3: Table Of Contents
TABLE OF CONTENTS ¬ ¬ TECHNICAL DATA Installation Dimension sketch Safety Type plate The clean air act 1993 and smoke control areas Product registration number Technical data and dimensions ¬ ¬ ASSEMBLY Tools needed for mounting of the stove Positioning the stove at a non-flammable wall Loose parts Distance to furniture Additional accessories... -
Page 4: Technical Data
Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed. -
Page 5: Technical Data And Dimensions
TECHNICAL DATA AND DIMENSIONS Steel plate Scan 41-1 - Test in compliance with EN 13240 Cast iron Materials CO Emission at 13% O 0,08 % Galvanised sheet Vermicolite CO Emission at 13% O 975 mg/Nm Surface treatment Senotherm Dust @ 13% O <20 mg/Nm... -
Page 6: Dimension Sketch
DIMENSION SKETCH SCAN 41-1 AND 41-2 Centre rear outlet Height to the beginning of the connecting piece at top outlet Fresh air intake bottom Fresh air intake at the back of the stove All measurements are in millimeters... -
Page 7: Type Plate
TYPE PLATE All Scan wood-burning stoves are fitted with a type plate that specifies the approval standards and the distance to flammable materials. The type plate is located at the rear of the stove. Type plate Scan 41-1 (without side windows) -
Page 8: Assembly
Large shaped floor plate in glass or steel ¬ Adjustment key for height adjustment DISPOSAL OF PACKAGING Your Scan stove may come supplied with the following packaging: The wood packaging can be reused and after final use can be incinerated as a CO neutral Wood packaging product or sent for recycling. -
Page 9: Closed Combustion System
EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chimney sweep, for advice. These experts will also let you know if your chimney needs renovating. -
Page 10: Safety Distance
DISTANCE TO FLAMMABLE WALL PROTECTED BY A FIRE WALL These distances apply for an insulated flue pipe all the way down to the stove. 41-1 (without side windows) 41-2 (with side windows) Flammable material Fire wall, e.g. 50 mm Jøtul Firewall, 110 mm brick or other material with corresponding fireproof and... - Page 11 DISTANCE TO FLAMMABLE MATERIALS, WITH UNINSULATED FLUE PIPE 41-1 (without side windows) 41-2 (with side windows) Parallel installation Parallel installation 41-1 (without side windows) 41-2 (with side windows) 45° corner installation 45° corner installation DISTANCE TO FLAMMABLE MATERIALS, WITH INSULATED FLUE PIPE These distances apply for an insulated flue pipe all the way down to the stove.
-
Page 12: Removal Of Packaging
REMOVAL OF PACKAGING Check that the stove is not damaged before starting to install it. Remove the screws securing the stove to the pallet Remove the protection between the baffle plates, before taking the stove into use! Put back the upper plate on the pins, as the protection pushes the plate upwards... -
Page 13: Height Adjustment Of Stove
HEIGHT ADJUSTMENT OF STOVE The stove has four adjustment screws under the stove. Use the adjustment screws and the adjustment key (Accessories) to get the stove to stand straight and level. If the floor plate is used, the stove must be adjusted so that the plate can be placed under the front of the stove. NOTICE: It is very important that the stove is level to allow an optimal function of the door. - Page 14 FITTING THE FLUE CONNECTION PIECE IN THE REAR OUTLET The stove is prepared from the factory for top outlet. The connecting piece is placed loosely in the top outlet of the stove. The gasket for the connecting piece and the screws for fastening the connecting piece are in the stove’s ash drawer.
-
Page 15: Load-Bearing Foundation
MOUNTING THE UK - SCREW UK ONLY! IMPORTANT! Scan 41 has been recommented as suitable for use in smoke control areas when burning wood logs and when fitted with a mechanical stop to prevent secondary air control closure beyond the 35mm open position. -
Page 16: Cb-Technology (Clean Burn)
INSTRUCTIONS FOR USE CB-TECHNOLOGY (CLEAN BURN) The stove is equipped with CB technology. In order to ensure optimal combustion of gases released during the combustion process, air passes through a specially developed system of channels. The heated air is conducted into the combustion chamber through the holes in the rear lining of the combustion chamber and at the baffle plates. - Page 17 INSTRUCTIONS FOR USE Baffle plates Ash drawer Primary air Secondary air Adjustment of air supply, primary and secondary damper CB-technique 100-0% 0-100% SETTINGS FOR NORMAL LOAD: Primary air: 0 - 30% Secondary air: 50 - 70%...
-
Page 18: Environmentally-Friendly Firing
LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. See our video about correct firing on www.scan-stoves.com or scan the QR-code. Please note... -
Page 19: Continuous Operation
CONTINUOUS OPERATION It is important to obtain as high a temperature as possible in the combustion chamber. This results in best possible use of the stove and fuel, as well as achieving clean combustion. In this way you will avoid build-up of soot on the combustion chamber lining and glass pane. -
Page 20: General Notes
GENERAL NOTES PLEASE NOTE! Parts of the wood-burning stove, especially the outer surfaces, become hot during use. Due care should be exercised. ¬ Never empty ashes into a flammable container. Ashes can contain glowing embers long after you finish operating the stove. ¬... -
Page 21: Selecting Wood/Fuel
HANDLING OF THE FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st. -
Page 22: Sweeping The Chimney And Cleaning The Stove
Clean your wood-burning stove by wiping it down with a dry, lint-free cloth. If the paint finish gets damaged, you can purchase repair paint in spray form from your Scan dealer. As slight differences in colour shade are possible, we recommend you spray a larger area to achieve a natural blend. For best results, apply repair spray when the stove is warm enough for you to just keep your hand on it, but no hotter. -
Page 23: Removal Of Baffle Plates And Combustion Chamber Lining
¬ Remove the rear cover Upper baffle plate Lower Upper Holder for baffle plate baffle plate upper baffle plate SCAN 41-1 SCAN 41-2 (without side windows) (with side windows) -
Page 24: Cleaning The Glass
CLEANING THE GLASS Our wood-burning stoves are designed to prevent serious soot build-up on the glass. The best way to achieve this is to make sure you have a good supply of combustion air. It is also very important that the wood is dry and the chimney correctly dimensioned. Even if you operate the stove in accordance with our instructions, a slight film of soot may still accumulate on the glass. - Page 25 TROUBLESHOOTING SMOKE ESCAPING ¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬ Vacuum in room ¬...
- Page 26 You must quote your stove‘s product registration number when you contact us or your authorized Scan dealer with a warranty claim. The warranty covers all parts which in the opinion of Scan A/S require repair or replacement due to manufacturing or construc- tion error The warranty applies to the original purchaser of the product only, and is not transferable (except on prior sale).
- Page 27 NOTES...
- Page 28 Product registration number Quote this number at all enquiries Edition: UK 90041500 10056030-P02 SCAN A/S Damsbovej 1 DK-5492 Vissenbjerg www.scan-stoves.com 11.11.2021...
