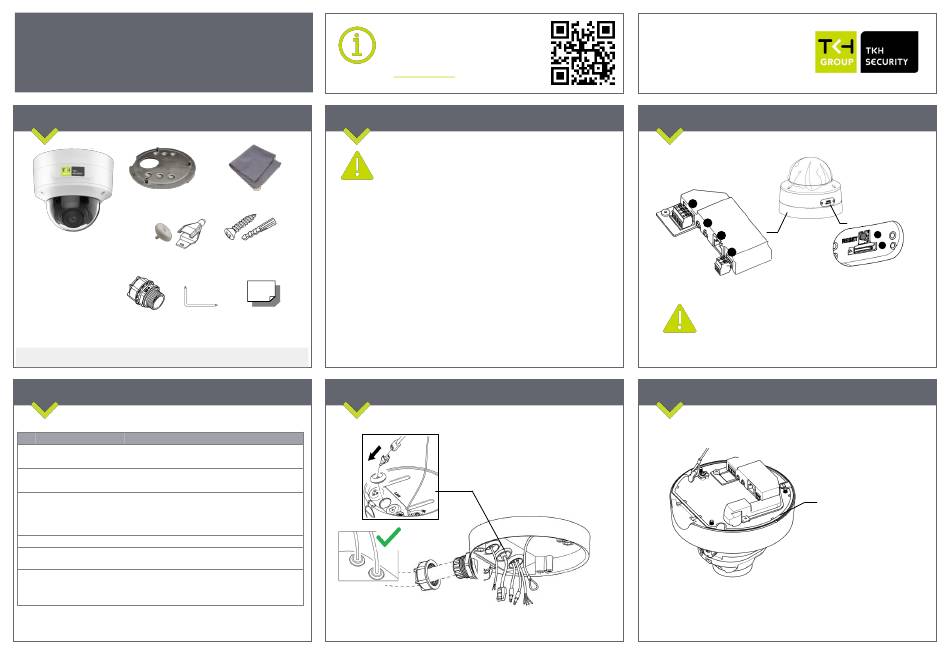

TKH security FD2026M Quick Start Manual

FD2026M

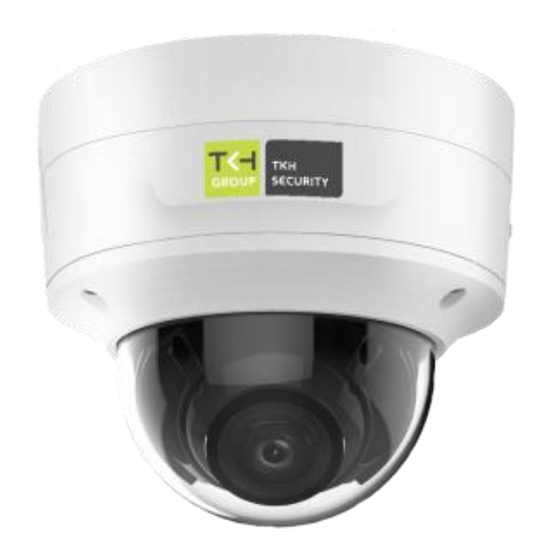

6MP IP Fixed dome camera 5x motor zoom
Quick Start Guide
Unpack
Mounting Plate
Camera Unit
CAT-6 RJ45 conduit
& Pin pusher
Conduit Security Torx
Subject to modification. Actual product and accessories may differ in appearance.
Connector Definition
No. Connector Definition
1 Alarm I/O Alarm I/O connection
2 Audio I/O Line In and Line Out connection
RJ-45 Port
(Contact Siqura for a
3 For network and PoE connections
compatible PoE
injecter.)
4 Power(DC 12V) Power Connection
To restore camera to factory defaults, power
5 Reset Button
up with Reset button pressed for at least 10s.
Insert the SD card into the card slot to store
6 Micro SD Card Slot videos and snapshots. Do not remove the
SD card when the camera is powered on.
Table 1 Connector definition
© TKH Security B.V. 2024 | Version 1 (20240529) | FD2026M-QS-EN
Find additional manuals, the
datasheet, the EU Declaration of
Conformity, and the latest firmware
for this product at:
tkhsecurity.com
Caution installation shall be performed by qualified personnel
only. Installation shall be in accordance with local procedures.
The camera contains batteries.
Battery replacement shall not be applied in view of the risk of
explosion. Dispose of used batteries according to the
Duster
instructions.
For "PoE" input connection, use only with UL listed I.T.E. with
"PoE" output. Description for the "PoE" is intended to be
connected to not exposed (outside plant) networks or
equivalent statement in installation instructions.
Screws(4x) &
Plastic Screw
Anchors (4x)
Quick Start Guide
Installation Notices
Camera Cabling
Figure 2 Cabling
Connectors
1
2
3
4
Figure 1 Camera Connectors
To restore camera to factory defaults, power up with
Reset button pressed for at least 10s.
Waterproof Notice
Please make sure the
rubber is properly aligned
during installation.
Figure 3 Rubber
5
6
