TKH security FD2002v2M Quick Start Manual

FD2002v2M

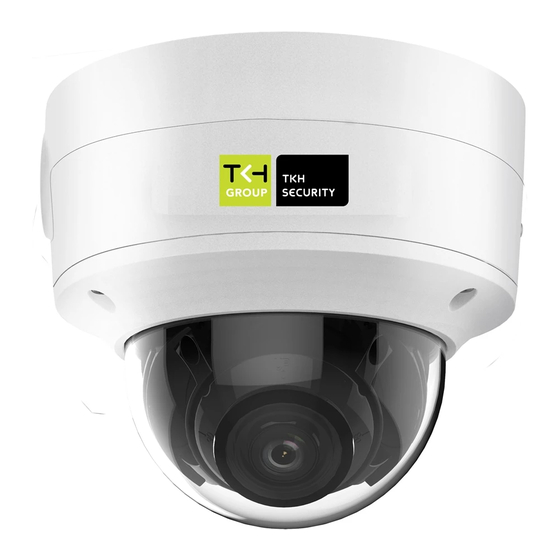

2MP Vandal Fixed Dome Camera
Quick Start Guide
Unpack
Mounting Plate
CAT-6 RJ45 conduit
& Pin pusher
Camera Unit
Conduit Security Torx
Subject to modification. Actual product and accessories may differ in appearance.
Connector Definition
No. Connector Definition
1 Alarm I/O Alarm I/O connection
2 Audio I/O Line In and Line Out connection
RJ-45 Port
(Contact Siqura for a
3 For network and PoE connections
compatible PoE
injecter.)
4 Power(DC 12V) Power Connection
Press the button with a proper tool for at
5 Reset Button
least 20 seconds to restore the system.
Insert the SD card into the card slot to store
6 Micro SD Card Slot videos and snapshots. Do not remove the
SD card when the camera is powered on.
Table 1 Connector definition
© TKH Security B.V. 2021 | Vision 1 (20211123) | FD2002v2M QSG
Find additional manuals, the
datasheet, the EU Declaration of
Conformity, and the latest firmware
for this product at:
tkhsecurity.com
CAUTION INSTALLATION SHALL BE PERFORMED BY
QUALIFIED PERSONNEL ONLY. INSTALLATION SHALL BE IN
ACCORDANCE WITH LOCAL PROCEDURES. THE CAMERA
CONTAINS BATTERIES. DO NOT REPLACE IN RISK OF
EXPLOSION.
Duster BATTERY REPLACEMENT SHALL NOT BE APPLIED IN VIEW
OF THE RISK OF EXPLOSION. LE REMPLACEMENT DES
PILES NE DOIT PAS
D'EXPLOSION. DISPOSE OF USED BATTERIES ACCORDING
TO
BATTERIES
Screws(4x) &
INSTRUCTIONS..
Plastic Screw
FOR "PoE" INPUT CONNECTION, USE ONLY WITH UL
Anchors (4x)
LISTED I.T.E WITH "PoE" OUTPUT. DESCRIPTION FOR THE
"PoE" IS INTENDED TO BE CONNECTED TO NOT EXPOSED
(OUTSIDE
STATEMENT IN INSTALLAION INSTRUCTIONS.
Quick Start Guide POUR LA CONNEXION DâÇÖENTREE "PoE", UTILISER
UNIQUEMENT AVEC UN I.T.E. LISTE AVEC UNE SORTIE
"PoE". LA DESCRIPTION DE "POE" EST CONÇUE POUR
ÊTRE CONNECTÉE À DES RÉSEAUX OR NON ÉNONCÉS
(INSTALLATIONS
INSTRUCTIONS D'INSTALLATION DE L'INSTALLATION.
Installation Notices
ÊTRE APPLIQUÉ AU RISQUE
THE INSTRUCTIONS. METTRE AU REBUT
USAGÉES CONFORMÉMENT
PLANT) NETWORKS OR EQUIVALENT
EXTÉRIEURES), DANS
Camera Cabling
Figure 2 Cabling
Connectors
1
2
LES
3
AUX
4
Figure 1 Camera Connectors
RESET BUTTON TAKES 10 SECONDS TO BE
EFFECTIVE. IT
DEFAULT SETTINGS, INCLUDING IP ADDRESS,
USERNAME AND PASSWORD.
LES
Waterproof Notice
Figure 3 Rubber
5
6
WILL RESTORE FACTORY
Please make sure the
rubber is properly aligned
during installation.
