TKH security FD2002v2F Quick Start Manual

FD2002v2F

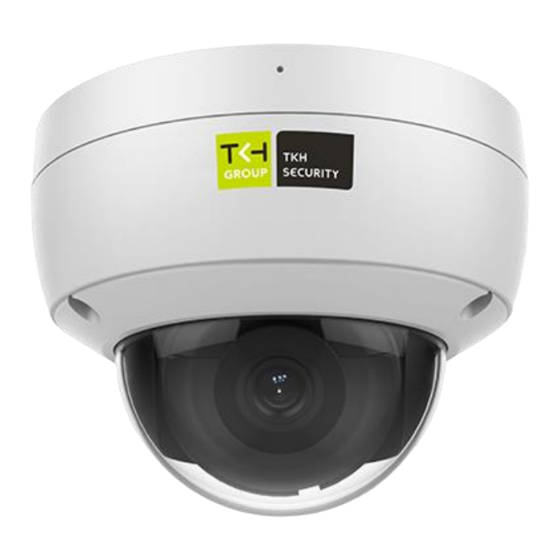

2MP Fixed Dome Camera
Quick Start Guide
Unpack
Subject to modification. Actual product and accessories may differ in appearance.
Pan / Tilt
© TKH Security B.V. 2022 | Version 1 (20220815) | FD2002v2F QSG
Find additional manuals, the
datasheet, the EU Declaration of
Conformity, and the latest firmware
for this product at:
tkhsecurity.com
Installation Notices
Caution installation shall be performed by qualified
personnel only. Installation shall be in accordance with
local procedures. The camera contains batteries.
Battery replacement shall not be applied in view of the
risk of explosion. Dispose of used batteries according to
the instructions.
For "PoE" input connection, use only with UL listed i.t.e
with "PoE" output. Description for the "PoE" is intended
to be connected to not exposed (outside plant) networks
or equivalent statement in installation instructions.
Duster
TILT
UNSCREW
RESET
to TILT !
PAN
Reset button takes 10 seconds to be effective. It will
restore factory default settings, including ip address,
username and password.
Reset button
Camera cabling
AUDIO IN
AUDIO IN GND
AUDIO OUT
AUDIO OUT GND
ALARM IN
ALARM IN GND
ALARM OUT
ALARM OUT GND
PoE / Network
SD card
SD CARD
DC 12V OUT
DC 12V IN
