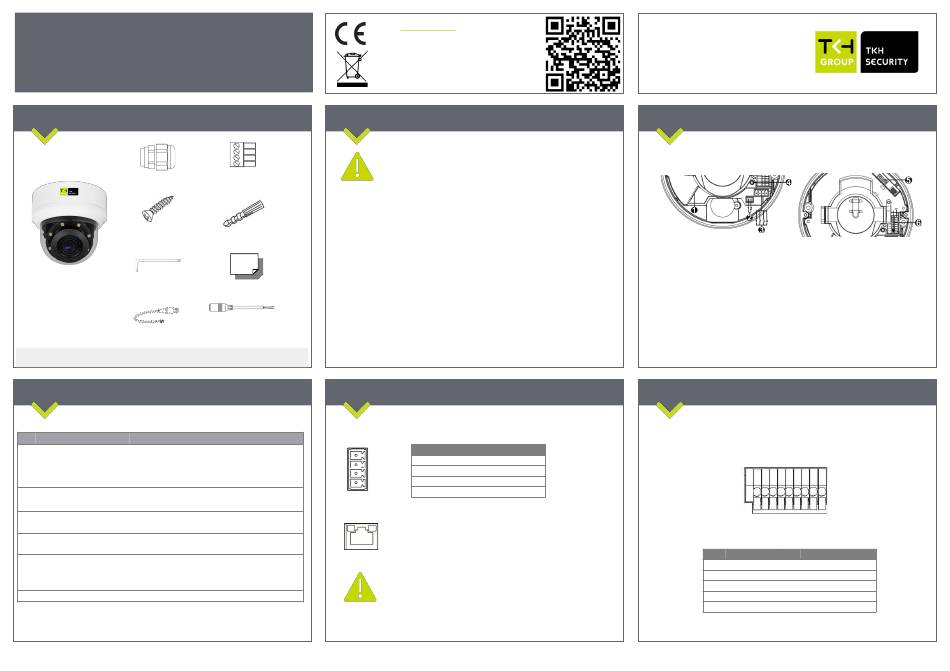

TKH security FD980 Quick Start Manual

FD980
4K Vandal Fixed Dome Camera
Quick Start Guide
Unpack
Cable Gland
M4 Self-tapping
screw(x2)
FD980
Security Torx
BNC Connector
Subject to modification. Actual product and accessories may differ in appearance.
Connector Definition
No. Connector Definition
RJ-45 Port
(Contact Siqura for a
1 For network and PoE connections
compatible PoE
injecter.)
2 BNC For analogue video output
Power(DC 12V/AC
3 Power Connection
24V)
Press the button with a proper tool for at
4 Reset Button
least 20 seconds to restore the system.
Insert the SD card into the card slot to store
5 Micro SD Card Slot videos and snapshots. Do not remove the
SD card when the camera is powered on.
6 Alarm & Audio I/O Alarm I/O & Audio connection
Table 1 Connector definition
Copyright © 2019-2025 TKH Security B.V. | FD980-QS-EN v5 (20250114)
© TKH Security B.V.
Visit
datasheet, manuals and other
documentation, firmware, and regulations.
Or scan this QR-code to go to the
product's page directly.
4-pin power terminal
block
Plastic Screw
Anchor(x2)
Quick Start Guide
DC 12V Power
Connector
Power Connector (DC 12V/AC24V)
+ 1
- 2
+ 3
- 4
❑ The green link LED is lit when there is a good network
❑ The orange network LED flashes to indicate that there
tkhsecurity.com to find the product
Installation Notices
Caution installation shall be performed by qualified
personnel only. Installation shall be in accordance with local
procedures. The camera contains batteries. Do not replace
in risk of explosion.
Battery replacement shall not be applied in view of the risk of
explosion. Dispose of used batteries according to the
instructions.
For "PoE" input connection, use only with UL listed I.T.E.
with "PoE" output. Description for the "PoE" is intended to be
connected to not exposed (outside plant) networks or
equivalent statement in installaion instructions.
Camera Cabling
Pin Definition
1 AC24V +
2 AC24V -
3 DC12V +
4 DC12V -
Table 2 Pin definition for power connection
connection.
is network activity.
In some cases, an ethernet crossover cable may be
needed when connecting the camera directly to the
PC. Check the status of the link indicator and the
activity indicator LEDs. If the LEDs are unlit, check the
lan connection.
Manufacturer information:
Name:
TKH Security B.V.
Address: Werner von Siemensstraat 7,
2712 PN, The Netherlands
Email: info.nl@tkhsecurity.com
Connectors
Figure 1 Camera Connectors
Alarm I/O and RS-485 Connection
See the diagram and the pin definition below for the
audio and alarm I/O connection.
9 8 7 6 5 4 3 2 1
Figure 2 Diagram of I/O connection pins
Pin Definition Pin Definition
1 Audio In L 6 Alarm Out +
2 Audio In R 7 Alarm Out -
3 GND 8 Alarm In +
4 Audio Out L 9 Alarm In -
5 Audio Out R
Table 3 Pin definitions for Alarm I/O and RS-485 connection
