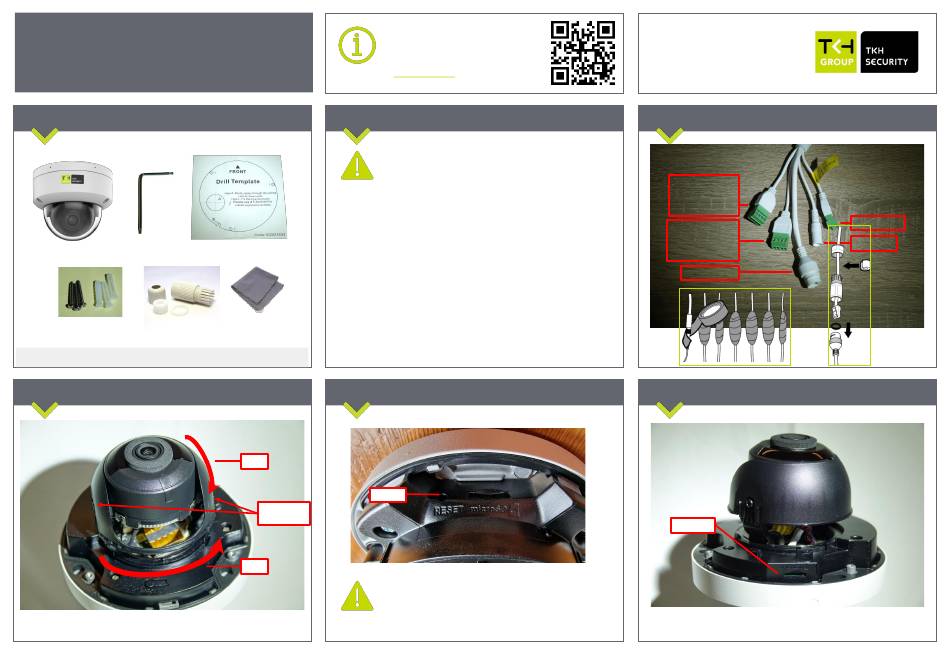

TKH security FD2024F Quick Start Manual

FD2024F

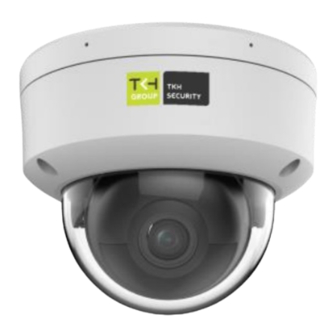

4MP IP Fixed dome camera
Quick Start Guide
Unpack
Subject to modification. Actual product and accessories may differ in appearance.
Pan / Tilt
© TKH Security B.V. 2024 | Version 1 (20240529) | FD2024F-QS-EN
Find additional manuals, the
datasheet, the EU Declaration of
Conformity, and the latest firmware
for this product at:
tkhsecurity.com
Installation Notices
Caution installation shall be performed by qualified
personnel only. Installation shall be in accordance with
local procedures. The camera contains batteries.
Battery replacement shall not be applied in view of the
risk of explosion. Dispose of used batteries according to
the instructions.
For "PoE" input connection, use only with UL listed
I.T.E. with "PoE" output. Description for the "PoE" is
intended to be connected to not exposed (outside plant)
networks or equivalent statement in installation
instructions.
Duster
TILT
RESET
UNSCREW
to TILT !
PAN
To restore camera to factory defaults, power up with
Reset button pressed for at least 10s.
Reset button
Camera cabling
AUDIO IN
AUDIO IN GND
AUDIO OUT
AUDIO OUT GND
ALARM IN
ALARM IN GND
ALARM OUT
ALARM OUT GND
PoE / Network
SD card
SD CARD
DC 12V OUT
DC 12V IN
