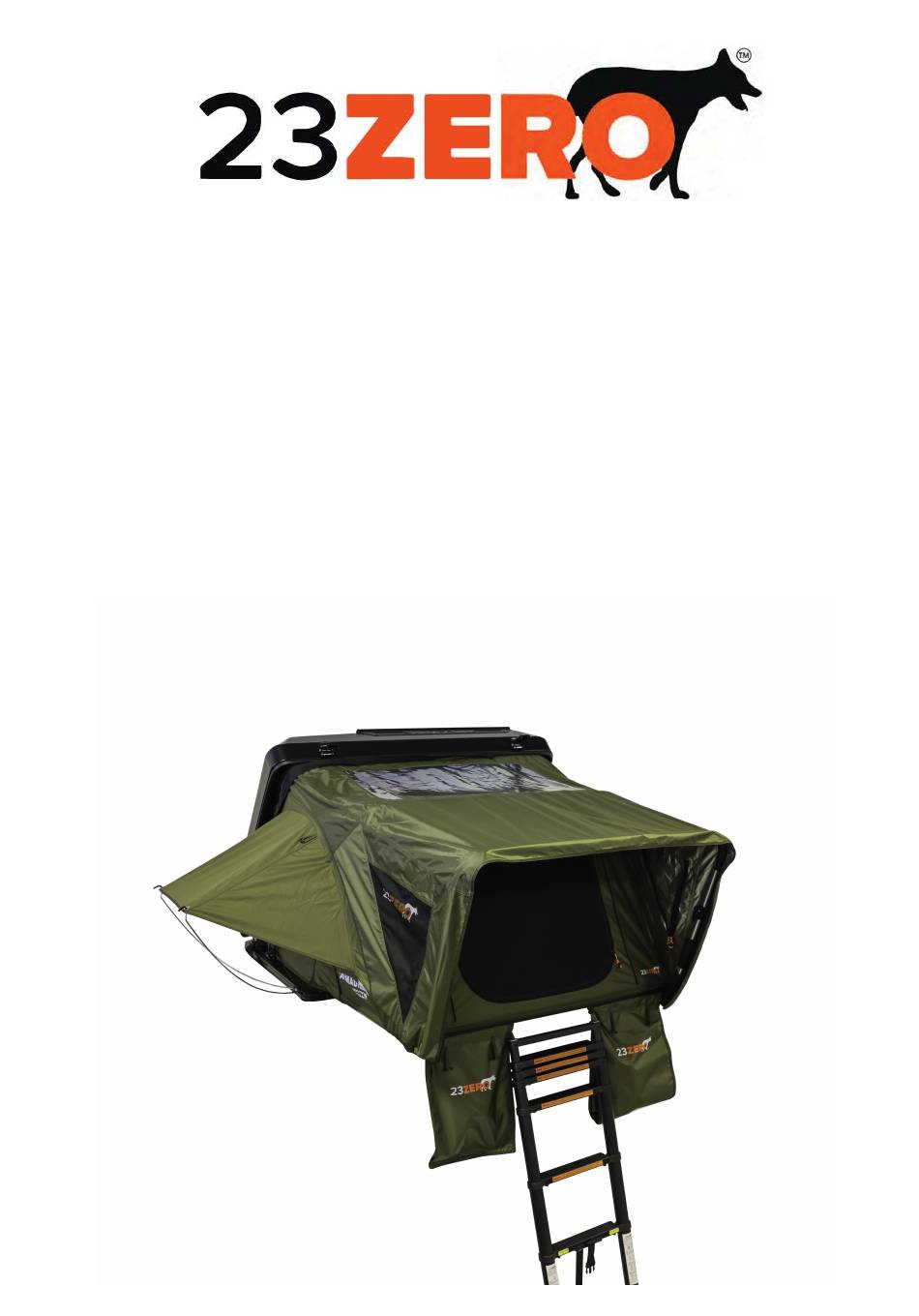

- Page 1 Armadillo Horizon HARDSHELL ROOF TOP TENT USER MANUAL...
-
Page 2: Table Of Contents
THANK YOU! Congratulations on your purchase of a 23ZERO Rooftop Tent. We strive to provide you with the ultimate camping experience - the ARMADILLO HORIZON does just that. Please carefully read this user manual. Follow all instructions and adhere to all safety and product care guidelines. -
Page 3: Safety Considerations
Please ensure all 12V electrical connections from your vehicle’s 12V system to the tent’s internal power system are correctly wired and fused. Incorrect wiring and/or lack of fuses may cause short-circuiting of the system and cause a fire. 23ZERO disclaims all responsibility for damage caused by incorrect wiring. - Page 4 IMPORTANT Before installing your 23ZERO Roof Top Tent please ensure you understand the following: • Your vehicle’s maximum roof load rating.
-
Page 5: Hardware & Accessories
HARDWARE & ACCESSORIES The ARMADILLO HORIZON Rooftop Tent includes a mounting kit with everything required to mount the Rooftop Tent to most roof racks and platforms. See included accessories below: 4 x Fly Pole 2 x Handle 4 x Mounting Plate 8x M8x65mm Bolt, Nut &... - Page 6 1 x Telescopic Safety Pole 1 x Safety Pole Weather Adaptor...
-
Page 7: Assembly
The roof bars supplied with the ARMADILLO HORIZON are not designed to carry significant loads. A maximum of 44lbs can be carried on top of the ARMADILLO HORIZON providing this weight is spread evenly amongst both bars. Load weights greater than 44lbs will void any warranty. -
Page 8: Installation To Roof Rack
INSTALLATION TO ROOF RACK The ARMADILLO HORIZON can be installed to most roof bars or platform racks using the supplied mounting kit. Some platform racks have channels which are wider than the supplied mounting plate. 23ZERO has extended mounting plates available online for this scenario. - Page 9 6. Final inspection. • Ensure all 8 nyloc nuts are tight and there is no movement of the ARMADILLO HORIZON on the vehicle’s roof rack. • Check all factory-fitted mounting rail nuts underneath the mattress are fastened and in good repair. Lift the mattress to gain access to these.
-
Page 10: Ladder Adjustment
LADDER ADJUSTMENT For your safety and protection, ensure correct placement and angle of ladder. See diagrams below. Recommended ladder placement is a 4:1 ratio or approximately 70° to 75° NOTE: Under no circumstances should anyone be inside the roof top tent if the ladder is not locked and secured at correct angle. - Page 11 If further shortening is required, press the second set of locking buttons (third rung from the top). This will close the 85mm gap until rung 1 & 2 are touching. Swing in the bottom of the ladder until it supports the weight of the roof top tent. If the angle of the ladder is between 70°...
-
Page 12: Opening & Setup
OPENING AND SETUP 1. Release locking mechanism. • Locate and release all 4 latches (2 on each side). 2. Raise shell. • Using the top handle on the RHS of tent, lift the shell upwards. • Once the gas struts take over, the shell will open under its own power. - Page 13 • Attach the weather adaptor to the safety pole and push upwards to create a high-point on the ARMADILLO HORIZON fly. 7. Initial setup complete. • Adjust internal windows to suit the climate you are in.
-
Page 14: Closing & Packdown
3. Remove all 4 fly poles. • Depending on how the ARMADILLO HORIZON is mounted, it may be easier to remove the fly poles by reaching out from inside the tent or by standing on the vehicle and removing them externally. -
Page 15: Exterior Dimensions
EXTERIOR DIMENSIONS – H2 *All measurements shown in millimeters... - Page 16 EXTERIOR DIMENSIONS – H3 *All measurements shown in millimeters...
-
Page 17: Mounting Rail Dimensions
Note: Measurements shown for the underside mounting extrusions may vary slightly due to manufacturing tolerances. It is highly recommended that any final modifications to your setup be made only after receiving delivery of the ARMADILLO Horizon. *All measurements shown in millimeters... - Page 18 Note: Measurements shown for the underside mounting extrusions may vary slightly due to manufacturing tolerances. It is highly recommended that any final modifications to your setup be made only after receiving delivery of the ARMADILLO Horizon. *All measurements shown in millimeters...
-
Page 19: Care & Maintenance
Do not expose to petro-chemicals. STORAGE Certain situations may require the ARMADILLO HORIZON to be packed down wet. It is essential that at the earliest opportunity the ARMADILLO HORIZON is re-opened and allowed to dry fully. Though we use the best polyurethane proofing available, prolonged exposure to moisture causes hydrolysis which can affect the integrity of the proofing. -
Page 20: Warranty
Warranty 23ZERO will replace or repair any product at its discretion that is subject to faulty manufacturing or workmanship including materials. Exclusions The above warranty is limited to manufacturing and material defects. The warranty does not cover ordinary wear and tear, damage caused by improper use, storm damage, improper...
