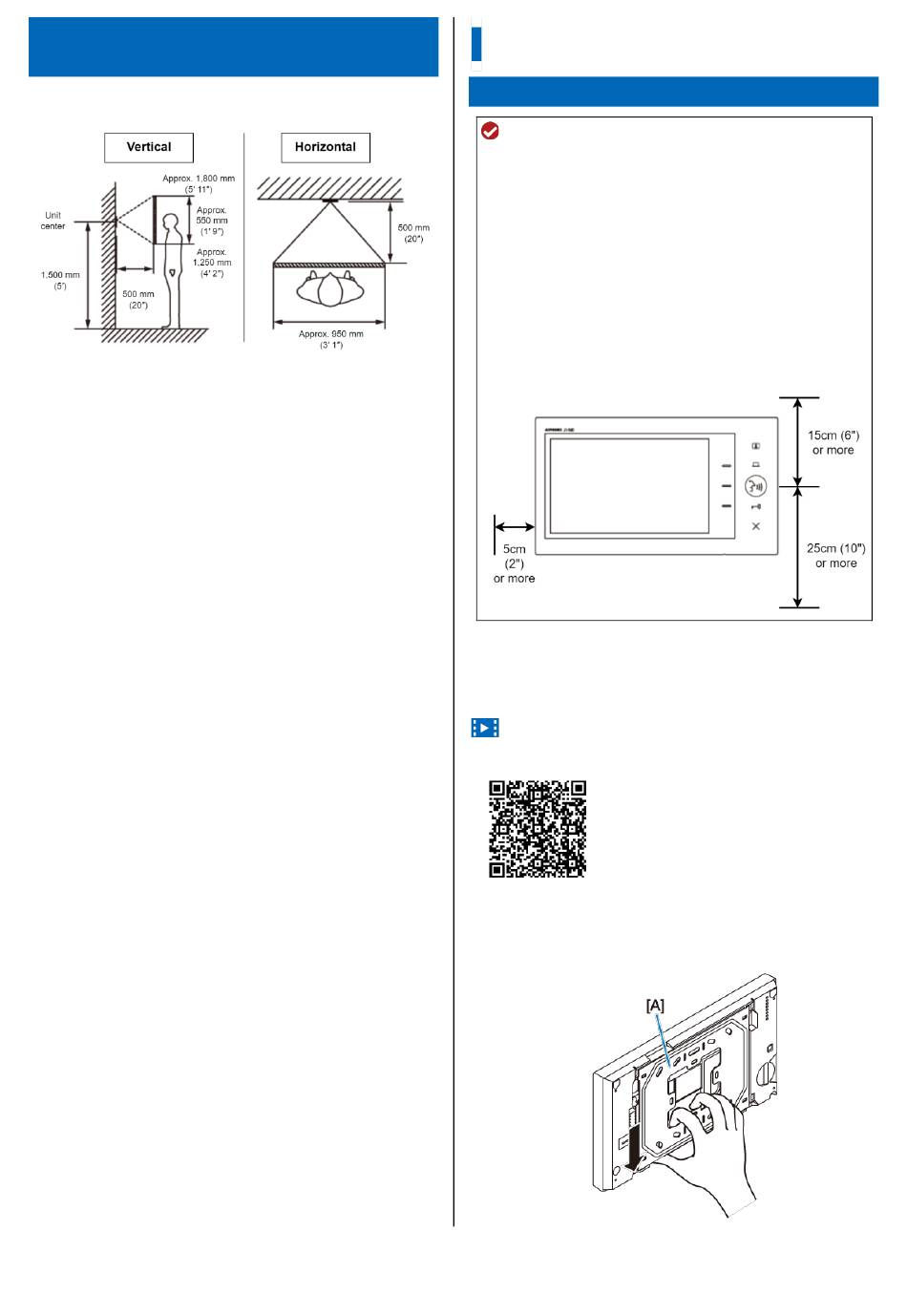

Door station mounting positions
and image view area
JV-DV, JV-DVF

Mounting

JV-1MD
ATTENTION
 Do not embed the station inside a wall.
 To prevent malfunction, install the station at least 20 cm
(8") away from other devices (e.g., floor heating remote
control).
 Avoid installing the station in a concave space in a wall
to prevent audio distortion.
 The location of the station requires the following open
spaces to prevent malfunctions or call interruption.
 15 cm (6") or more above the center of the station.
 25 cm (10") or more below the center of the station (to
allow operation of the reset button on the bottom of
the station).
 5 cm (2") or more on the left side of the station (to
avoid blocking the speaker).
Back wiring
Installation video
https://www.aip-info.net/file/manual/j/JV-1MD/JV-1MD_INS/JV-
1MD_INS_EN/content/attachments/101959052/101968970.mp4
1
Remove the mounting bracket [A] from the
back of the station.
Slide the mounting bracket down, and remove it.
