CAUTION
Negligence could result in injury to people or damage to
property.
Do not install or connect the product with the
power on.
This may result in electrical shock or malfunction.
Make sure the wiring is correct and there are no
wiring shorts before switching on the product.
This may result in fire or electrical shock.
Install in a place where the product will not get
easily bumped.
This may result in injury.
Do not put your ear close to the speaker when
using the product.
May cause harm to the ear if a sudden loud noise is
emitted.
General Precautions
 Do not install the power supply in the ceiling or on the floor.
Doing so would prevent maintenance inspections and
repairs from being carried out. This may result in
malfunction.
 Install low-voltage lines at least 30 cm (12") away from
high-voltage lines (AC 100V-240 V), especially inverter air
conditioner wiring. This may result in interference or
malfunction.
 When installing or using the station, give consideration to
the privacy rights of subjects, as it is the responsibility of
the system owner to post signs or warnings in accordance
with local ordinances.
 Keep the unit more than 1 m (3.3') away from radio or TV
set.
Notice
 If the station is used in areas where there are business-use
wireless devices such as a transceiver or mobile phones, it
may cause malfunction.
 Keep the intercom wires more than 30 cm (12'') away from
AC 100-240 V wiring. AC induced noise and/or unit
malfunction could result.
 If the station is installed in an area with an extremely
strong electrical field, such as in the vicinity of a
broadcasting station, it may create interference and cause
a malfunction.
 When warm indoor air flows into the unit, dew
condensation may be caused by a temperature difference
between indoors and outdoors. It is recommended to cover
openings on the unit such as cable incoming holes to avoid
condensation.

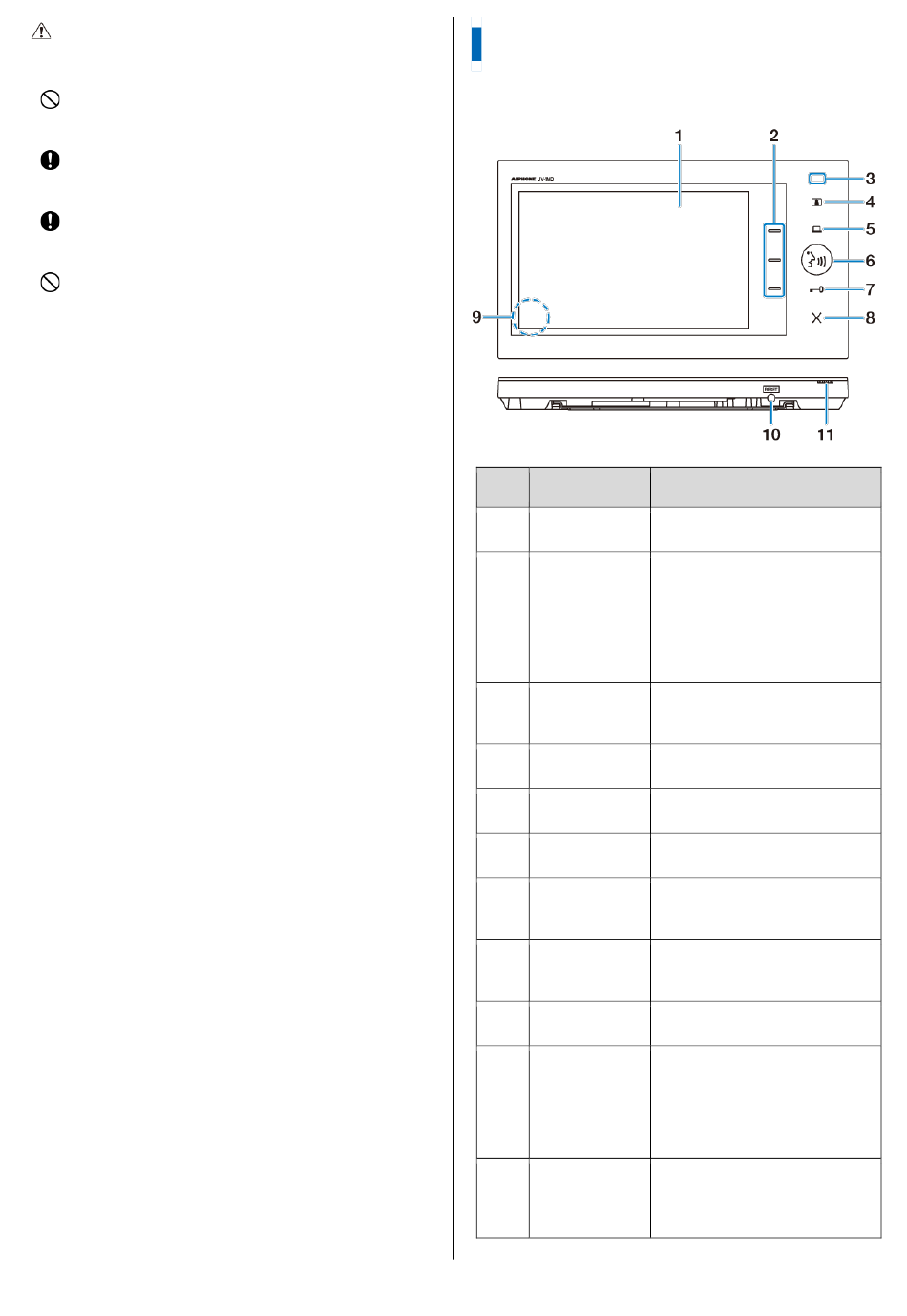

Part names and functions

Master monitor station (JV-1MD)
No. Item
Color LCD
1
screen
Function buttons  Tap the corresponding function
2
Notification LED
3
(blue)
Monitor button
4
Option button
5
Talk button
6
Door release
7
button
End button
8
Speaker
9
RESET switch
10
Microphone
11
-3-
Description
Color LCD screen doesn't have
touch interface.
button to execute the function
displayed on the right side of
the screen.
 Tap any function button in
standby mode to display the
settings menu.
Indicates the current status of the
station.
→Notification LED (P.4)
Tap the monitor button to monitor
the outside of the door.
Tap the option button to activate
a connected external device.
Tap the talk button to start
communication.
Tap the door release button to
unlock the electric lock at the
door station.
Tap the end button to exit the
current operation and enter
standby mode.
The speaker is on the back side
of the station.
Push the RESET switch to reboot
the station when it is not
responding.
Even if you reboot the station,
the settings and recorded image
are retained.
Do not block the microphone with
stickers or tape. Otherwise,
communication may not be
possible.
