Aiphone JV-1MD Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual

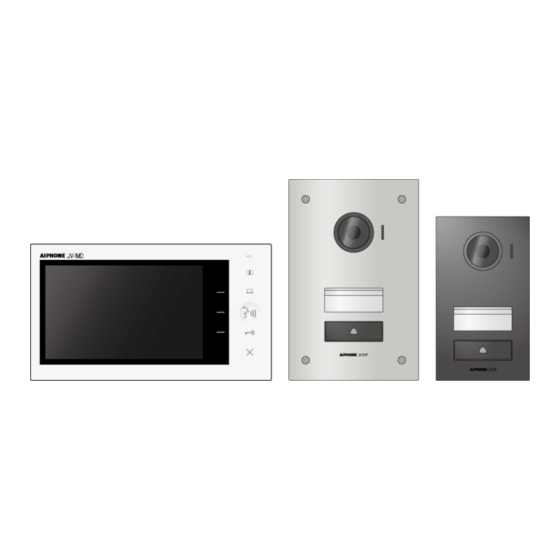

JV-1MD (Hands free color video intercom master monitor station)
JV-1FD (Hands free color video intercom expansion monitor station)
JV-DV (Video door station)
JV-DVF (Video door station)
 Read this manual prior to usage to ensure safe and correct operation.
 The illustrations and images used in this manual may differ from the actual product.
HTML manual
https://www.aip-info.net/file/manual/j/JV-1MD/JV-1MD_OP/JV-1MD_OP_EN/content/
Issue date: Dec. 2023 Ⓐ 1223 (H1.00) DL RZ 65334

Advertisement

Table of Contents
loading

Related Manuals for Aiphone JV-1MD

Summary of Contents for Aiphone JV-1MD

  • Page 1 Issue date: Dec. 2023 Ⓐ 1223 (H1.00) DL RZ 65334 Operation Manual JV-1MD (Hands free color video intercom master monitor station) JV-1FD (Hands free color video intercom expansion monitor station) JV-DV (Video door station) JV-DVF (Video door station)  Read this manual prior to usage to ensure safe and correct operation.

  • Page 2: Table Of Contents

    Part names and functions ............................7 Master monitor station/expansion monitor station ....................7 Door station................................9 Setting the date and time (JV-1MD only) ........................10 Using the station ............................11 Answering a call ................................ 11 Operation while calling or monitoring ........................12 Adjusting screen brightness ..........................

  • Page 3: Introduction

    Introduction About this manual:  In this manual, product names may be referred to as follows. Product name Referred to as Hands free color video intercom master monitor station Master monitor station Hands free color video intercom expansion monitor station Expansion monitor station Video door station Door station...

  • Page 4: Precautions

    AC plug or turn off the system power breaker. This may result in fire or electrical shock. Do not use the power supply other than Aiphone specified. This may result in fire or malfunction. Insert AC plug completely and securely into the outlet.
  • Page 5  If the station is used in areas where there are business-use wireless devices such as a transceiver or mobile phones, it may cause malfunction.  This station is not meant to protect lives or property. Aiphone is not to be held responsible for any and all resulting serious accidents, disaster accidents, or physical damage.

  • Page 6: Preparation

    Preparation System configuration example With an expansion monitor station : Included : Optional Without an expansion monitor station : Included : Optional NOTE  The external door release button activates only electric lock which is connected to door station.

  • Page 7: Part Names And Functions

    Part names and functions Master monitor station/expansion monitor station JV-1MD master monitor station shown for illustration. JV-1FD expansion monitor station has the same features and controls. Item Description Color LCD screen Color LCD screen doesn't have touch interface. Remove the protective film before use.
  • Page 8  Blue LED is lighting when talk direction is monitor station to door station. Blue flashing On (0.25 sec.) JV-1MD: When a short circuit is detected in the door station wiring or the expansion monitor station wiring. JV-1FD: When a short circuit is detected in the door station wiring. Off (0.25 sec.) On (0.5 sec.)

  • Page 9: Door Station

    Door station Item Description Camera Microphone Do not block the microphone with stickers or tape. Otherwise, communication may not be possible. Speaker hole White light LED The white light LED is always lit while the power is on. When the door station detects dark conditions, the light automatically brightens.

  • Page 10: Setting The Date And Time (Jv-1Md Only)

    Setting the date and time (JV-1MD only) When the station is powered up for the first time, set the current date and time. This function may not be available depending on the installation facilities. The date and time is used for the recording date and time.

  • Page 11: Using The Station

    When a call is received from the door station, the ringtone sounds and the video at the door station is displayed. Instruction video https://www.aip-info.net/file/manual/j/JV-1MD/JV-1MD_OP/JV-1MD_OP_EN/content/attachments/110603869/110603873.mp4 NOTE  If no buttons are pressed, the screen will time out approximately 45 seconds after the call is received.

  • Page 12: Operation While Calling Or Monitoring

    Operation while calling or monitoring Adjusting screen brightness Instruction video https://www.aip-info.net/file/manual/j/JV-1MD/JV-1MD_OP/JV-1MD_OP_EN/content/attachments/110603877/110603881.mp4 NOTE  The default value is 3, with a minimum of 1 and a maximum of 5. Adjusting receiving volume The receiving volume can be adjusted while in communication.

  • Page 13: Releasing The Door

    Available only when an electric door lock is installed at the door and connected to the station. Instruction video https://www.aip-info.net/file/manual/j/JV-1MD/JV-1MD_OP/JV-1MD_OP_EN/content/attachments/110603900/110603902.mp4 Activating an external unit Available only when an external unit, such as a garage door, is connected to the station.

  • Page 14: Recording (Jv-1Md Only)

    Recording (JV-1MD only) Recording a still image (JV-1MD only) The station automatically records a still image at the door station after receiving a call.  This function may not be available depending on the installation facilities.  is shown while an image is recording.

  • Page 15: Deleting A Recorded Image (Jv-1Md Only)

    Deleting a recorded image (JV-1MD only) This function is not available if the station does not have a recording function. Select in the setting menu. Deleted images cannot be recovered. Instruction video https://www.aip-info.net/file/manual/j/JV-1MD/JV-1MD_OP/JV-1MD_OP_EN/content/attachments/110603942/110603943.mp4 NOTE  To cancel deleting, select Monitoring the door station When a noise is heard outside, you can monitor the video and sound outside the door.

  • Page 16: Setting Menu

    ♪3 Displays the 2D code to access the operation manual. Sets the current date. 01/01/2000 - 31/12/2099 → Setting the date and time (JV-1MD only) (P.10) (Default: 01/01/2024) (JV-1MD only)* Sets the display format of time. 24H (Default) Sets the current time.

  • Page 17: Troubleshooting

    Viewing a recorded image (JV-1MD only) (P.14) Problem: The notification LED flashes fast. Cause: JV-1MD: A short circuit is detected in the door station wiring or the expansion monitor station wiring. JV-1FD: A short circuit is detected in the door station wiring.

  • Page 18: Appendix

    Appendix Replacing the nameplate Instruction video (JV-DV) https://www.aip-info.net/file/manual/j/JV-1MD/JV-1MD_OP/JV-1MD_OP_EN/content/attachments/110603980/110603984.mp4 Instruction video (JV-DVF) https://www.aip-info.net/file/manual/j/JV-1MD/JV-1MD_OP/JV-1MD_OP_EN/content/attachments/110603980/110603982.mp4 Peel off the protective seal of a new nameplate (both sides). Fill in the resident's name. • Use a permanent marker. • Keep the text within the dashed line.
  • Page 19 JV-DVF: Loosen the special screws (×4) with the included hexagonal wrench [C], and remove the front panel [D]. Pull out the nameplate [E]. JV-DV: JV-DVF: Insert the filled-in nameplate. Install the front panel in the opposite order of removal. -19-...

  • Page 20: Cleaning

     Do not spray the disinfectant directly onto the station. This may result in malfunction. Cleaning the inside of the nameplate cover (JV-DV only) Instruction video https://www.aip-info.net/file/manual/j/JV-1MD/JV-1MD_OP/JV-1MD_OP_EN/content/attachments/110603990/110603991.mp4 Remove the front panel. Loosen the special screw with the included special screwdriver [A], and remove the front panel [B].
  • Page 21 Remove the nameplate cover [D]. ATTENTION  Do not put a sticker over the nameplate cover. Otherwise the LED illumination for the nighttime is decreased.  Do not remove the packing. If the packing is not installed properly, water may enter the nameplate cover. Gently wipe the inside of the nameplate cover using a soft, dry cloth.

  • Page 22: Specifications

    Specifications Master monitor station/expansion monitor station Model name JV-1MD, JV-1FD Power supply 24 V DC Power consumption JV-1MD Standby 100 mA Max. 780 mA JV-1FD Standby 165 mA Max. 1,100 mA Communication Auto-voice actuation / Press-to-talk Screen 7 inch TFT LCD screen Ambient temperature 0 - 40 °C (32 °F - 104 °F)

  • Page 23: Regulations

    This warranty covers bench repairs only, and any repairs must be made at the shop or place designated in writing by Aiphone. This warranty is limited to the standard specifications listed in the operation manual.

  • Page 24: Contact Us

    Contact us AIPHONE CO., LTD. 10th floor Meiji Yasuda Seimei Nagoya Building, 1-1 Shinsakae-machi, Naka-ku, Nagoya, Aichi, 460-0004, JAPAN AIPHONE CORPORATION 6670 185th Ave NE, Redmond, WA 98052, USA +1-425-455-0510 AIPHONE S.A.S. ZAC du Bois Chaland - 6 rue des Pyrénées...
