JV-DV

Installation video
https://www.aip-info.net/file/manual/j/JV-1MD/JV-1MD_INS/JV-
1MD_INS_EN/content/attachments/101959275/101968975.mp4

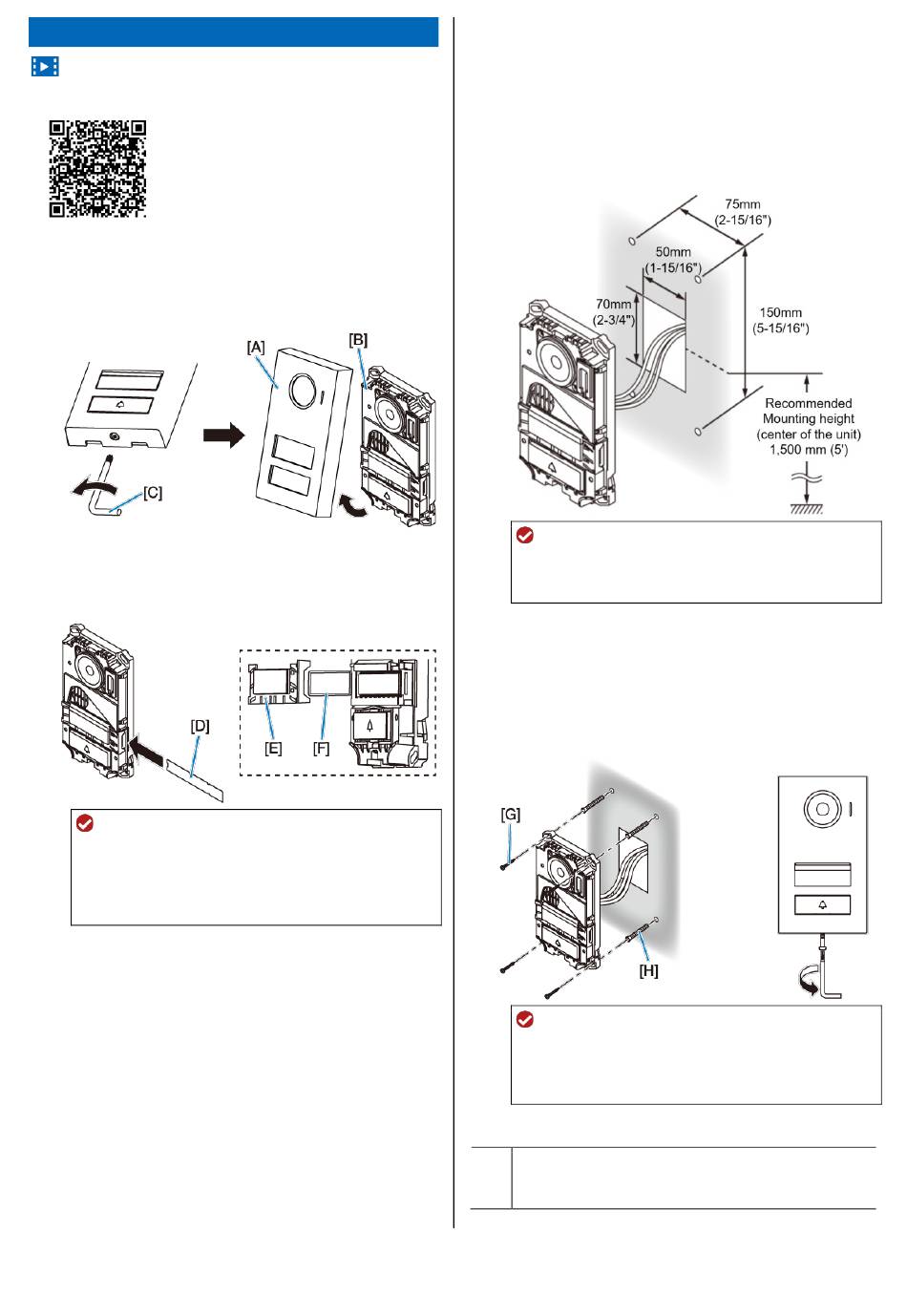

1
Remove the front panel [A].
Loosen the special screw with the included special
screwdriver [C], and remove the front panel from
the station [B].
2
Insert the filled-in nameplate [D].
Refer to "
Filling in the nameplate (P.2)
nameplate instructions.
ATTENTION
 Do not put a sticker over the nameplate cover [E].
This will decrease the LED's nighttime illumination.
 Do not remove the nameplate cover except for
maintenance. If the packing [F] is not installed
properly, water may enter the nameplate.
3
Connect wires to the station [B].
Slide down and then open the terminal cover on
the back of the station, and strip 8 mm (5/16") of
the wire jacket and insert it into the terminal. If it is
difficult to insert, press and hold the release button
while inserting.
Be sure to close the terminal cover, then slide it up.
" for
4
Fasten the station [B] to the mounting surface
with screws [G] (×4), then replace the front
panel [A] and tighten the special screw with the
included special screwdriver [C].
Use a commercially-available anchor [H] if
necessary.
Available screws
[G]
-10-
ATTENTION
 Failure to slide up the cover may cause water to
enter the terminals, etc., resulting in damage to the
station.
ATTENTION
 Do not install the station with the cables trapped or
pressed hard by the main unit.
 Do not overtighten the screws.
 Do not block the drainage holes.
Screw shaft: Φ4.1 mm or less
Slotted head: Φ8.2 mm or less, 3.0 mm or less in
height
