JV-DVF

Installation video
https://www.aip-info.net/file/manual/j/JV-1MD/JV-1MD_INS/JV-
1MD_INS_EN/content/attachments/101959398/101968992.mp4
1

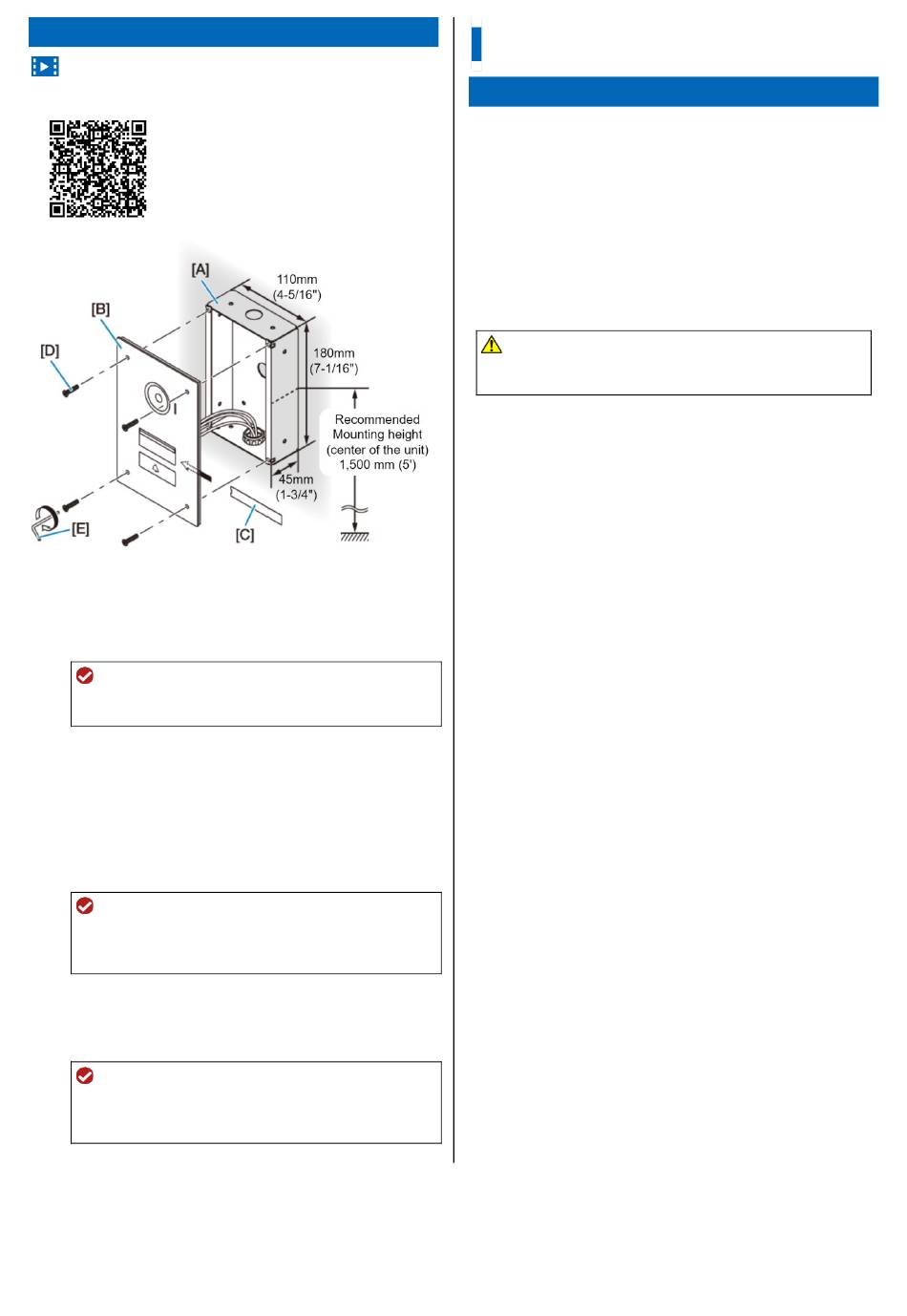

Install the flush mount back box [A] in the wall.
2
Insert the filled-in nameplate [C].
Refer to "
Filling in the nameplate (P.2)
nameplate instructions.
ATTENTION
 Do not put a sticker over the nameplate. This will
decrease the LED's nighttime illumination.
3
Connect wires to the station.
Slide down and then open the terminal cover on
the back of the station, and strip 8 mm (5/16") of
the wire jacket and insert it into the terminal. If it is
difficult to insert, press and hold the release button
while inserting.
Be sure to close the terminal cover, then slide it up.
ATTENTION
 Failure to slide up the cover may cause water to
enter the terminals, etc., resulting in damage to the
station.
4
Fasten the front panel [B] to the back box [A]
with the special screws [D] (×4).
Use the hexagonal wrench [E] to install.
ATTENTION
 Do not install the station with the cables trapped or
pressed hard by the main unit.
 Do not overtighten the screws.

After installation

Check after installation

After installation, check that the system is functioning in
accordance with the operation manual.
If not operating properly
Remove the door station, and then connect it directly to the
master monitor station with short, low-voltage wires to check
its operation.
If it operates properly, there may be a problem with the
wiring. Check the wiring connections.
 Be sure to unplug the power supply before removing the
low voltage wires.
When the notification LED flashes
The wiring to the door station may be shorted. Check the
wiring.
The master monitor station will restart when the short circuit
is restored.
For more information on the notification LED, refer to
"Notification LED
" for
