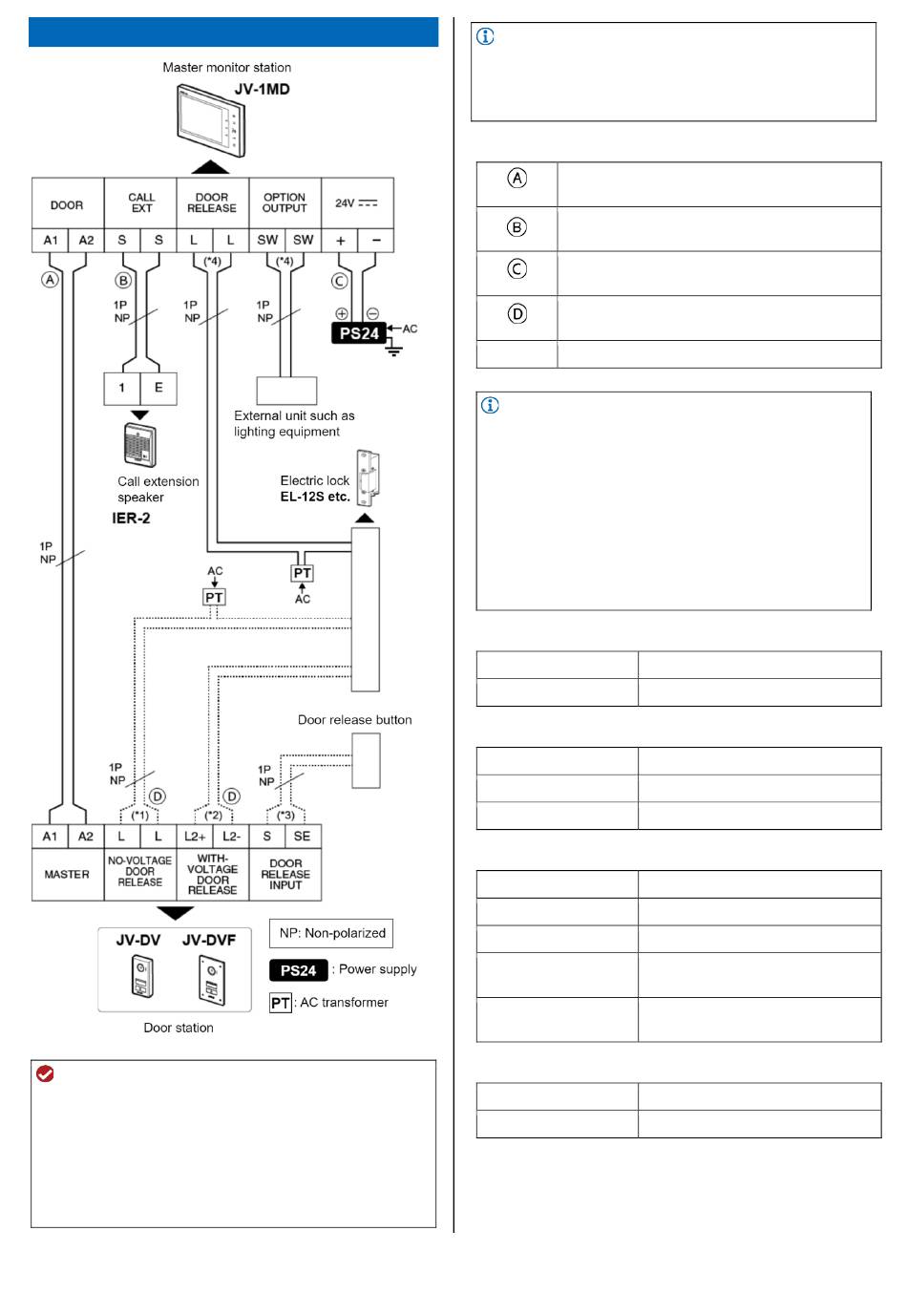

Wiring diagram and specifications

ATTENTION
 Do not use the unused terminals for other purposes.
 The wiring between each device should not be in the
same wiring jacket.
 Insulate and secure unused low-voltage lines.
 Only connect an electric lock to a single location.
 The external door release button activates only electric
lock which is connected to door station.
 Be sure to ground the power supply.
NOTE
 The sequence of terminals in the diagram may differ from
the actual product.
 Also refer to the instructions for each device to be
connected.
Wiring distance
PE Φ0.65 mm (22 AWG): 50 m (165')
PE Φ0.8-1.2 mm (20-16 AWG): 100 m (330')
PE Φ0.65 mm (22 AWG): 50 m (165')
PE Φ0.8-1.2 mm (20-16 AWG): 150 m (490')
PE Φ0.65 mm (22 AWG): 5 m (16'5")
PE Φ0.8 mm (20 AWG): 10 m (33')
PE Φ0.65 mm (22 AWG): 15 m (49')
PE Φ0.8-1.2 mm (20-16 AWG): 30 m (98'5")
Others PE Φ0.65-1.2 mm (22-16 AWG)
NOTE
 The wiring distance between the master monitor station
and the power supply can be extended up to 25 m (82')
by using a PE Φ1.2 mm (16 AWG) cable. However, the
maximum distance between the door station and the
master monitor station will be shortened to 70 m (230')
by using a PE Φ0.8-1.2 mm (20-16 AWG) cable.
 When the wet contact output from the door station is 12
VDC, 580 mA (higher than 500 mA, 580 mA or lower),
the wiring distance between the door station and the
master monitor station should be 70 m (230') or shorter
by using a PE Φ0.8-1.2 mm (20-16 AWG) cable.
(*1): Output specifications
Output method
Contact rating
(*2): Output specifications
Output method
Output current
Output voltage
(*3): Input specifications
Input method
Detection time
Contact resistance
Terminal short-circuit
current
Voltage between
terminals
(*4): Output specifications
Output method
Contact rating
-6-
Dry contact (N/O)
24 VDC, 1 A (resistive load)
Wet contact (N/O)
500 mA or less
12 VDC
Dry contact (N/O)
100 msec or more
300 Ω or less
10 mA or less
5 VDC or less (between open
terminals)
Dry contact (N/O)
24 VDC, 1 A (resistive load)
