Circontrol eHome 5 User Manual

Hide thumbs Also See for eHome 5:

Advertisement

Quick Links

Download this manual
User
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the eHome 5 and is the answer not in the manual?

Questions and answers

Related Manuals for Circontrol eHome 5

Summary of Contents for Circontrol eHome 5

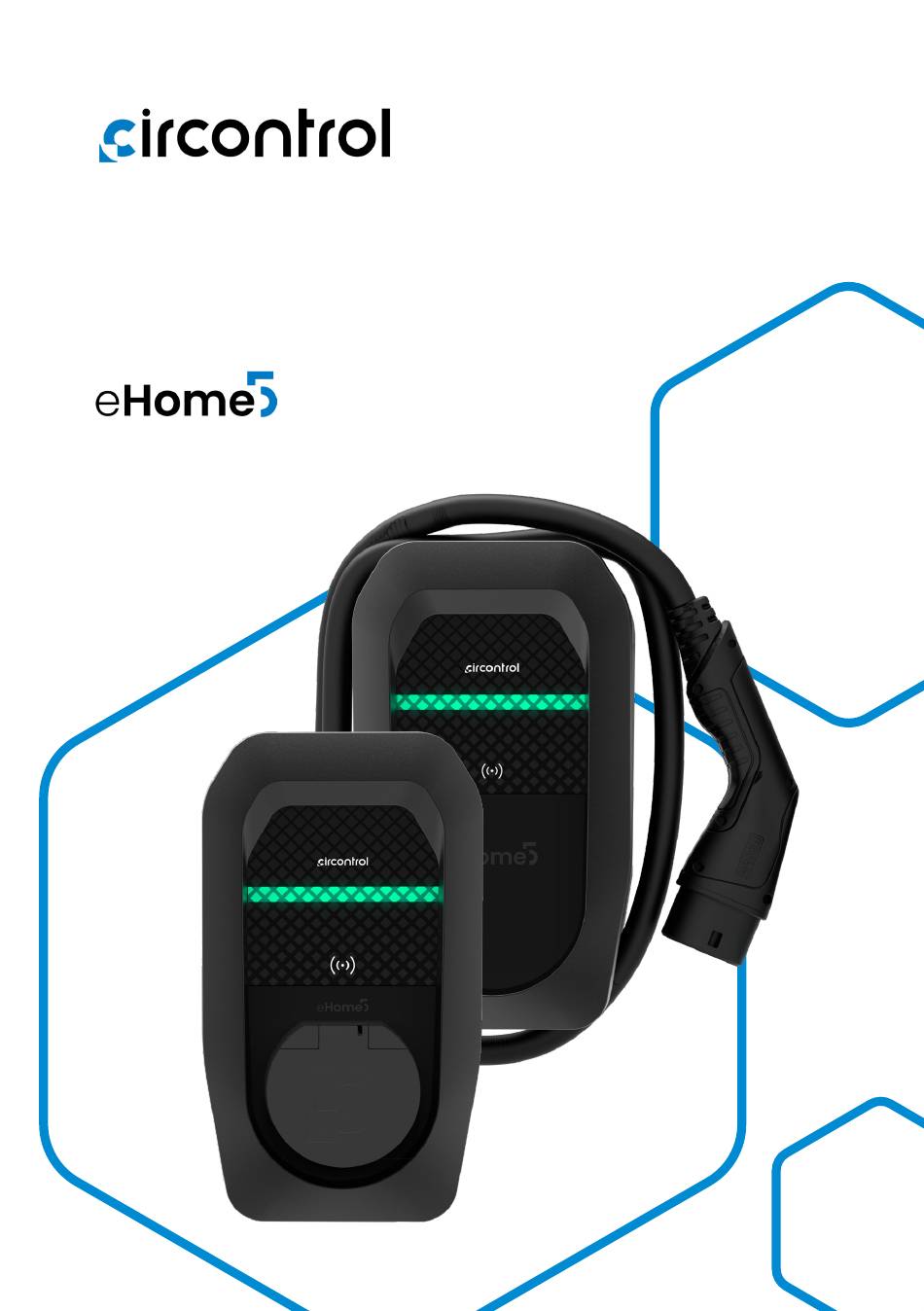

  • Page 1 User Manual...
  • Page 2 Revision log Date Version Description 01/2025 M457J10-03-25A Initial release...
  • Page 3 C O P Y R I G H T I N F O R M A T I O N This document is copyrighted, 2025 by Circontrol, S.A. All rights are reserved. Circontrol, S.A. reserves the right to make improvements to the products described in this manual at any time without notice.
  • Page 4 Here’s the guide to use and configure your eHome 1 — So, hello! 2 — Overview 3 — Operating instructions A - Charging procedure - Open B - Charging procedure - Restricted C - Status LED light errors 4 — APP - Introduction A - APP eHome5 B - Prerequisites 5 —...
  • Page 5 9 — APP - Profile A - My profile B - Home C - Charger D - Vehicle E - RFID 10 — Need help?
  • Page 6 It is mandatory to follow the basic security information supplied in this manual to ensure safe and proper installation. Failure to follow safety instructions may involve personal injury, equipment damage and danger of death. CIRCONTROL is not responsible for events arising from such breach. THE FOLLOWING SYMBOLS ARE USED FOR IMPORTANT...
  • Page 7 Info I N F O R M A T I O N It provides useful information to be taken into account. Standards: • Complies with IEC 61851, Electric vehicle conductive charging system (IEC 61851-1:2017 and IEC 61851-21-2:2018). • Complies with IEC 62196, Plugs, socket-outlets, vehicle couplers and vehicle inlets (IEC 62196-1 and IEC 62196-2).
  • Page 8 S H O R T D E S C R I P T I O N eHome 5 is specially designed to be easily installed both in outdoor and indoor private car parks, and to be compatible with all the EV models of the market according to European standard IEC 61851-1, by just plugging your car.
  • Page 9 1 — Circontrol logo 4 — Cable 7 — RFID reader 2 — RGB LED bar 5 — Frame 3 — Front cover 6 — Socket...
  • Page 10 When the status LED light bar turns into blue, it means that the eHome is starting the charging process. While charging the EV, the LED light bar will be flashing continuously in a cascade effect. CIRCONTROL — eHome 5 — User Manual...
  • Page 11 4 — E V F U L L Y C H A R G E D — B L U E F I X L E D S T A T U S When the EV is fully charged, the charging process ends up and the status LED light bar stops flashing and remains fix in blue.
  • Page 12 LED light bar will turn green with a breathing effect, along with a ‘validation’ sound. Otherwise, the status LED light bar will turn red, along with a ‘not authorised’ sound. CIRCONTROL — eHome 5 — User Manual...
  • Page 13 3 — P L U G To start the charging process, plug the connector into your car and into the Charge Point (or only into the car in case of having the eHome cable version). 4 — S T A R T I N G A N D C H A R G I N G — B L U E B A R S T A T U S When the status LED light bar turns into blue, it means that the eHome is starting the charging process.
  • Page 14 8 — A V A I L A B L E — G R E E N F I X B A R S T A T U S Once the cable is disconnected, the LED light status bar turns back into green. In this status, the Charge Point is available to start a new charging process, whenever it is required. CIRCONTROL — eHome 5 — User Manual...
  • Page 15 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
  • Page 16 Status LED light errors The eHome 5 is capable of detecting the following operating errors. All of them will be displayed with a specific number of red light blinks: - D state Error - E state Error - Proximity pilot Error...
  • Page 17 3 — P R O X I M I T Y P I L O T E R R O R When the Charge Point is connected to the EV, a Proximity short-circuit to earth may occur. Then, the status LED light bar turns into red and flashes in a sequence of three blinks.
  • Page 18 1 0 — O V E R C U R R E N T E R R O R This means that the current value is too high. If this is the case, the status LED light bar flashes in a sequence of ten blinks. Blink Sequence CIRCONTROL — eHome 5 — User Manual...
  • Page 19 1 1 — E X T E R N A L M E T E R E R R O R This means that there has occurred a communication error between the external meter and the Charge Point. If this is the case, the status LED light bar flashes in a sequence of eleven blinks.
  • Page 20 Identification RFID card manager and FreeCharge mode. Direct communication with the Cosmos cloud Connected platform, allowing remote monitoring and control. Security User registration based on OAuth2. CIRCONTROL — eHome 5 — User Manual...
  • Page 21 Prerequisites Before starting to use the eHome5 app to control the charge point, it is important to make sure that the following requirements are met: • Network connectivity Wi-Fi connection or Ethernet cable: It is essential that the charge point has Internet access, as the eHome5 app communicates with Cosmos.
  • Page 22 APP installation Users of the eHome5 are able to download the APP for both Android (version 7.0 or higher) and iOS (version 15 or higher) devices: Download eHome5 on Android: Download eHome5 on IOS: CIRCONTROL — eHome 5 — User Manual...
  • Page 23 Permits When starting the application, users will be asked for access to different permissions: • Notifications: The customer can be notified when the charge transaction starts, when it is completed and when the charger is offline. • Location: To be able to autofill the customer’s data. In this way, the configuration process is faster and easier.
  • Page 24 The first step for a new user is to create an new accoun. To do this, the ‘Create account’ option must be selected, which will take the user to a form like the one shown below: CIRCONTROL — eHome 5 — User Manual...
  • Page 25 Please note that the password must contain at least 8 characters, including uppercase, lowercase, numbers and a symbol. Once the user has filled in all the fields and clicked on the ‘Create Account’ button, a pop-up will appear informing that a verification email will be sent to the registered email.
  • Page 26 Access Point (AP) AP SSID: eHome-123456 AP PASS: #28gSPRn68aC URL: eHome-123456.local URL PASS: #zP3w591fnDC MAC Wi-Fi: AA:AA:AA:AA:AA:AA MAC Eth: AA:AA:AA:12:34:56 S/N: 0123456789 A second sticker can also be found inside the charger. CIRCONTROL — eHome 5 — User Manual...
  • Page 27 To start the process of adding a new charger, the ‘Add charger’ button must be clicked: Once pressed, a new screen will open with the camera activated and the QR ‘APP’ that comes on either of the two stickers on the charger must be scanned: Then the APP, with communication to Cosmos, will search if the charger is among the factory pre-registered ones.
  • Page 28 1 — F O R M T O C R E A T E A P R O F I L E Name User’s name Surname User’s surname Language APP language Currency Country’s currency Country Country of residence CIRCONTROL — eHome 5 — User Manual...
  • Page 29 2 — F O R M T O C R E A T E A H O U S E H O L D If permissions were accepted for the application to have access to the device’s location, the fields in this form will be filled in automatically. By clicking on ‘Create home’, the APP will collect all the data and the default screen will appear from which the customer can start to control the charge point.
  • Page 30 2 - Household’s name 3 - Wi-Fi and Cosmos connectivity 4 - Widget (Charger status and last charge summary) 5 - Identification method: Free Charge RFID 6 - Send a remote start to the charger CIRCONTROL — eHome 5 — User Manual...
  • Page 31 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK...
  • Page 32 When a new charge session is started, with Free Charge, RFID or via remote start, the following screens will appear: Once the charge session has started, the APP will display the session in real time: CIRCONTROL — eHome 5 — User Manual...
  • Page 33 1 - Charge status 2 - Charging mode: Scheduler: will follow the scheduled charge Boost: will charge at the maximum available power 3 - Real-time charging values: • Duration (hh:mm:ss) • Energy (kWh) • Power (kW) • Intensity (A) 4 - Remote stop At the end of the charge session, the APP will display a summary with the final values: 1 - Total energy...
  • Page 34 4 - Vehicle: General vehicle information 5 - RFID: RFID card manager 6 - Share: QR/link to link the charger with other users 7 - Notifications: Notification settings 8 - About us: General information about the APP CIRCONTROL — eHome 5 — User Manual...
  • Page 35 My profile It allows viewing and editing the fields completed in the initial registration form of the user’s profile. Home It allows viewing and editing the fields completed in the initial registration form of the charger’s location, as well as adding new locations.
  • Page 36 Amps that the charger will provide to the vehicle in a period of time. A charging schedule can be created for Monday to Friday, and a different one for Saturdays and Sundays. CIRCONTROL — eHome 5 — User Manual...
  • Page 37 If no schedule has been configured, but the option is enabled, the schedule will be the one preconfigured with the charger, consisting of a single maximum charge period. In addition, for those with a photovoltaic installation, charging periods can be managed using the following modes: •...
  • Page 38 Option to modify the name of the charger and its location. Firmware update: When the charger has a new firmware version available, the user will be informed by a notification. The user can decide when to perform the upgrade. CIRCONTROL — eHome 5 — User Manual...
  • Page 39 Vehicle On this screen, the user can configure the consumption in kWh/100km of their vehicle so that the application, after each charge transaction, can calculate the km generated according to the total energy supplied by the eHome5. In addition, in the charge sessions history, it will also be possible to see the total autonomy generated by the charger over the time of use.
  • Page 40 Need help? CIRCONTROL — eHome 5 — User Manual...
  • Page 41 In case of any query or if further information is required, please contact our Post-Sales Department. support@circontrol.com www.circontrol.com (+34) 937 362 940 (+34) 937 362 941...
  • Page 42 CIRCONTROL eHOME 5 USER MANUAL A comprehensive guide on how to use and configure your eHome 5. Scan me to view the Datasheet: CIRCONTROL S.A. - ALL RIGHTS RESERVED...
