SS60 (12R970D) Quick Guide
1
1.Open the package.
2. Take out the scale, USB cable, RS232 cable, AC adapter and lead-seal Kit.
3 Adjust Feet to Level Scale
Adjust the feet to level the scale.
5
RS232 Cable
The scale can be connected to two independent PCs at the same time via RS232 and USB cables for data transmission.
Connect via USB Cable
6a
!! Default Baud Rate: 4800, 7E1 !!
Use a USB cable to connect the indicator with a PC.
USB driver is required, download from the link below:
http://www.easthigh.com.cn/fileInfoController/index?buttonType=DOWNLOAD
Unpack and Verify Contents

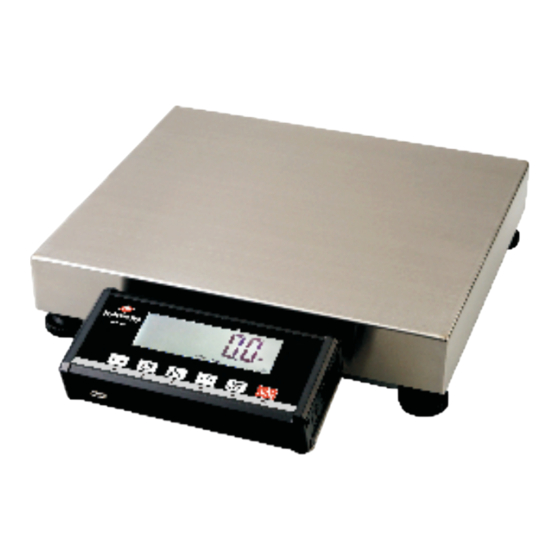

Scale
Balanced Unbalanced
Confirm Connection type
PC Connectors
USB cable RS232 cable
Power Supply
4
or
AC Adapter
USB Cable
(not included)
or / and
6b Connect via RS232 Cable
!! Default Baud Rate: 9600, 8N1 !!
Use an RS232 cable to connect the indicator
with a PC.
AC adapter Lead-seal Kit
or
4xAA batteries
(not included)
USB Cable
PC Connectors
