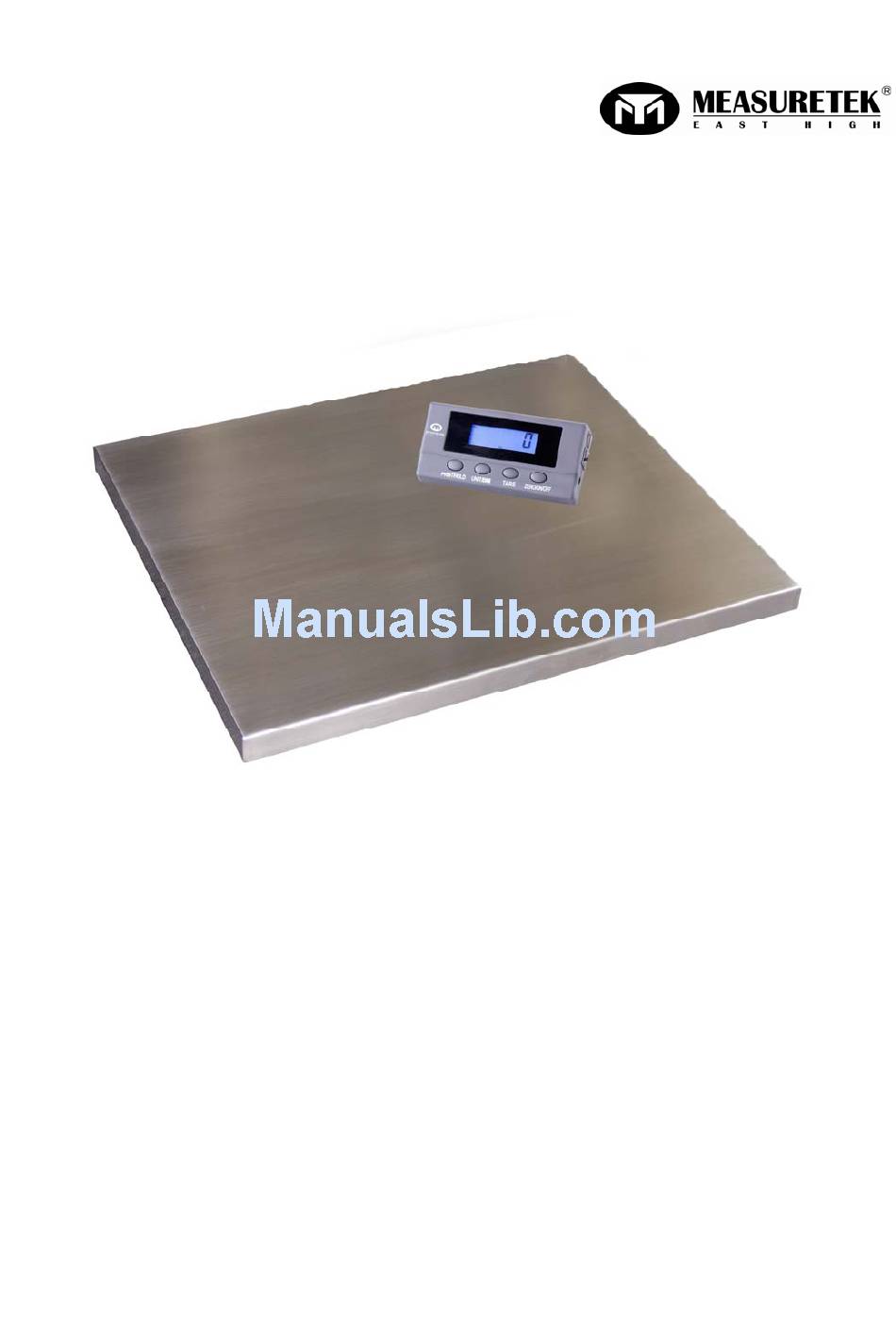

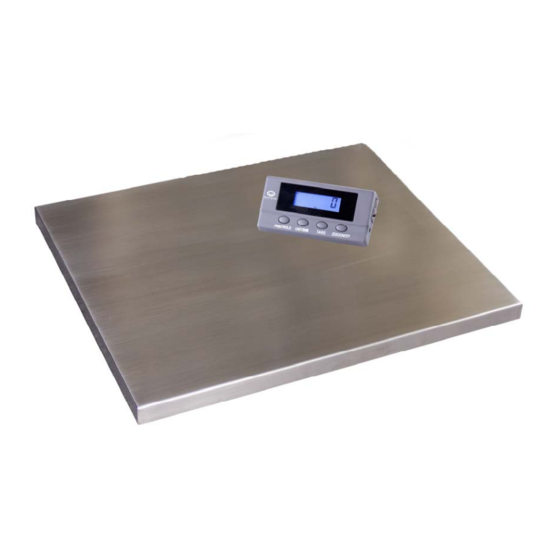

  • Page 1 W W W . M E A S U R E T E K . N E T PS-102 Operation Manual Contents subject to change without notice Version 1.0 11/2011...

  • Page 3: General Information

    If the scale performs poorly, try moving to a different room or location.  Avoid using in heavy vibration or heavy airflow conditions. Specifications Model PS-102-75 PS-102-200 Max Capacity 165lb (75kg) 440lb (200kg) Readability 0.1lb (0.05kg)

  • Page 4: Function Keys

    UNIT ON/OFF/ ZERO Weighing mode Enter calibration mode (more than 3 seconds) TARE Contents  Indicator  Scale platform  Cable from load cell to indicator  6’ USB cable  AC120V/DC6V500mA UL adaptor  Owner’s Manual PS‐102  www.measuretek.net  . 2 . ...

  • Page 5: Calibration Mode

    If “CAL.Er” is displayed, press ZERO/ON/OFF key to exit this mode and begin again. 7. “CAL.P0“will be displayed again. Remove all weight from the platform and press TARE to confirm and enter normal weighing mode. PS‐102  www.measuretek.net  . 3 . ...
  • Page 6  0 = 8N1 – 8 data bits, no parity, 1 stop bit  1 = 7O1 – 7 data bits, 1 bit odd parity, 1 stop bit  2 = 7E1 – 7 data bits, 1 bit even parity, 1 stop bit PS‐102  www.measuretek.net  . 4 . ...

  • Page 7: Serial Communication

    Serial Communication Loadcell Power Before using the USB communication port, download the USB driver from http://www.measuretek.net/Download.html Detailed Serial (USB) Output Information:  U5=0: No serial communication. No data transmitted or received even if the scale is installed with serial communication hardware.
  • Page 8 0= eeprom OK 0=not zero down 0=not AD down 1= eeprom error 1= zero down 1=AD down always 1 always 1 always 1 always 1 always 1 always 1 always 0 always 1 always 0 parity parity parity PS‐102  www.measuretek.net  . 6 . ...
  • Page 9  Response: none Powers off the scale, like pressing ZERO/ON/OFF.  Command: All others  Response: <LF>? <CR><ETX> Unrecognized command. Load Cell Wiring PIN1 ------ Excitation + PIN2 ------ Signal + PIN3 ------ Signal - PIN4 ------ Excitation – PS‐102  www.measuretek.net  . 7 . ...

  • Page 10: Replacement Parts

    One Year Limited Warranty MeasureTek products covered in this manual are guaranteed to be free from defects in material and workmanship for a period of one year after date of purchase. Misuse, accidental damage, overload, alteration, and improper installation are expressly excluded.
