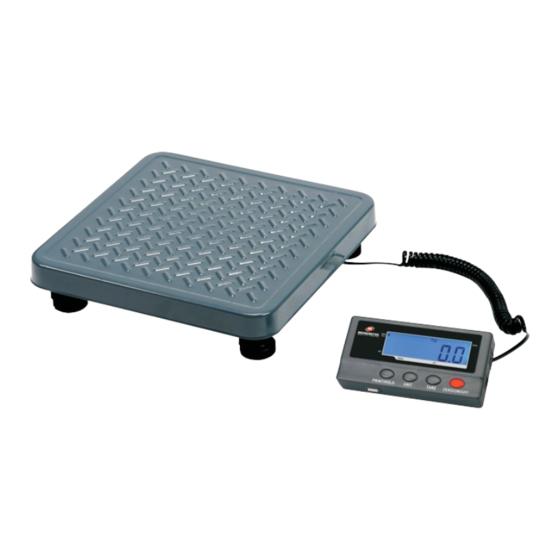

Measuretek PS-102 User Manual
Hide thumbs
Also See for PS-102:
- User's & technical manual (18 pages) ,
- User's & technical manual (17 pages) ,
- Quick manual (2 pages)
Related Manuals for Measuretek PS-102
Summary of Contents for Measuretek PS-102
- Page 1 PS-102 (12R980C - 12R981C) PS-103 (54XY49A - 54XY53A) USER MANUAL Contents subject to change without notice Version 3.0 01/2023...
-
Page 2: Table Of Contents
PS-102 / PS-103 Shipping Scale TABLE OF CONTENTS 1. INTRODUCTION ..................... 1.1 General and Safety Information ............... 1.2 Specifications ....................1.3 Overview of Indicator Display and Controls ............1.3.1 Displays ....................1.3.2 Control Functions .................. 2. OPERATIONS ....................2.1 Turning Scale On/Off and Weighing.............. -
Page 3: Introduction
PS-102 / PS-103 Shipping Scale 1. INTRODUCTION 1.1 General and Safety Information Risk of Electrical Shock: Disconnect all power sources before making cable connections to the floor scale platform or indicator. For use in dry environments only. Do not operate in hazardous areas. -
Page 4: Specifications
PS-102 / PS-103 Shipping Scale 1.2 Specifications Model 12R980C (PS-102-75 ) 12R981C(PS-102-200) Max Capacity 165 lb (75 kg) 440 lb (200 kg) Readability 0.1 lb (0.05 kg) 0.2 lb (0.1 kg) Display resolution 1:1650 1:2200 Min. Recommended 2 lb / 1kg... -
Page 5: Overview Of Indicator Display And Controls
PS-102 / PS-103 Shipping Scale 1.3 Overview of Indicator Display and Controls PRINT/HOLD UNIT TARE ZERO/ON/OFF 1.3.1 Displays ZERO - Scale is zeroed, gross weight 0 and tare 0. - Display reading is net weight; tare is not 0. - Unit of measure is lb or lb:oz... -
Page 6: Operations
PS-102 / PS-103 Shipping Scale 2. OPERATIONS 2.1 Turning Scale On/Off and Weighing To turn the scale on, press the ZERO/ON/OFF button. When the scale displays 0, place objects on center of the platform and read the weight. To turn the scale off, press and hold the... -
Page 7: Hold
PS-102 / PS-103 Shipping Scale 2.5 Hold Use this mode to lock the reading on display. In normal weighing mode, place a load more than 10d on the platform. e.g. 20 lb) Press and hold the PRINT/HOLD button, the HOLD arrow will be on and the reading is locked. -
Page 8: Set Lcd Backlight
PS-102 / PS-103 Shipping Scale 2.7 Set LCD Backlight Use this model to set the backlight mode. The default mode is auto off after 10 seconds without key operation or weight change. In weighing mode, press and hold the ZERO/ON/OFF... -
Page 9: Work With Pc Via Usb Port
PS-102 / PS-103 Shipping Scale 3. WORK WITH PC VIA USB PORT The default baud rate and byte format for USB port in this scale are: Baud Rate (U5) = 9600 Data Format (U6) = 8N1 Output Format (U7) = Output stable data after... - Page 10 PS-102 / PS-103 Shipping Scalee Now the settings are completed, and the scale will start to output data to PC if the PRINT button is pressed. To save the data in PC, click For more details about Serial Communication, please refer to the TECHNICAL MANUAL.
-
Page 11: Calibration
PS-102 / PS-103 Shipping Scale 4. CALIBRATION Calibration should only be performed by individuals with the required technical knowledge. In weighing mode, press and hold the ZERO/ON/OFF TARE button till “CAL-?” is displayed. Press the TARE button to confirm, “CAL.P0" and “0.0" will be displayed. -
Page 12: Troubleshooting
PS-102 / PS-103 Shipping Scale 5. TROUBLESHOOTING Symptom Probable Cause Remedy 1.The AC adapter is not connected 1.Re-plug the AC adapter or rotate the plug to The scale securely. securely connect it to the scale. 2.Low battery. 2.Replace the batteries. - Page 13 PS-102 / PS-103 Shipping Scale Symptom Probable Cause Remedy 1.USER parameters are not 1.Re-set USER parameters per the Technical E E P . E 2 correctly set. Manual. 1.Input data or loaded weight is too 1.Input correct data, and load correct weight onto small or too big.
-
Page 14: Replacement Parts
7. ONE YEAR LIMITED WARRANTY MeasureTek products covered in this Manual are guaranteed to be free from defects in material and workmanship for a period of one year after date of purchase. Misuse, accidental damage, overload, alteration, and improper installation are expressly excluded. Any product which is determined to be... - Page 15 MEASURETEK ENTERPRISE LTD. 245 West Beaver Creek Rd.,Unit 6,Richmondhill, On L4B 1L1, Canada Hot Line: 1-844-747-2253 (after-sale service) E-mail: info@easthigh.com.cn www.easthigh.com.cn...
