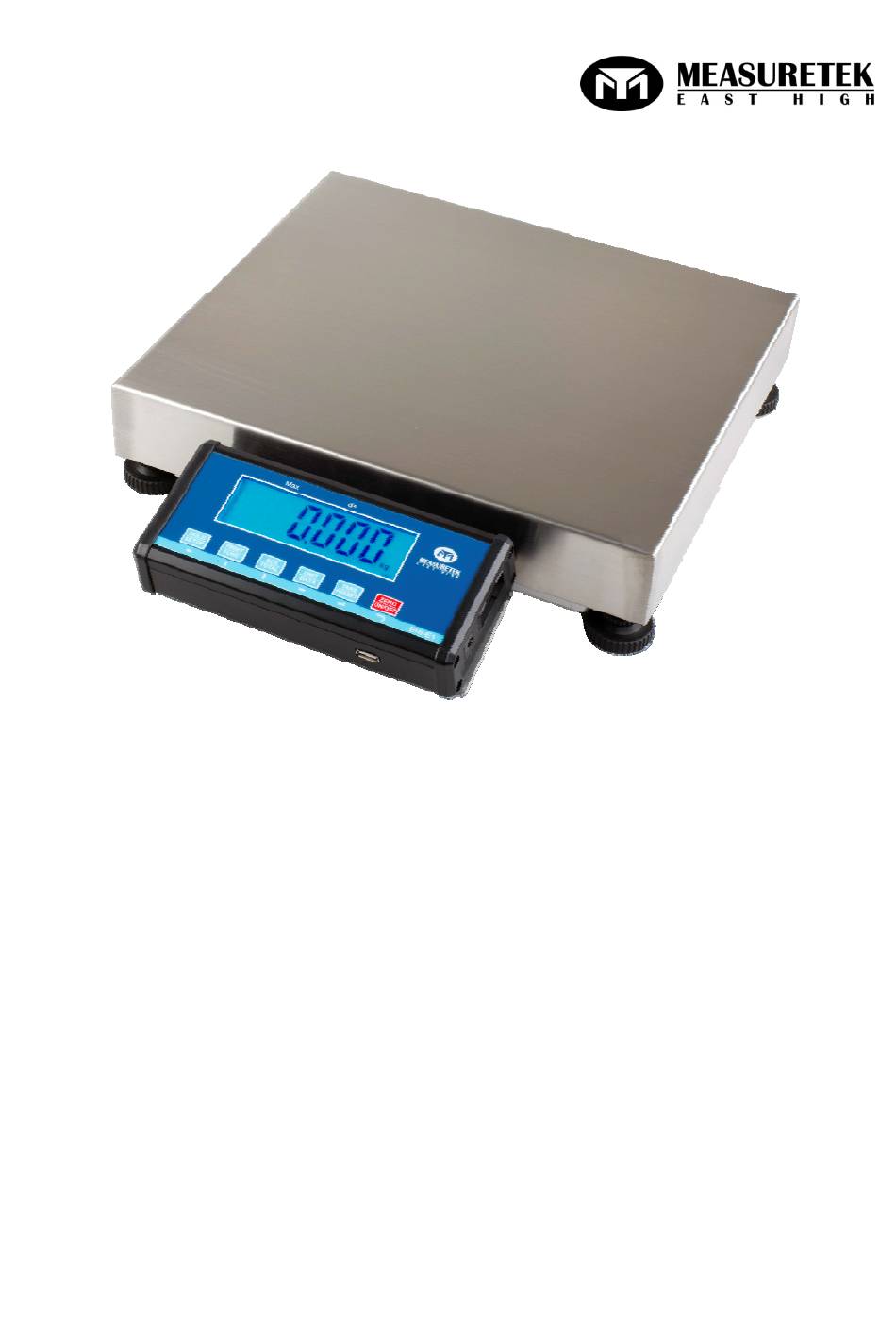

- Page 1 W W W . M E A S U R E T E K . N E T SS60 12R970B User/Technical Manual Contents subject to change without notice Version 04.12 8/2013 ...
-
Page 2: Table Of Contents
Check Counts (counts compare) in Counting mode ....................23 Percent Weighing Mode (closed on SS60).......................24 Check Percent (percentage compare) in Percent weighing mode................25 BMI Working Mode (closed on SS60) ......................26 Weight Fine-tune (closed on SS60).......................26 HOLD Function (closed on SS60).........................27 Details about Serial Communication ......................29 Calibration ........................35... - Page 3 Definitions ........................44 Troubleshooting ......................45 Replacement Parts......................46 One Year Limited Warranty....................46 SS60 www.measuretek.net . ...
-
Page 4: Introduction
Avoid using in heavy vibration or heavy airflow conditions. This also applies when the floor scale is integrated into conveying systems. SS60 www.measuretek.net . ... -
Page 5: Specifications
Specifications 12R970 Model SS60 Max Capacity 150lb (60kg) Readability 0.05lb (0.02kg) Display Resolution 1:3000 Min Recommended Weight 1lb / 0.4kg Construction Die-cast aluminum base, stainless steel platform Weighing Units lb / kg / lb:oz Calibration unit Application Modes Weighing / Counting / Check weighing Display 6-digit, 7-segment, 1"... -
Page 6: Installation
Install the batteries or plug in the adapter. Now the scale is ready for use. S/S platform. The SS60 indicator and platform are NTEP certified, making the scale capable of being used in Legal for Trade applications. However, the scale is not Legal for Trade until it has been certified and registered by an authorized Weights and Measures agent. -
Page 7: Overview Of Controls And Functions
3. OVERVIEW OF CONTROLS AND FUNCTIONS Indicator Display Character Definitions SS60 www.measuretek.net . ... -
Page 8: Indicator Display
LO - Data compare is enabled. Current data is below the specified lower limit. (The model 12R970 is NTEP certified, so part of the functions are closed, and the corresponding announciator will not be displayed as well.) SS60 www.measuretek.net . ... -
Page 9: Function Keys
Percent mode Input data mode Ignores the modification Menu selection mode Exits from current working mode Note: Normally, the second function of a key needs to be pressed down for more than 3 seconds to get activated. SS60 www.measuretek.net . ... -
Page 10: Operation Menu Structure
0. 0 5 The division value under primary unit; the division value 0.0002 under second unit is automatically determined by 0.0005 indicator according to the division value under primary 0.001 unit. 0.002 0.005 0.01 0.02 0.05 SS60 www.measuretek.net . ... - Page 11 Choose which weight as current initial zero point when current weight is in IZSM range: WEIGHT= current weight ; IN.IZSM CAL. Z RO WEIGHT CAL.ZRO= calibration zero; LAST.Z.T=switch-off zero and tare LAST. Z . T If (REGULAR)≠none, the value is fixed on WEIGHT SS60 www.measuretek.net . ...
- Page 12 Percent weighing function is enabled or disabled: FUNC NO=disable; 100% PERCNT 100%=enable and display format is 100% ; 100. 0 % 100.0%=enable and display format is 100.0%; 100.00%=enable and display format is 100.00%; 100. 0 0% Yes/No=enable/disable BMI function, SS60 www.measuretek.net . ...
- Page 13 Yes/No=enable/disable weight fine-tuning using keypad WT.ADJ in weighing mode, if (REGULAR)≠none, this item will not be shown. * The setting will be limited by choice of REGUALA CONFIG settings should only be performed by individuals with the required technical knowledge. SS60 www.measuretek.net . ...
-
Page 14: User Submenu
Yes/No=enable/disable output scale's ID number, Prompt is SCAL.ID “SCALE ID” Yes/No=enable/disable output gross weight. Prompt is GROSS “GROSS” OUT1 TARE Yes/No=enable/disable output tare weight. Prompt is “TARE” Yes/No=enable/disable output net weight. Prompt is “NET” Yes/No=enable/disable output weight percentage. Prompt is PERCNT “PERCENTAGE” SS60 www.measuretek.net . ... - Page 15 OUT. M OD PRT. C MD PRT.CMD= output after PRINT key pressed or request command received; PRT. C MD STABLE=output after scale is stable; Note: use PRINT or CMD to output data, the scale must be STABLE stable. SS60 www.measuretek.net . ...
- Page 16 Yes/No=enable/disable output scale's status. Prompt is STATUS “STATUS” NONE How many blank lines after strings output: LINE1 NONE=no blank line,; B.LINE LINE2 LINE1 LINE1/2/3/4=there're 1, 2,3 or 4 blank lines after strings, LINE3 used for paper feed forward 1/2/3/4 lines. LINE4 SS60 www.measuretek.net . ...
- Page 17 1-255=the range of weight is 1-255d; when current weight is less than this value, the scale can be regarded as empty , or OTHER NLD. R NG 1-255 the load on scale is removed. It must be bigger than (CONFI.MOTION). SS60 www.measuretek.net . ...
- Page 18 2=press down ZERO+UNIT keys together more than 3s to turn on or turn off; 3-255=auto on when key operation or weight changing, auto off after 3-255s elapsed. LCD. C ST CST1-8 CST8 LCD contraction level selection 000000- SCAL.ID 123456 scale's ID number: 000000-999999 999999 SS60 www.measuretek.net . ...
-
Page 19: Cal Submenu
Selection of Geographical Position Code 00-70 9.76183 GRAVT Input Gravity of User Location by keyboard -9.99999 INPUT Input or view calibration parameters value CAL. E ND Calibration end and restart NOTE: For more details, please refer to section “6.CALIBRATION” SS60 www.measuretek.net . ... -
Page 20: Misc Submenu
COM2. R D Test COM2 receiving; for more details refer to section8 COM2. T D Test COM2 transmitting; for more details refer to section8 KEY. T ST Test keys and buzzer; for more details refer to section8 SS60 www.measuretek.net . ... -
Page 21: Operations
0.005kg 0.01 lb 0.2oz 0.2 oz 0.05kg 0.05kg 0.1 lb 0.5kg 0.5kg 500g 1 lb 20oz Not available Not available 10 lb Not available Not available 50kg 50kg Not available Not available Not available Not available SS60 www.measuretek.net . ... -
Page 22: Zero
1. Zero the scale as described above. Pr. T are 2. Press and hold the TARE/PRESET key until “ ” is displayed, then the tare weight will be displayed. The first digit and NET will flash in the display. SS60 www.measuretek.net . ... -
Page 23: Check Weighing (Data Compare) In Normal Weighing Mode
1. With a load on the scale, press the ACC/TOTAL key to add the displayed value to the accumulated SS60 www.measuretek.net . ... -
Page 24: Counting Mode
TARE/PRESET key to confirm. 000000 iii. The previously entered piece weight will be shown (the default value is ). Use SS60 www.measuretek.net . ... -
Page 25: Check Counts (Counts Compare) In Counting Mode
The HI Announciator on the display will be lit. Use the keys to input the upper limit of the range (weight, piece quantity, or percentage depending on initial mode) and press the TARE/PRESET key to confirm and move to SS60 www.measuretek.net . ... -
Page 26: Percent Weighing Mode (Closed On Ss60)
HI or LO Announciator on the display will be lit with no audible beep. Audible beep parameters can be changed from their defaults in User Setup mode. Percent Weighing Mode (closed on SS60) In this mode, the scale will weigh the unit on the platform, calculate and display its percentage after the unit-percentage-weight of goods is obtained. -
Page 27: Check Percent (Percentage Compare) In Percent Weighing Mode
TARE/PRESET key to confirm. Announciator of LO will be shown in this step. Press ZERO/ON/OFF key to exit and return to counting mode. SS60 www.measuretek.net . ... -
Page 28: Bmi Working Mode (Closed On Ss60)
4. After a reasonable limitation is set and compare is active, one of announciators HI, OK, LO will be displayed, and the beeper will sound according to the setting in USER-BEEP. BMI Working Mode (closed on SS60) 1. For BMI working Mode to be available, CONFIG-FUNC-BMI menu item should be set to YES. -
Page 29: Hold Function (Closed On Ss60)
, and then press TARE/PRESET to confirm and exit to normal weighing mode. HOLD Function (closed on SS60) NOTE: In trade application, HOLD function should be prohibited! 1. HOLD function can be used to freeze the display number. In this mode, scale can catch a dynamic number, hold a stable number, or average an unstable number, then HOLD (freeze) this number temporary for the user to watch or record. - Page 30 4. In Positive or Negative Peak HOLD mode, the PEAK and HOLD announciator will be lit, and for other HOLD modes, the HOLD announciator will be lit. When HOLD announciator is flashing, the displayed number is live. When HOLD announciator becomes steady, the displayed number is frozen. SS60 www.measuretek.net . ...
-
Page 31: Details About Serial Communication
1= at zero point 1= over capacity 0=RAM ok 0=ROM ok 0= gross weight 0=not in HOLD 1= RAM error 1=ROM error 1= net weight 1=in HOLD 0= eeprom OK 0=calibration ok 0=initial zero ok 0=battery ok SS60 www.measuretek.net . ... - Page 32 <LF> U <CR><LF> H <CR><ETX> Command: L<CR> (4ch 0dh) Response: If Hold function can be activated, it will enable/disable hold function (simulate HOLD key), and returns scale status. <LF> H <CR><ETX> vii. Command: X<CR> (58h 0dh) SS60 www.measuretek.net . ...
- Page 33 (3) The details of <Prompt> refer to the content in USER Submenu. (4) In hold mode, if ADC conversion speed is set high speed (80Hz), and MULTPL USER-COM1/2-LAYOUT is set to , and many contents are selected to output, the SS60 www.measuretek.net . ...
- Page 34 This protocol of serial communication is similar to the TOLEDO PS60 protocol. The baud rate and data format is set by User menu. b. Output status bit meaning: Status Byte 0=Stable weight data 1=Scale in motion 0= Within weighing range SS60 www.measuretek.net . ...
- Page 35 1 = ROM error 1= RAM okay 0 = ROM okay 0= EEPROM error 1 = Faulty calibration 1= EEPROM okay 0 = Calibration okay Always 1 Always 1 always 1 always 1 always 0 always 0 parity parity SS60 www.measuretek.net . ...
- Page 36 Un-known commands: <LF>?<CR> e. If your indicator is needed to work with UPS worldship, please try following settings: (1) USER-COM1(or 2)-BAUD.RT=4800 (2) USER-COM1(or 2)-BYT.FMT=7E1 (3) USER-COM1(or 2)-LAYOUT=SCP-12 (4) Set scale port to NCI3835 in UPS worldship. SS60 www.measuretek.net . ...
-
Page 37: Calibration
Before entering this value, you can press and hold the UNIT/DATA key to change the unit of measure to kg or lb. Press the TARE/PRESET key to confirm, then the indicator will flash the input standard weight. When this weight number SS60 www.measuretek.net . ... - Page 38 Changing the geographical setting alters the calibration values !!! Input Calibration INPUT 7. When is selected, press TARE/PRESET key to confirm to enter Input calibration, to view parameters values that were calculated before, to view current calibration parameters value. SS60 www.measuretek.net . ...
- Page 39 8. After the indicator receives all the necessary data, it will calculate and store all calibration CAL. E nd parameters into EEPROM, and after finishing the calibration it will display . Then, it will re-start and return to original mode. SS60 www.measuretek.net . ...
- Page 40 SS60 www.measuretek.net . ...
-
Page 41: Misc
1. To enter this working mode, press and hold the SETUP key until is shown, using MISC-VoL key to go to item, press TARE/PRESET to enter this mode and display battery voltage. 2. If the voltage is not correct, refer to the following steps to calibrate the voltage: SS60 www.measuretek.net . ... -
Page 42: View Or Set Date
TARE/PRESET to display current Version. 2. Firmware Version display Format is: xx.yy, xx is hardware version, yy is software version. 3. Press the SETUP key to return to the last menu item, press the ZERO/ON/OFF key to exit. SS60 www.measuretek.net . ... -
Page 43: Test
-- will be displayed. 2. In this mode, press a key, the value of this key will be displayed on -- position and buzzer will beep depending on what the USER-BEEP-KEY item is set to. SS60 www.measuretek.net . ... -
Page 44: Connectors And Jumpers
Power ground 0Vdc 3. BAT---Battery Power Input Connector PIN # DEFINITION IN/OUT/POWER ELECTRICAL LEVEL Battery input voltage + Power input 4-6.8Vdc Battery input voltage – (GND) Power ground 0Vdc Temperature sensor on Battery input Power ground SS60 www.measuretek.net . ... - Page 45 6. KCAK Jumper set: CONNECTED PINS FUNCTION Calibration enabled Calibration disabled 7. JP1 Jumper: CONNECTED PINS FUNCTION Two shorter on pin1-2: 4 wires load cell is used Two shorter on pin2-3: 6 wires load cell is used SS60 www.measuretek.net . ...
-
Page 46: Definitions
INP. P CS - Input pieces number of weighted goods SPL. P CT - Sample goods weight to calculate unit percent weight INP. P CT - Input percentage of weighted goods ACC. xxx - Accumulation times is xxx SS60 www.measuretek.net . ... -
Page 47: Troubleshooting
Remove load on scale. 1. Load on scale exceeds allowable limits. Wait for load to become stable. then （2%FS） Cannot zero the display press the ZERO/ON/OFF key to zero the 2. Load on the scale is unstable display SS60 www.measuretek.net . ... -
Page 48: Replacement Parts
Underside foot 13. One Year Limited Warranty MeasureTek products covered in this manual are guaranteed to be free from defects in material and workmanship for a period of one year after date of purchase. Misuse, accidental damage, overload, alteration, and improper installation are expressly excluded. Any product which is determined to be...
