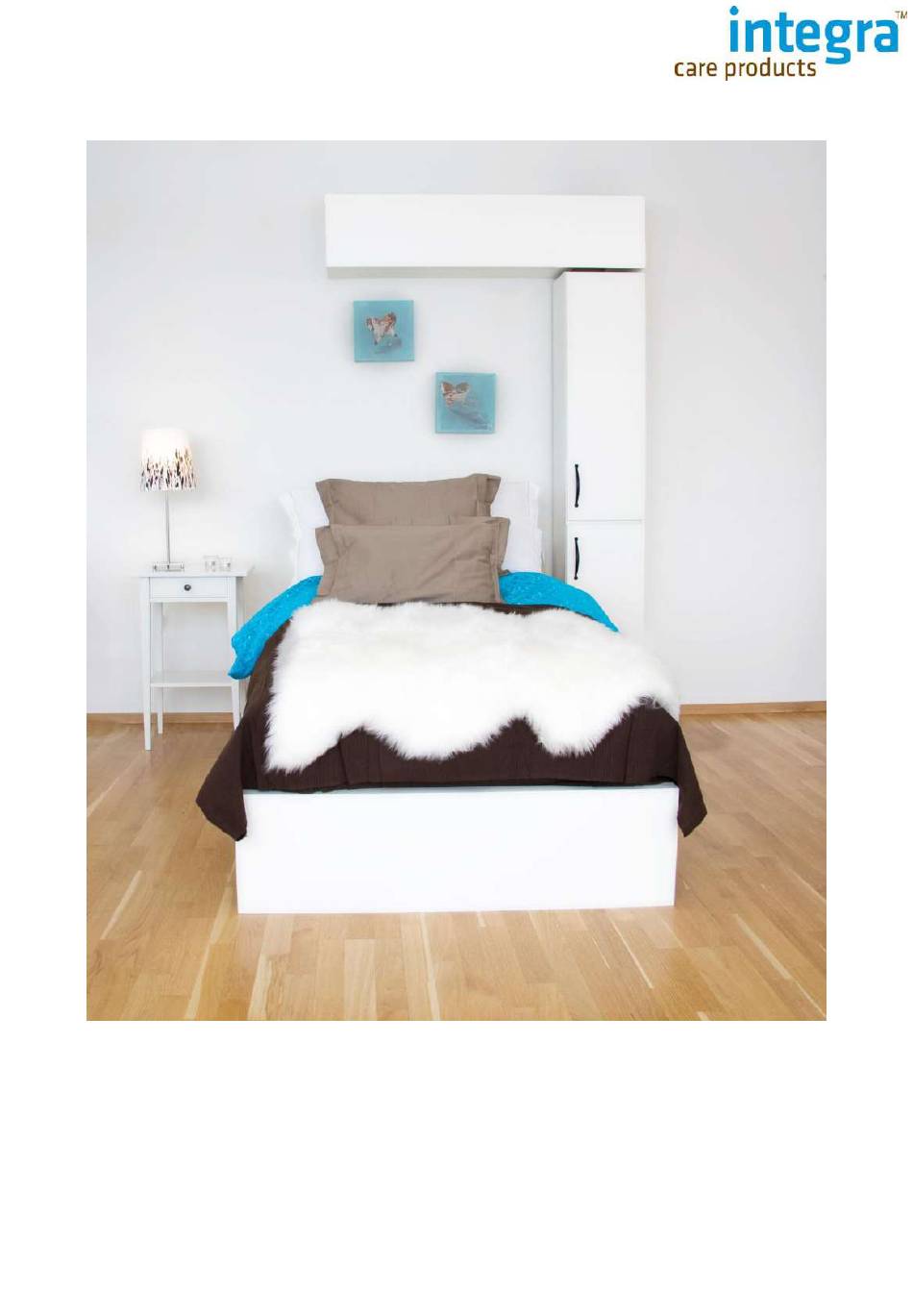

- Page 1 Integralift 230 SWL 230kg User manual, English revision 2.6...
-
Page 2: Table Of Contents
6. Handling ........................8 7. Lift and movement .....................10 8. Sling Program ......................15 9. Maintenance ......................16 10. Technical Data ......................17 11. Simple Troubleshooting .....................18 Explanation of symbols Warning Read User manual Product for indoor use Integralift 230 User manual rev 2.6... -
Page 3: Safety
Integralift. This product must be installed by authorized personnel only. Do not modify the equipment. Only use parts delivered by Integra. Do not leave the User suspended in the sling. Before first time use make sure that:... -
Page 4: Product Description
Everything in place- always. The Lifting bar, sling and remote in dedicated places No charging routines. Connected to mains and always fully charged Flexible dropping points Easy installing Integralift can be easily fitted in most homes or institutions. Integralift 230 User manual rev 2.6... -
Page 5: Main Components
1. Vertical cabinet 5. Front jib 8. Lifting bar 2. Top cabinet 6. Battery charger: 24V 9. Remote control MASCOT 9940 3. Vertical structure 10. Emergency stop 7. Lift strap 4. Back jib 11. Sling Integralift 230 User manual rev 2.6... -
Page 6: Dimensions
4. Dimensions Model Capacity WM-230 230 kg FC-230 230 kg 230-330 IW-230 230 kg 230-500 All measurements (A-G) in centimeters. Integralift 230 User manual rev 2.6... -
Page 7: Before First Time Use
The lifter’s battery charger is always connected to the batteries and the charger should always be connected to a 100-240V AC electric socket. Backup battery In case of a power cut the lifter has a backup battery that lasts until 40 lifts before recharging. Integralift 230 User manual rev 2.6... -
Page 8: Handling
The emergency stop is activated by pulling the red string so that the socket comes off, and you will hear three beeps. In order to reset the emergency stop push the socket back in. You will then hear two beeps. Integralift 230 User manual rev 2.6... - Page 9 Warning: If you have been forced to use the mechanical emergency lowering device contact your service partner (see backside of this user manual) before further use of the lifter. Integralift 230 User manual rev 2.6...
-
Page 10: Lift And Movement
Make sure the User is sitting securely in the sling before the transfer The User should hang as low as possible during transfer facing the direction of the movement Never leave the User unattended in the sling Integralift 230 User manual rev 2.6... - Page 11 If the bed can be raised to a sitting position this will ease the strain for the User. Alternative 1: sling from the side Alternative 2: sling from the back Cross the leg support- one loop through the other. Integralift 230 User manual rev 2.6...
- Page 12 Grab the Lifting bar, swing the lifter forward and orient it above the User. Unhook the Lifting bar from the handle. Lower or raise the Lifting bar to the correct height just above the User. Close the vertical cabinet. Integralift 230 User manual rev 2.6...
- Page 13 Warning: If the lifter should stop and start beeping, the lifter may be overburdened. Make sure that the sling does not get stuck. If the user weighs more than the safe working load abort the lift immediately! Integralift 230 User manual rev 2.6...
- Page 14 Place the remote control on the handle closest to the red string and the Lifting bar on the other handle. Swing the lifter back in the cabinet. HINT: Do not raise the Lifting bar after use. Then it will be in the correct height for the next lift. Integralift 230 User manual rev 2.6...
-
Page 15: Sling Program
8. Sling Program Integra’s own range of slings make the transfer secure and comfortable for both User and Assistant. A special attention has been given to an easy placement of the sling under the User. To ensure the best function and comfort, Integra recommends individual testing of slings. -
Page 16: Maintenance
The owner of the product must make sure that the annual inspection is carried out. Contact your supplier or service partner for a service agreement. Warranty Integralift has 2 years warranty. Warranty information is obtained from the supplier. Integralift 230 User manual rev 2.6... -
Page 17: Technical Data
Type B, in accordance with the electrical shock protection class Class I equipment in accordance with MDD 93/42/EEC Temperature: -10 grd C og+40grd C Relative humidity 10% til 93% Lightning level /ambient luminance minimum 300 lux Integralift 230 User manual rev 2.6... -
Page 18: Simple Troubleshooting
3. Make sure that the sling is not stuck The lifter makes 1. Contact your service partner. See last page unusual sounds EMC interference 1. If experiencing interference with other products consult the dealer or an experienced radio/TV technician for help Integralift 230 User manual rev 2.6... - Page 19 Integralift 230 User manual rev 2.6...
- Page 20 Dealer: Producer: Integra Care Products AS Darres gate 22, 0175 Oslo-NO Phone: +47 21 98 26 84 E-mail: info@integralift.net www.integralift.net Integralift 230 User manual rev 2.6...
