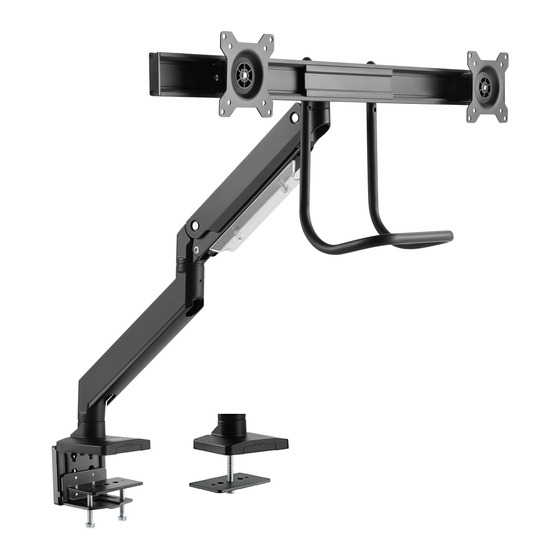

Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V101G2
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101g2
help@vivo-us.com
www.vivo-us.com
1-800-371-5654
Advertisement
Related Manuals for Vivo STAND-V101G2
Summary of Contents for Vivo STAND-V101G2
- Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V101G2 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101g2 help@vivo-us.com www.vivo-us.com 1-800-371-5654...
- Page 2 TOOLS NEEDED WARNING! DO NOT EXCEED WEIGHT CAPACITY. 33 lbs Failure to do so may result in serious injury. (15 kg) If you do not understand these directions, or if you have any doubts about the safety of the PER ARM installation, please call a qualified technician.
- Page 3 STEP 1 (Continued) STEP 4 Option B: Grommet Base Installation Install monitor arm (D) to gas spring arm using bolts (O) and tighten with 4mm Allen wrench. Attach grommet plate (H) to base (A) using flat head bolts (M) and tighten with 4mm Allen wrench (S).
- Page 4 STEP 7 STEP 10 Place the monitors with VESA plates into the supports on the arm, then turn Organize cables, then reinstall cable covers to arms. the screw on each support to secure the monitors. STEP 8 STEP 11 For safety, please do not extend the monitor behind the desk. This may cause instability and tip the If needed, adjust gas spring arm to support the monitors using the 6mm Allen wrench.
- Page 5 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
