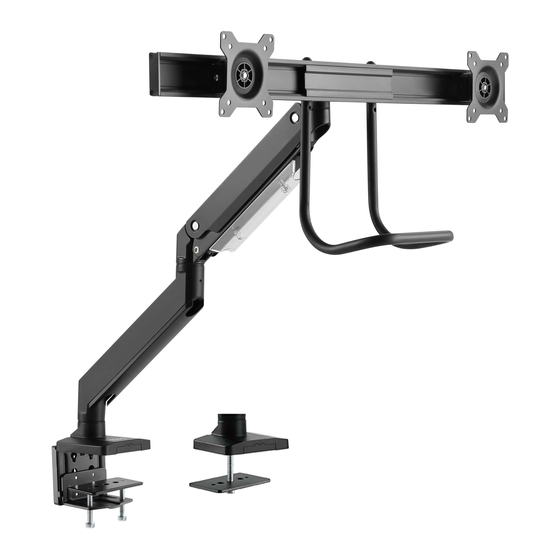

Pneumatic Arm Dual Monitor Desk Mount with Pull Handle
Instruction Manual
SKU: STAND-V101G2
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101g2
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V101G2
Summary of Contents for Vivo STAND-V101G2
- Page 1 Pneumatic Arm Dual Monitor Desk Mount with Pull Handle Instruction Manual SKU: STAND-V101G2 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101g2 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 2.2-17.6lbs Failure to do so may result in serious injury. (1-8kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Attach clamp brace (K) to base (A) using M6x12 flat head bolts (M) and tighten with 4mm Allen wrench (Q). - Page 4 STEP 1 (Continued) OPTION B: Grommet Base Installation Attach grommet plate (H) to base (A) using M6x12 flat head bolts (M) and tighten with 4mm Allen wrench (Q). Apply soft pad (I) to underside of base. Position base over grommet hole in desktop, or drill a 3/8”...
- Page 5 STEP 4 Install monitor arm (D) to gas spring arm using M6x12 bolts (N) and tighten with 4mm Allen wrench (Q). STEP 5 Mount handle (F) to back of monitor arm using M6x22 bolts (O) to one of the positions shown in the diagram according to the size of your monitors.
- Page 6 STEP 7 Place the monitors with VESA plates into the supports on the arm, then turn the screw on each support to secure the monitors. STEP 8 If needed, adjust gas spring arm to support the monitors using the 6mm Allen wrench (R). While holding arm in the straight forward position, turn the screw in back clockwise to decrease support, and counter-clockwise to increase.
- Page 7 STEP 10 Organize cables, then reinstall cable covers to arms. STEP 11 For safety, please do not extend the monitors behind the desk. This may cause instability and tip the desk over STEP 12 Turn the screw underneath each monitor support bracket for leveling. Tools may be stored in the cover (J).
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! AVG. RESOLUTION TIME : 5M 4S 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
