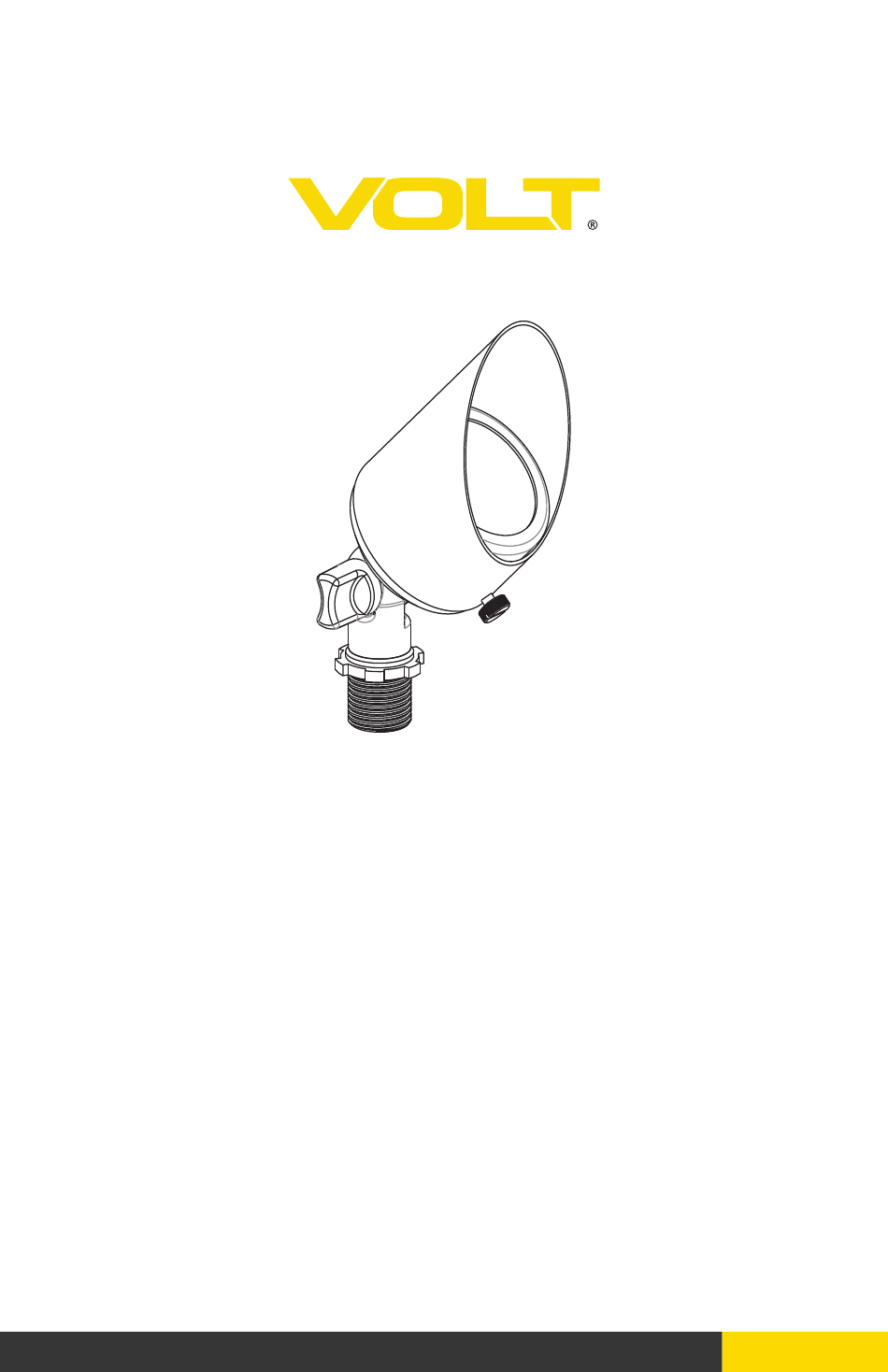

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® ITEM: AZAL-SPKIT2 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS AZAL-SPKIT2 IMPORTANT: PLEASE READ BEFORE INSTALLATION This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Fixture Body B. (1) Stake PRODUCT DIMENSION 2.24” 4.1” 2.13” 3.1” 1.14” INSTALL FIXTURE TO STAKE Pass the supply wires of the fixture body through the center hole on the stake. Thread the fixture body onto the stake. Fixture Body Stake Supply Wires... -
Page 4: Wire Connection
INSTALLATION INSTRUCTIONS AZAL-SPKIT2 INSERT STAKE TO SOIL Insert the stake into the Fixture Body desired soil until flange of stake is flush to the ground. Stake Ground Soil WIRE CONNECTION Strip both leads from Fixture Body fixture pigtail. Using two... - Page 5 WIRE CONNECTION Loosen the thumb screw at the joint and adjust the ROTATE luminaire to the desired directions. Once the desired Thumb direction is achieved, tighten Screw the thumb screw. Luminaire 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 6 INSTALLATION INSTRUCTIONS AZAL-SPKIT2 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 7 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 8 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2024, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
