INSTALLATION INSTRUCTIONS
VOLT
®
VOLT
®
VAL-2001 Series
Specifications and product details subject to change without notice.
© Copyright 2019, VOLT
reserved. customersupport@voltlighting.com • 813.978.3700
Low Voltage Landscape Lighting
All-Star
Mini
TM
Lighting, Lutz FL USA 33549 • All rights
®
- 1 -
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Volt VAL-2001 Series
Summary of Contents for Volt VAL-2001 Series
- Page 1 Low Voltage Landscape Lighting ® VOLT All-Star Mini ® VAL-2001 Series Specifications and product details subject to change without notice. © Copyright 2019, VOLT Lighting, Lutz FL USA 33549 • All rights ® reserved. customersupport@voltlighting.com • 813.978.3700 - 1 -...

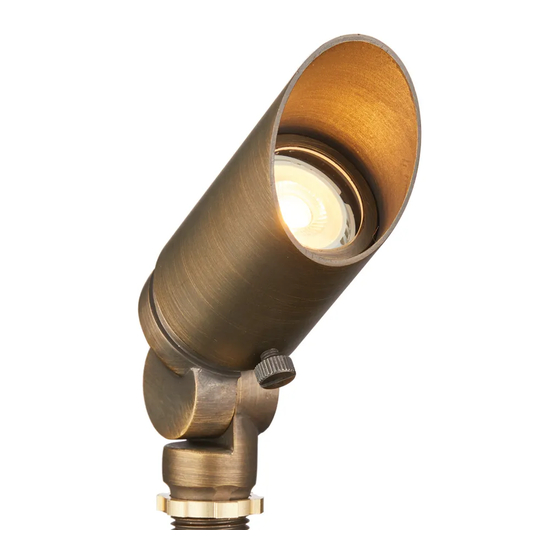

- Page 2 INSTALLATION INSTRUCTIONS Package Contents VOLT All-Star Mini ® A. Fixture VAL-2001 B. Stake Important: Please Read Before Installation Parts Required This luminaire is intended for installation in accordance with local codes and the A. (1) MR11 Lamp (sold separately) National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 INSTALLATION INSTRUCTIONS Install Stake VOLT All-Star Mini ® VAL-2001 Board Determine the desired location for mounting the fixture. Hammer the stake into the ground until flange of Install MR11 Lamp stake is flush to grade. To avoid damage to the stake, place a board on top of...
- Page 4 INSTALLATION INSTRUCTIONS VOLT All-Star Mini ® VAL-2001 Wire Connections Pigtail Wire Connectors Main Supply Cable Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads.
