- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® ITEM: AZPL-PLKIT2 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS VOLT AZPL-PLKIT2 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents

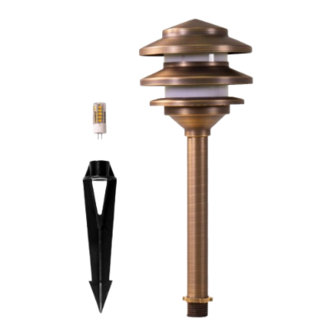

PACKAGE CONTENTS A. (1) Pagoda Top C. (1) G4 Bulb B. (1) Stem D. (1) Stake PRODUCT DIMENSIONS 4.25” 4.75” 10.5” REMOVE THE TOP Twist the pagoda top and remove it from the stem. Pagoda Top Stem 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com... - Page 4 INSTALLATION INSTRUCTIONS VOLT AZPL-PLKIT2 ® INSTALL G4 BULB Insert G4 bulb with correct wattage and type marked on fixture label. G4 Bulb CAUTION: Do not exceed maximum wattage marked on luminaire label. Socket NOTE: DO NOT touch G4 bulb with bare hands.
- Page 5 INSTALL STAKE Determine your desired location for mounting the transformer. Board Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammering. Stake Note: If the ground is hard and the stake is difficult to install,...
-
Page 6: Wire Connections
INSTALLATION INSTRUCTIONS VOLT AZPL-PLKIT2 ® WIRE CONNECTIONS Supply Wires Wire Connectors Main Supply Cable Strip two leads from fixture supply wires. Using two UL listed wire connectors (not provided), connect leads from fixture supply wires to main supply cable leads. - Page 7 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com...
- Page 8 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2024, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
