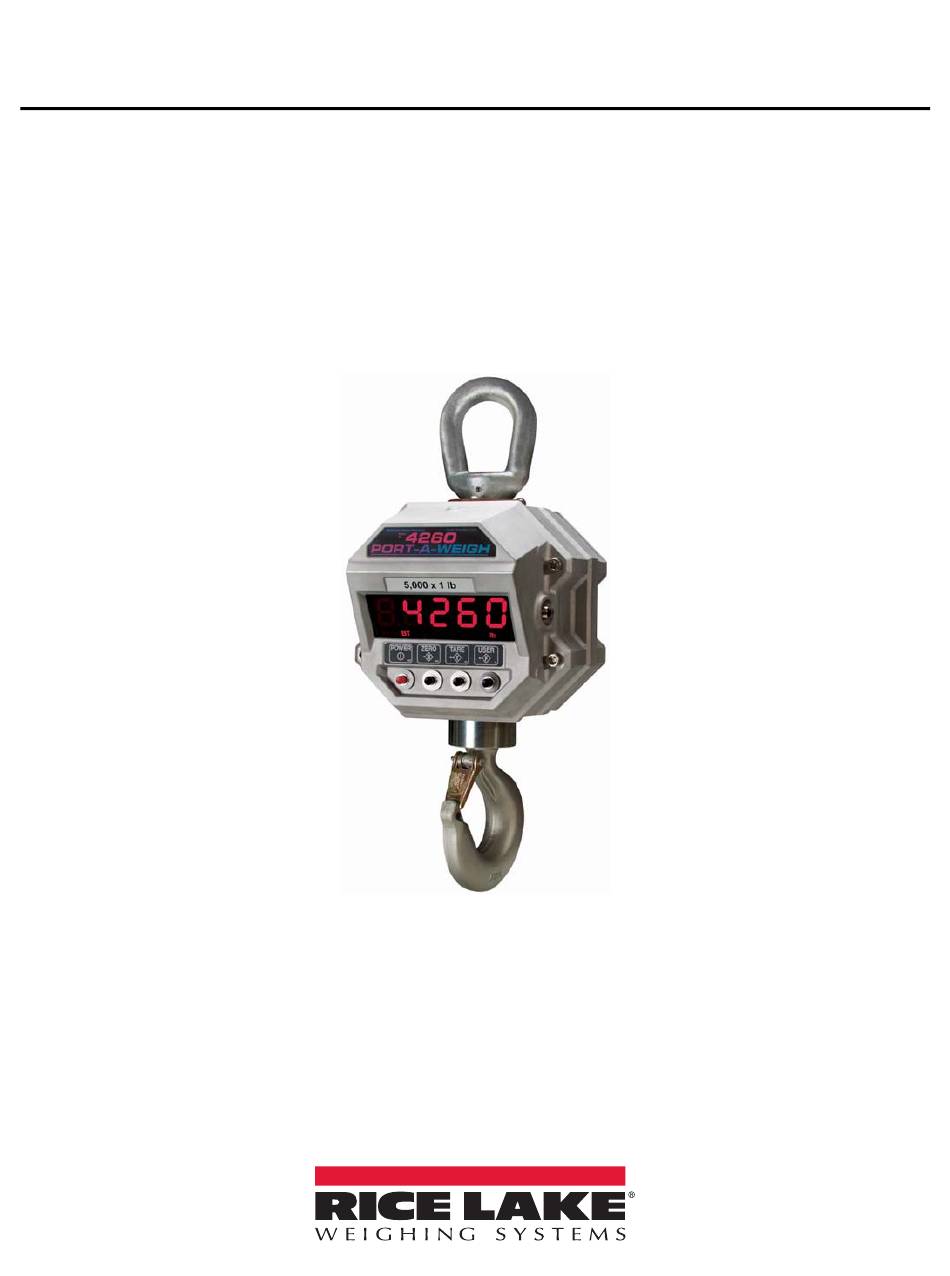

- Page 1 MSI-4260 Port-A-Weigh Crane Scales Technical Manual PN 152159 Rev C...
-
Page 3: Table Of Contents
Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. © Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice. - Page 4 8.3 MSI-4260 Port-A-Weigh Dimensions ........
-
Page 5: Introduction
1.0 Introduction The MSI-4260 Port-A-Weigh has an established reputation as the industry standard in medium to heavy-capacity overhead weighing and duty-cycle needs. With a proven mechanical design and advanced electronics, the MSI- 4260 is versatile, reliable, accurate and user friendly. -
Page 6: Safety
Periodic Maintenance Manual (available at www.ricelake.com). Keep hands, feet and loose clothing away from moving parts. There are no user serviceable parts within the MSI-4260. Any repairs are to be performed by qualified service personnel only. The MSI-4260 Port-A-Weigh scale has a safe mechanical overload of 200 percent and an ultimate overload of 500 percent. -
Page 7: Display
Display The keys and display of the MSI-4260 front panel is described below. RS-232 serial port Sealed calibration switch Section 7.0 on page 28 Section 5.1 on page 19 POWER ZERO TARE USER IP-68 rated push buttons Figure 1-1. MSI-4260 Front Panel 1.3.1... -
Page 8: Annunciators And Leds
85-265 VAC input power Replaces 12V SLA Battery with Hardwired AC Power Cord Consult Audible Alarm Is triggered by setpoint one. Takes up Scale’s modem port, must be in remote display if one is present Table 1-3. Available Options MSI-4260 Port-A-Weigh Crane Scale... -
Page 9: Installation
Installation The MSI-4260 features a heavy duty, cast aluminum enclosure rated at NEMA Type 4 IP 66. It installs easily by hanging it on a crane using properly sized shackles. Refer to the Crane Scale Safety and Periodic Maintenance Manual (PN 153105) for safe loading and WARNING rigging guidelines when installing the model MSI-4260. -
Page 10: Battery Charger
• If the MSI-4260 is not going to used again soon, remove the SLA battery to prevent deep discharge while the unit is in storage. • Recycle the battery at an authorized recycling center when the average life drops to 20 hours or less. -
Page 11: Battery Replacement
The MSI-4260 has a single Communications Port allowing access to the embedded ScaleCore through the terminal access mode or Rice Lake software. The terminal access mode is used for updating scale firmware while Rice Lake software can be used for calibration and configuration, backup and adjusting scale settings. This Communications Port is not intended for output use. -
Page 12: Servicing
Figure 2-3. Comm Port Cable Assignments Examples Servicing Rice Lake’s dealer network provides both on-site and depot servicing of MSI-4260 crane scales. Please contact a local dealer or Rice Lake Weighing Systems to obtain a return material authorization (RMA). Due to the weight and size of many of the product, it is not always necessary to return the whole scale. -
Page 13: Rf Connectivity
FCC Statement Contains FCC ID: OUR-XBEEPRO The MSI-4260 complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (i.) this device may not cause harmful interference. (ii.) this device must accept any interference received, including interference that may cause undesired operation. -
Page 14: Operation
The following sections describe the basic operation of the MSI-4260. Navigation of Menus • If a function key does not work, it is probably because the MSI-4260 is not set up to support the key. For example, if the Function Key is set for , the mode must also be set up in the Setup Menu. -
Page 15: Tare
The weight reading must be stable within the motion window for the tare function to work. The scale digits display 0 (or 0.0 or 0.00, etc) and the weight mode changes to NET. The backup memory in the MSI-4260 stores the Tare reading and can restore it even if power fails. TARE To clear the tare and revert to gross weight, press will display. -
Page 16: Setup
Setup The following keys can be used when navigating through the menus while setting up the MSI-4260. POWER • Press to exit setup without saving changes. displays momentarily and unit enters weigh mode. POWER • To enter a decimal point, press while the digit is blinking. -
Page 17: Set Function Key
4.1.1 Set Function Key USER The MSI-4260 has one user definable key ( ) on the front panel, that can be programmed to one of several functions. The additional function key is available on the RF remote control being used. -
Page 18: Total
Units can be changed in two ways. • Program a user function key to units • Change the units with the setup menu using the following steps. Unit switching is not available on OIML certified Legal for Trade scales. MSI-4260 Port-A-Weigh Crane Scale... -
Page 19: Print
4.1.9 Print If a print option is installed this menu choice will appear. The setup of the print function is covered in the option manual. Auto- Off feature prolongs the battery life by powering off the unit when not in use. Whenever a button is Auto-Off pressed or the detected load is in motion exceeding 10d, the time limit is reset. -
Page 20: Display Brightness
Setpoint 1 is Blue Setpoint 2 is Green Setpoint 3 is Red Figure 4-1. Setpoint LED’s The MSI-4260 has an audible output option that is triggered by Setpoint 1. Contact Rice Lake Weighing Systems for other setpoint output options. Setpoint Description Setpoint Mode ... -
Page 21: Total
To set the setpoint: USER POWER 1. Press and hold is displayed. USER 2. Press to scroll to the desired setpoint ( TARE 3. Press . The current mode is displayed. USER 4. Press to scroll to the setpoint mode desired. TARE ... -
Page 22: Filter Setup
If the reading is not stable, it can often be improved by increasing the filter setting. Settling time will be longer as the filter setting is increased. However, the MSI-4260 employs algorithms that speed up large weight changes while still controlling vibration even with high filter settings. -
Page 23: Unit
ZERO USER 6. Press to save and exit to weighing mode or press to continue to another setup menu item. Unit POWER USER . will display. 1. Press and hold POWER USER If the unit is on, press simultaneously. -
Page 24: Calibration
5.0 Calibration The MSI-4260 is calibrated using standard weights. It is required that the weight used is at least 10 percent of full capacity in order to achieve rated accuracy. For example, use at least a 500 kg test weight to calibrate a 5000 kg capacity scale. -
Page 25: Initial Calibration
Use this procedure only if the capacity and count-by (d) needs to be modified. The initial steps of the initial calibration will totally erase user setup as well as any previous calibration. Use the following steps to calibrate the MSI-4260 using the initial calibration procedure. 1. Turn the MSI-4260 off. -
Page 26: Guidelines For Capacity And Resolution
Due to excellent linearity of the MSI S-Beam load cell, it is acceptable to set lower capacities to better match the crane the MSI-4260 is used on. For example, if the hoist is rated for 9000 lb, use an MSI 10000 lb and MSI 4260 and reset the capacity to 9000 lb so that the scale will indicate overload at 9000 lb instead of 10000 lb. -
Page 27: C-Cal Calibration
When a calibration is performed with test weights, a new C-Cal is generated. C-Cal can be used when the electronics are replaced to get an approximate calibration that may be suitable for non L-F-T applications. The C-Cal number must be known prior to starting this procedure. For a MSI-4260 with its original load Important cell, MSI prints this number on the calibration record, the serial number tag and on the calibration log found inside the battery compartment. -
Page 28: Calibration Setup Menu
is displayed. 5. Press TARE to set the standard. or the next item in the CAL setup menu is displayed. 6. Press ZERO twice to exit setup and store all changes. is displayed. 7. Press MSI-4260 Port-A-Weigh Crane Scale... -
Page 29: Auto Zero Maintenance
Auto Zero Maintenance The MSI-4260 employs an autozeroing maintenance mechanism to adjust the zero reading to the center-of-zero (COZ). COZ is defined as the weight reading is within 1/4 ‘d’ of zero. AZM continuously adjusts zero to maintain COZ. It is recommended that AZM is on to maintain the highest accuracy. However, there are circumstances when it should be turned off. -
Page 30: Rf Remote Control Option
RFRC. The RFRC provides the ability to turn the MSI-4260 on remotely. The RFRC is available Scale Remote Controller in three versions differing only in transmit frequency. -
Page 31: Setting The Receiver Address
This is not to say that there cannot be multiple remote controls for the MSI-4260, but rather that two can’t be used simultaneously. -
Page 32: Rf Remote Control Fcc Statement
Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. MSI-4260 Port-A-Weigh Crane Scale... -
Page 33: Communications Setup
For all devices that must interconnect, the RF Channel and Network ID must match. The ScaleCore ID must be unique. The MSI-4260 or other RF equipment that is a weight data source should be set to a ScaleCore ID of 0. -
Page 34: Ethernet Setup
1. Press the keys at the same time. displays. USER 2. Press to scroll to TARE 3. Press displays. TARE 4. Press . The current setting flashes. USER 5. Press to scroll through settings. MSI-4260 Port-A-Weigh Crane Scale... -
Page 35: Printer / Serial Output Setup
The RS-232 communications port is capable of outputting load data. All of the RF linked weight device weight modes are available in user formatted form. The control mode program is what controls the MSI-4260 to print and is described in Section 4.1.1. -
Page 36: Printer Output Setup
10. When set, press again. displays. TARE 11. Press to enter. Current setting flashes. USER 12. Press to scroll through the settings. See Figure 7.3.1. TARE 13. When desired setting is displayed, press displays. MSI-4260 Port-A-Weigh Crane Scale... -
Page 37: Troubleshooting/Maintenance
8.0 Troubleshooting/Maintenance Troubleshooting Problem Possible Cause Solution The display is blank when the Discharged battery Recharge the battery. Allow at least four hours POWER button is depressed charge Defective battery Replace the battery Corroded battery or battery Clean the battery contacts contacts Defective switch or circuit board Requires authorized service The display does not function properly,... -
Page 38: Service Counters
‘‘d’. It is also possible to increase the motion window. Contact MSI if you have a problem getting the MSI-4260 to zero, tare, or total due to stability issues. Setpoint lights blink... -
Page 39: Msi-4260 Port-A-Weigh Dimensions
Reference MSI’s Crane Scale Safety and Periodic Maintenance manual (Pub. 243-08-94D) for proper loading techniques to improve the safety and longevity of your MSI-4260 crane scale. This publication is available at www.ricelake.com and is included in the CD shipped with your crane scale. -
Page 40: Specifications
Prolongs battery life by turning POWER off after 15, 30, 45 or 60 minutes (operator determined) of no scale activity. Auto Sleep Mode Prolongs battery life by dimming LED display after 5, 15, or 30 minutes of no activity. MSI-4260 Port-A-Weigh Crane Scale... - Page 42 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in...
