Thank you for purchasing the industrial HMI touch panel series of M2I corporation.
Please read this manual carefully to know installing, wiring, operating this equipment for safe use of this
product.
M
I Corporation
2
11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

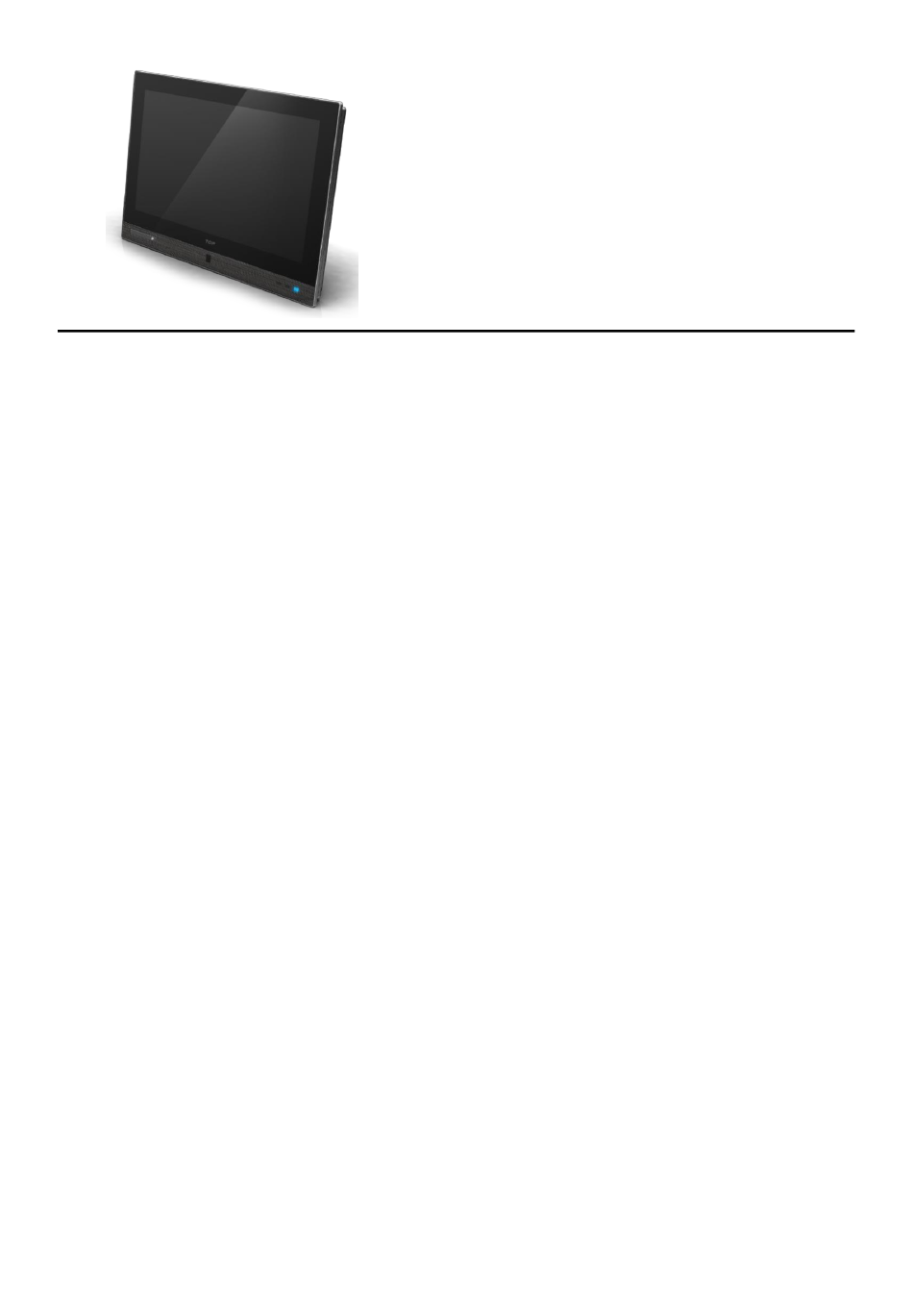

Industrial HMI Touch Panel
TOPRT-Ex Series User Manual
M2I Corporation
TOPRT-Ex Series
User Manual
1 / 21
Advertisement
Table of Contents
Related Manuals for M2I TOPRT-Ex Series
Summary of Contents for M2I TOPRT-Ex Series
- Page 1 Industrial HMI Touch Panel TOPRT-Ex Series User Manual Thank you for purchasing the industrial HMI touch panel series of M2I corporation. Please read this manual carefully to know installing, wiring, operating this equipment for safe use of this product. I Corporation 1 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
-
Page 2: Table Of Contents
8.3 Problems with the Device............................19 8.4 Setting System Recovery Mode ..........................20 Chapter 9 Products and Warning Label Location ........................21 I Corporation 2 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 3: Chapter 1 Safety Precautions
External connections to the equipment must be secured using the mechanical securing devices provided I Corporation 3 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... - Page 4 Do not install to the place where strong shock or vibration continuously have impacted on product. Do not store or operate in direct sunlight. Direct sunlight can change the properties of the LCD. For indoor use only. I Corporation 4 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
-
Page 5: Chapter 2 Overview
Before using the product, please check that all of the following components are included. Item Figure Quantity Product and User Manual Each 1 Power Connector and COM3 Each 1 communication connector Mounting Clamp I Corporation 5 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 6: Explanation Of Model Name
Real Time Clock Built in(by Battery) 3.3 Display Specifications Color 16M Colors Brightness Level 10 Level(by software) Backlight Type Backlight Life 50,000 hours I Corporation 6 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 7: Touch Specifications
0 ~ 90(No dew) Atmosphere No corrosive gas Vibration Endurance Amplitude: 10≤F＜25㎐(2G) X,Y,Z each direction(for 30 minutes) Noise Immunity 1000Vp-p(Pulse width 1㎲) I Corporation 7 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 8: Structure Specifications
Cooling System Natural air circulation Case Material Aluminum + Plastic Chapter 4 Parts Identification and Functions 4.1 TOPRT-Ex Series 4.1.1 External Dimension I Corporation 8 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... - Page 9 ④ SD Card Socket SD Socket Project or Log data file upload/download ⑤ Mode Switch DIP Switch 2pole System mode setting switch I Corporation 9 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
- Page 10 RS-232C/422/485 serial comm. (select by software) ④ ETHERNET Connector RJ45 x 2ch 10BASE-T/100BASE-TX/1000BASE-T, Auto-MDIX ⑤ Serial COM3 TB 3.5mm 3P RS-485 serial communication connector I Corporation 10 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
-
Page 11: Chapter 5 Interface
RS-422/485 Send Data(-) *1) 2) If VCC is required for an external device, connect pin 7(+ 5.0V) and pin 5(* 0.2A output). I Corporation 11 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 12: Ethernet Communication Specifications
100Base-T 1000Base-T Orange/White Orange Green/White Blue Blue/White Green Brown/White Brown *Use UTP cable Cat 5e or Cat 6 for 1Gbps speed use. I Corporation 12 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 13: Usb Specifications
Type Item Specification HDMI Version HDMI V2.0 Mode Selection Mirror / Dual Resolution Max 1366 x 768 Connector Type HDMI Type A I Corporation 13 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 14: Chapter 6 Installation
(4) In order to minimize external mechanical hazards, please control the mechanical hazards of the surrounding environment. -10 ~ 50°C, 10~80% -10 ~ 50°C, 10~80% I Corporation 14 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 15: Install Procedure
Installation methods should be following by using the supplied installation clamps. Insert the clamp into the slot of the product. Screw the unit into the panel cut with a screwdriver. I Corporation 15 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 16: Front Usb
※ Do not use USB in explosive circumstances. There can be an explosion during operation. 6.3.2 Data Upload and Download You can download or Upload Project file data through USB interface. I Corporation 16 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 17: Chapter 7 Wiring
Pin Terminal(ferrule) below. (Measure: mm) 1.8~2.0 22~18 12~14 3.3~3.8 2~2.5 (3) Wiring of power is as follows. I Corporation 17 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... - Page 18 (2) Fix the connector in a cable clamp as below image. (3) Insert the connector into USB terminal block as below image. I Corporation 18 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
-
Page 19: Chapter 8 Maintenance
Check the touch pad there is no damage, scratch or pollution by eye. 8.3 Problems with the Device a. If there is a problem during operation, stop using it and contact the A/S department of M2I Corporation, which is indicated on the product label. -
Page 20: Setting System Recovery Mode
If the system is recovering, turn off the power and set it to "Factory Reset”. c. When the recovery is completed, the buzzer sounds, then turn off the power and reset to "Normal" state. I Corporation 20 / 21 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 21: Chapter 9 Products And Warning Label Location
Doc.No.: TOPRT-Ex-D0001 Rev.0 - Please read related contents in this manual when you use M2I product, and operate the product staying safe with appropriate handling. - This manual should be stored in secured and appointed place so that it can be read in any needs.
