MDP-DC Series User Manual
M
I Corporation
2

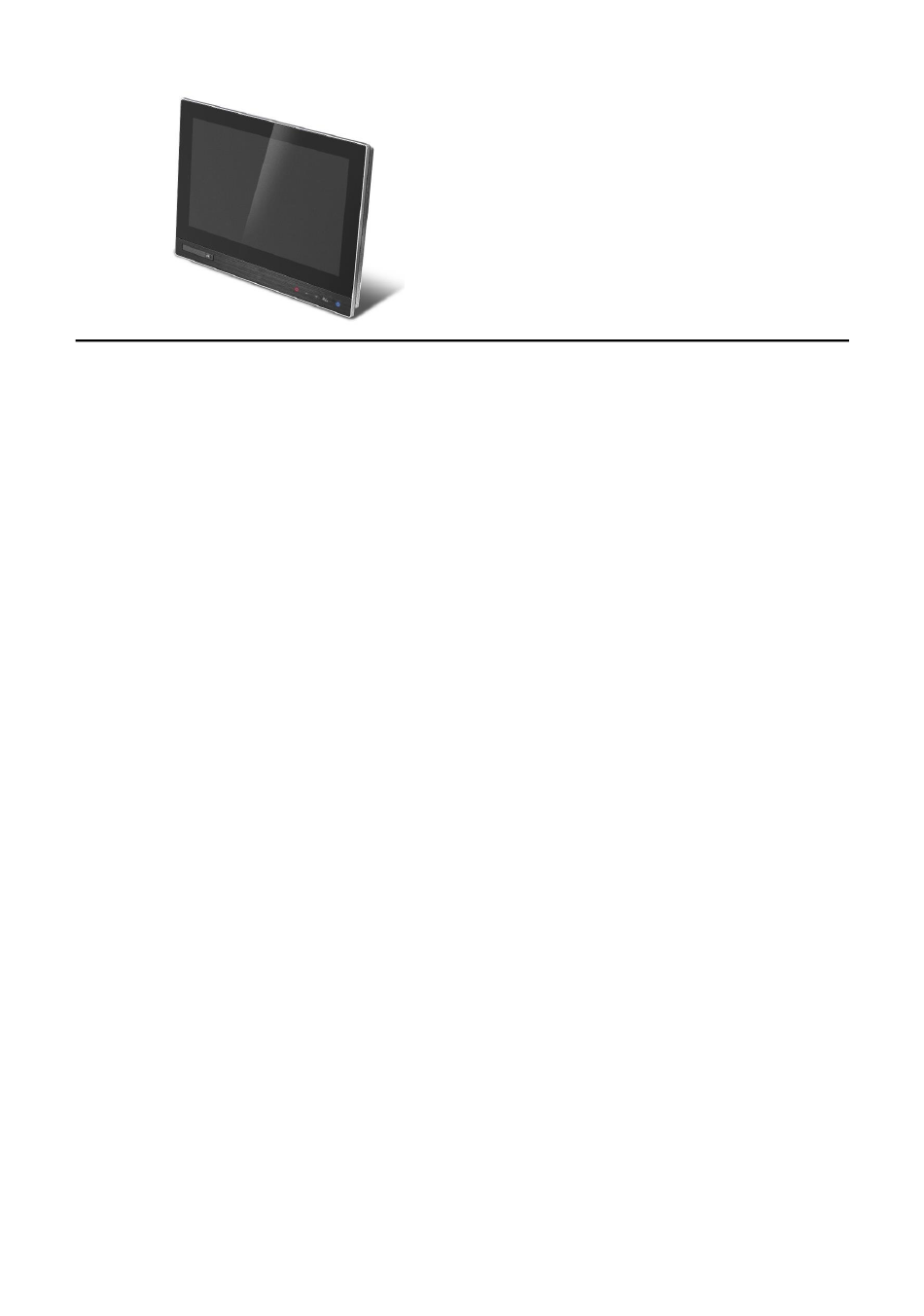

Industrial Monitor
MDP-DC Series
User Manual
Thank you for purchasing the industrial HMI touch panel series of M2I corporation.
Please read this manual carefully to know installing, wiring, operating this equipment for safe use of this
product.
M2I Corporation
1 / 20
11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea
Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr
Advertisement
Table of Contents
Related Manuals for M2I MDP-DC Series
Summary of Contents for M2I MDP-DC Series
- Page 1 I Corporation Industrial Monitor MDP-DC Series User Manual Thank you for purchasing the industrial HMI touch panel series of M2I corporation. Please read this manual carefully to know installing, wiring, operating this equipment for safe use of this product. M2I Corporation...
-
Page 2: Table Of Contents
MDP-DC Series User Manual Index Chapter 1 Safety Precautions ................................. 3 Chapter 2 Overview ....................................5 2.1 Introduction of Products ............................... 5 2.2 Package Contents ................................5 2.3 Explanation of Model Name ............................5 Chapter 3 General Specifications ................................. 5 3.1 Power Specifications ............................... -
Page 3: Chapter 1 Safety Precautions
MDP-DC Series User Manual Chapter 1 Safety Precautions ■ Before using the product To use the product safely and effectively, please read the contents of this manual thoroughly before use. Please keep to the safety precaution, for it is to prevent accidents and potential danger from occurring. - Page 4 MDP-DC Series User Manual ■ Installation Precautions Do not install the location which exceeds allowed temperature. Product can be damaged or shorten the life. Especially Install environment as below should be avoided. Do not Install product to the place which the ambient temperature is out of limits, from -10℃ to 50℃ or on the surface of control board which high pressure equipment is installed.
-
Page 5: Chapter 2 Overview
MDP-DC Series User Manual Chapter 2 Overview 2.1 Introduction of Products This Industrial Monitor is required in an industrial field. It displays demanded screen features from multiple devices through HDMI connection, and a touch sensor can be connected to outer device by USB. -
Page 6: Display Specifications
MDP-DC Series User Manual Voltage endurance DC 24V, within 10㎳ Insulation Resistance 500V DC, 10㏁ 3.2 Display Specifications Display Color 16M Color Backlight Type Backlight Life Minimum 50,000 Hours Resolution Max. 1920 x 1080 Scaling Up / Down Scaling Supported 3.3 Touch Specifications... -
Page 7: Chapter 4 Part Names And General Specifications
MDP-DC Series User Manual Chapter 4 Part Names and General Specifications 4.1 External Dimension (mm) Model MDP-DC1200WD 321.4 252.4 63.5 MDP-DC1500WD 406.4 286.4 63.5 MDP-DC1900WD 477.4 328.4 63.5 M2I Corporation 7 / 20 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea... -
Page 8: Part Names And Specifications
MDP-DC Series User Manual 4.2 Part Names and Specifications 4.2.1 Front Name Description ① OSD Buttons OSD Setting Touch Sensed Buttons ② USB HOST USB Connector to use Mouse of Keyboard, Output Power 5V/0.5A ③ Front USB Cover Front USB Cover ④... -
Page 9: Chapter 5 External Device Interface
MDP-DC Series User Manual Chapter 5 External Device Interface In order for the main unit to communicate with an external device, it is necessary to connect the two devices by referring to the following. 5.1 USB Specifications USB Type A / USB Type B... -
Page 10: Installation Procedure
MDP-DC Series User Manual 6.2 Installation Procedure In order to install this product, please follow the following procedure. 6.2.1 Panel Cut Make a panel cut which product is mounted and insert the product to the panel form the front side. -
Page 11: Front Usb
MDP-DC Series User Manual If the screw is over tightened, it may cause the front deformation, thus resulting the touch sensor can’t work properly Tighten the screws to a torque of 0.4N.m. * Caution: If the torque of screwing is not 0.4N.m, IP specification will not be secured. -
Page 12: Connecting With Outer Devices
MDP-DC Series User Manual 6.4 Connecting with Outer Devices This product can connect to maximum 2 external control device and USB device each. Screens of connected devices are displayed alternately when screen switch button is pushed. (HDMI 1 + USB 1 Cable Connection Example) Connect HDMI cable between outer device and HDMI1 or HDMI2 port. -
Page 13: Chapter 7 Osd Setup
MDP-DC Series User Manual Chapter 7 OSD Setup 7.1 Front OSD Setup Buttons Screen settings of this product can be done by front OSD Menu Buttons. Button Shape Name Description HDMI 1 <-> HDMI 2 Screen Switch Button HDMI 1: LED BLUE / HDMI 2: LED RED... - Page 14 MDP-DC Series User Manual 7.2.2 Color - Color Temp: Setting a temperature level of screen. (6500K, 7500K, 9300K, User Define) - Red [0 ~ 100]: Setting a level of red color. - Green [0 ~ 100]: Setting a level of green color.
-
Page 15: Ex-Kvm Switch Terminal
MDP-DC Series User Manual 7.2.4 Setup - Reset [Off, On]: Reset settings of OSD. - Display Size [16:9, 4:3]: Force adjustment of screen ratio. 7.3 EX-KVM Switch Terminal Instead of front KVM switch, this external switch can be connected and control the screen. -
Page 16: Chapter 8 Wiring
MDP-DC Series User Manual Chapter 8 Wiring 8.1 Power Cable Wiring (1) The Power cable should have the following specification. Power Cable Specification 0.75~2.5mm (18~12AWG) F.G Cable Specification (14AWG) or more Conductor Type Simple or Standard Wire (Use Copper Wire) ≥... -
Page 17: Ground Wiring
MDP-DC Series User Manual 8.2 Ground Wiring (1) The product has enough anti-noise measure, so except that there are many noises. Specially, the ground is not needed. When doing ground, please refer to the followings. (2) The ground should be the exclusive ground. The ground should be type Class 3 ground. (Ground resistor is less than 100Ω.) -
Page 18: Chapter 9 Maintenance
MDP-DC Series User Manual (3) Put fixed cable connector into USB port. (4) Fix the cable clamp by a screw and check the fixing is normally done. Chapter 9 Maintenance 9.1 Cleaning the Display When the surface or frame of the display become dirty, spray the cleaning solution onto a soft cloth and wipe the device. -
Page 19: Problems With The Device
Check the touch pad there is no damage, scratch or pollution by eye. 9.3 Problems with the Device a. If there is a problem during operation, stop using it and contact the A/S department of M2I Corporation, which is indicated on the product label. -
Page 20: Chapter 10 Products And Warning Label
I Corporation 2024.08 www.m2i.co.kr - Please read related contents in this manual when you use M2I product, and operate the product staying safe with appropriate handling. - This manual should be stored in secured and appointed place so that it can be read in any needs.
