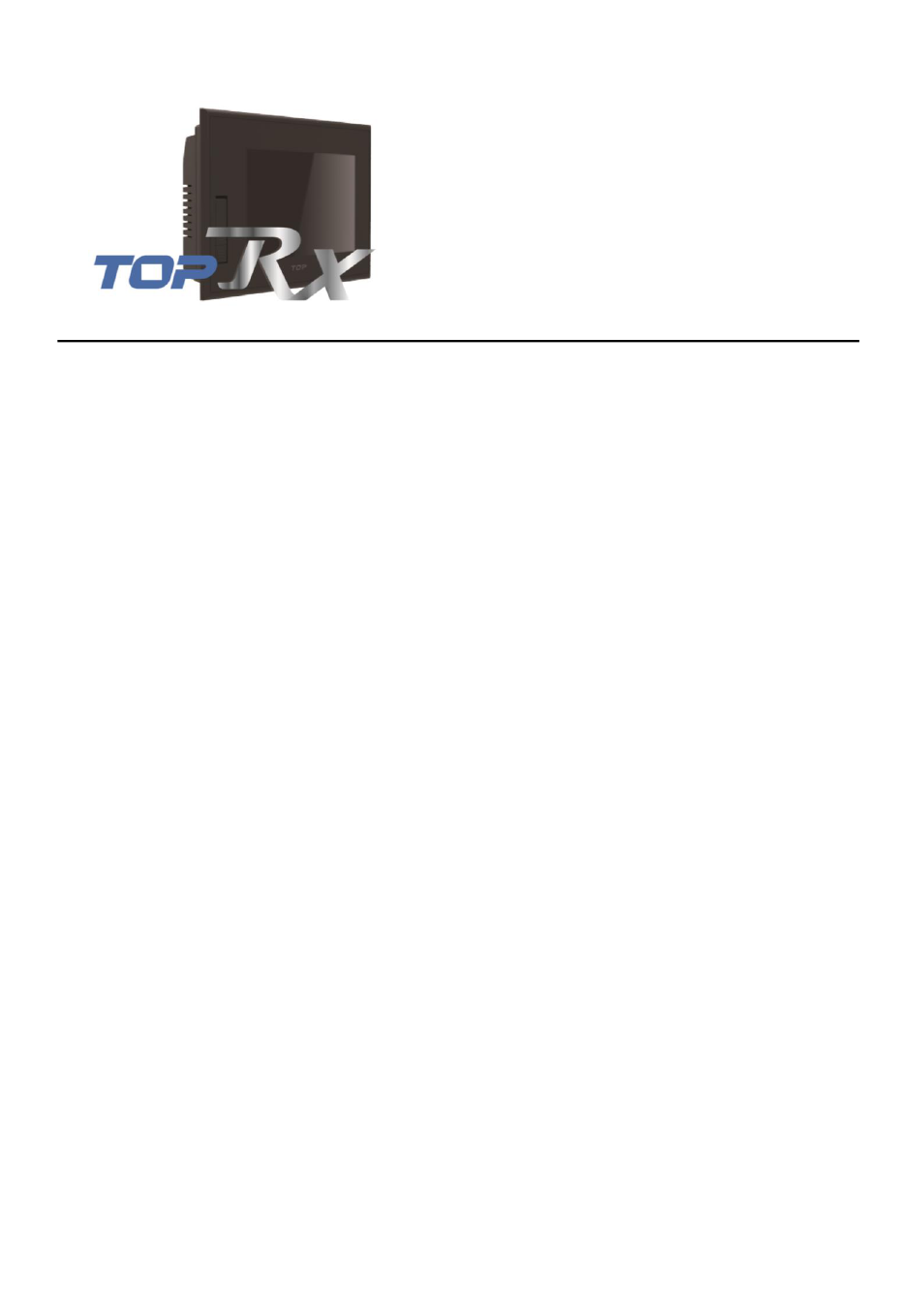

TOPRX Series Hardware Manual
M
I Corporation
2
Industrial HMI Touch Panel
TOPRX Series
Hardware Manual
Thank you for purchasing the industrial HMI touch panel series of M2I corporation.
Please read this manual carefully to know installing, wiring, operating this equipment for safe use of this
product.
M
I Corporation
1 / 19
2
11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea,
Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr
Advertisement
Related Manuals for M2I TOPRX Series
Summary of Contents for M2I TOPRX Series
- Page 1 Industrial HMI Touch Panel TOPRX Series Hardware Manual Thank you for purchasing the industrial HMI touch panel series of M2I corporation. Please read this manual carefully to know installing, wiring, operating this equipment for safe use of this product. I Corporation...
-
Page 2: Table Of Contents
TOPRX Series Hardware Manual Contents Chapter 1 Safety Precautions ................................. 3 Chapter 2 Overview ....................................5 2.1 Introduction of Products .............................. 5 2.2 Package Contents ................................5 2.3 Explanation of Model name ............................5 Chapter 3 General Specifications ................................. 6 3.1 Electrical Specifications .............................. -
Page 3: Chapter 1 Safety Precautions
TOPRX Series Hardware Manual Chapter 1 Safety Precautions ■ Before using the product To use the product safely and effectively, please read the contents of this manual thoroughly before use. Please keep to the safety precaution, for it is to prevent accidents and potential danger from occurring. - Page 4 TOPRX Series Hardware Manual ■ Wiring Precautions Be sure the wiring is done correctly by checking the product’s rated voltage and the terminal layout. Incorrect wiring could result in fire, damage or malfunctions. Tighten the terminal screw with the specified torque. If the screws of terminal are loose, it could result in short circuit, fire, malfunctions.
-
Page 5: Chapter 2 Overview
RS-232C and RS-422/485, Ethernet which is used for the basic purpose of communication with another device(PLC). 2.2 Package Contents Package contents of TOPRX Series are below. please make sure that all of components are in the package Series before using TOPRX. Item... -
Page 6: Chapter 3 General Specifications
TOPRX Series Hardware Manual Chapter 3 General Specifications 3.1 Electrical Specifications TOPRX□□□□□A AC 100~240V, 50/60Hz Input Voltage TOPRX□□□□□D DC 20~28V TOPRX05 Series 12W or less TOPRX08 Series Consumption Power TOPRX10 Series 15W or less TOPRX12 Series TOPRX15 Series 18W or less TOPRX□□□□□A... -
Page 7: Chapter 4 Parts Identification And Functions
TOPRX Series Hardware Manual Chapter 4 Parts Identification and Functions 4.1 TOPRX05/08 Series 4.1.1 External Dimension (mm) Model TOPRX05 TOPRX08 58.9 52.9 I Corporation 7 / 19 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... - Page 8 TOPRX Series Hardware Manual 4.1.2 Front Part Names and Specifications Part Description ① TFT 16M Color LCD ② Touch Panel Analog Touch ③ Front Sheet Front Cover Sheet for Damp Proof and Dust Proof ④ USB Port USB Download/Upload Port 4.1.3 Rear Part Names and Specifications...
-
Page 9: Toprx10/12/15 Series
TOPRX Series Hardware Manual 4.2 TOPRX10/12/15 Series 4.2.1 External Dimension (mm) Model TOPRX10 64.7 58.7 TOPRX12 64.7 58.7 TOPRX15 67.2 61.2 4.2.2 Front Part Names and Specifications I Corporation 9 / 19 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea,... - Page 10 TOPRX Series Hardware Manual Part Description ① TFT 16M Color LCD ② Touch Panel Analog Touch ③ Front Sheet Front Cover Sheet for Damp Proof and Dust Proof ④ USB Port USB Download/Upload Port 4.2.3 Rear Part Names and Specifications...
-
Page 11: Chapter 5 Interface
TOPRX Series Hardware Manual Chapter 5 Interface In order for the main unit to communicate with an external device, it is necessary to connect the two devices by referring to the following. 5.1 Serial Communication Specifications 5.1.1 RS-232C Items Contents... -
Page 12: Ethernet Interface
TOPRX Series Hardware Manual 5.1.4 COM2 Connector pin number and Signal name Type Pin No. Signal Direction Meaning RDA(RD+) Input RS-422/485 Receive Data(+) RD(RxD) Input RS-232C Receive Data SD(TxD) Output RS-232C Send Data 9Pin Female RDB(RD-) Input RS-422/485 Receive Data(-) -
Page 13: Usb Interface
USB 2.0 Communication Method Interrupt/Bulk/Isochronous Transfer Speed 480Mb/s Supporting OS Windows 98SE/2000/XP/VISTA/710(32/64bit) M2I manufacturer's cable is recommended (3M), and 1.5M Cable Length or less when purchased separately Connect Type Mini USB B, Female Connect Method Front, USB OTG connector Chapter 6 Installation 6.1 Installation Requirements... -
Page 14: Installation Procedure
6.2 Installation Procedure 6.2.1 Panel Cut-out Make a panel cut which product is mounted and insert the TOPRX to the panel form the front side. Making the Panel Cut (Mounting Size) per each TOPRX Series as below Table, Before Installation. (mm) 모델명... -
Page 15: Chapter 7 Wiring
TOPRX Series Hardware Manual (2) Screw the unit into the panel cut with a screwdriver. 0.4N.m If the screw is over tightened, it may cause the front deformation, thus resulting the touch sensor can’t work properly Tighten the screws to a torque of 0.4N.m. -
Page 16: Ground Wiring
TOPRX Series Hardware Manual (3) Wiring of power is as follows. TOPRX□□□□□A TOPRX□□□□□D (AC Power) (DC Power) 7.2 Ground wiring (1) The product has enough anti-noise measure, so except that there are many noises. Specially, the ground is not needed. When doing ground, please refer to the followings. -
Page 17: Chapter 8 Maintenance
(2) Only the authorized worker from M2I Corporation can check and repair problems related to malfunction of the machine. (3) If the problem cannot be solved at the installation site, the equipment can be collected and moved to M2I Corporation. -
Page 18: Chapter 9 Products And Warning Label Location
TOPRX Series Hardware Manual Chapter 9 Products and Warning Label Location 9.1 TOPRX05/08 Series Product Label 9.2 TOPRX10/12/15 Series Product Label I Corporation 18 / 19 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 19: Chapter 10 Products Label
Copyright: M2I Corporation 2024.06 www.m2i.co.kr - When using M2I equipment, thoroughly read this datasheet and associated manuals introduced in this datasheet, also pay careful attention to safety and handle the module properly. - Store this datasheet in a safe place so that you can take it out read it whenever necessary.
