M2I TOPRW0700WD-IO Hardware Manual

Industrial hmi touch panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

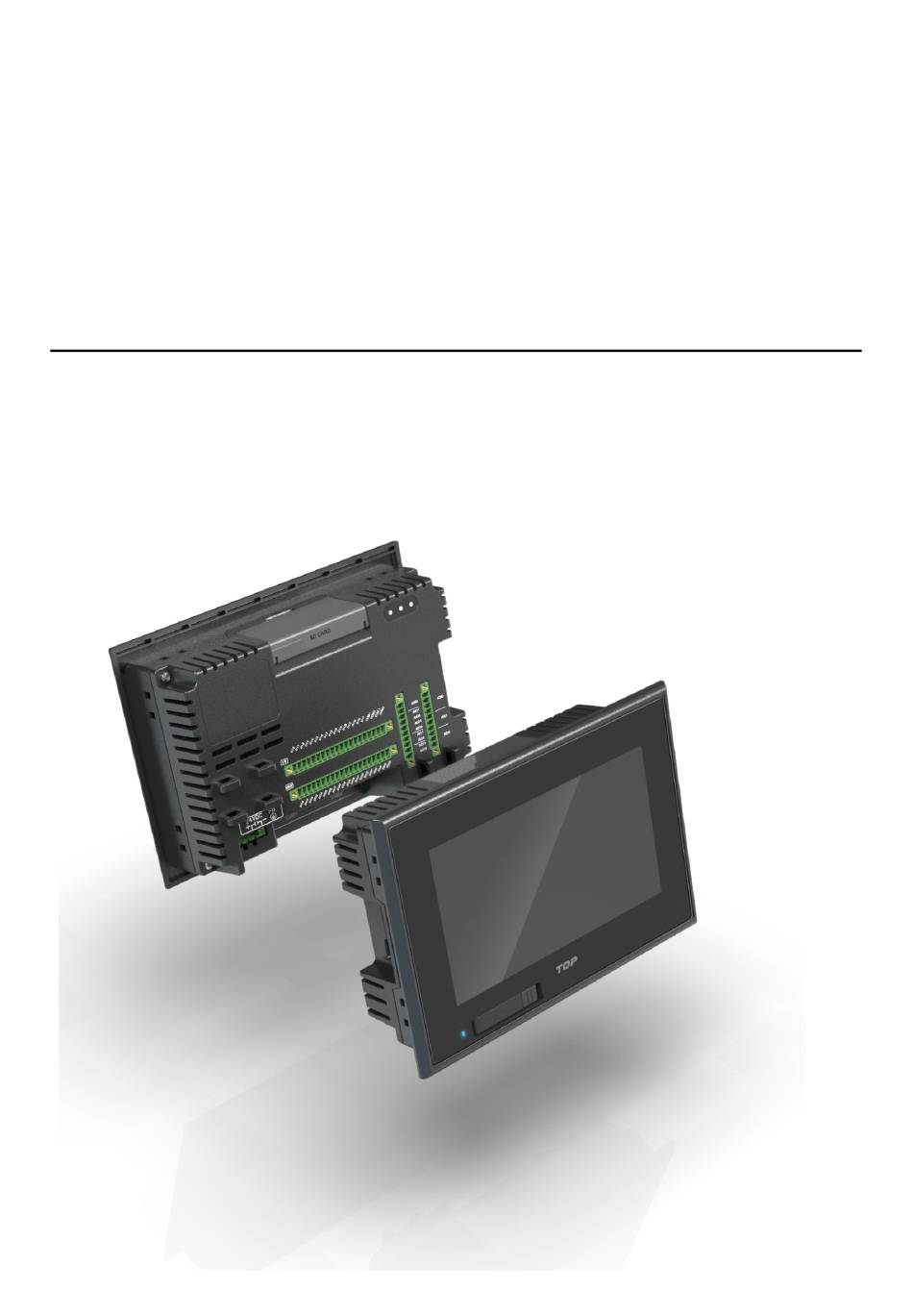

Industrial HMI Touch Panel Hardware Manual
M2I Corporation
Industrial HMI Touch Panel
TOPRW0700WD-IO
Hardware Manual
Thank you for purchasing the industrial HMI touch panel series of M2I corporation.
Please read this manual carefully to know installing, wiring operating this equipment for safe use of this
product.
M2I Corporation
1 / 22
11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TOPRW0700WD-IO and is the answer not in the manual?

Questions and answers

Related Manuals for M2I TOPRW0700WD-IO

Summary of Contents for M2I TOPRW0700WD-IO

  • Page 1 Industrial HMI Touch Panel TOPRW0700WD-IO Hardware Manual Thank you for purchasing the industrial HMI touch panel series of M2I corporation. Please read this manual carefully to know installing, wiring operating this equipment for safe use of this product. M2I Corporation 1 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 2: Table Of Contents

    9.2 Periodic Check Points ..............................21 9.3 Problems with the Device ............................21 9.4 Setting System Recovery Mode ..........................21 Chapter 10 Products Label ....................................22 M2I Corporation 2 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 3: Chapter 1 Safety Precautions

    Incorrect wiring could result in fire, damage or malfunctions. Tighten the terminal screw with the specified torque. If the screws of terminal are loose, it could result in M2I Corporation 3 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
  • Page 4 ■ All field-wiring connections to this unit shall be from Limited Voltage / Limited Current, below 24Vdc isolated secondary source with an output fuse, or Class 2. M2I Corporation 4 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 5: Chapter 2 Overview

    □□ □ □ -□□ Series Display Size Option Resolution Power Series 07: 7.0” 00: Standard W: WVGA (800*480) D: DC -IO: Standard M2I Corporation 5 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 6: Chapter 3 General Specifications

    Ground Connection Class 3(Under 100Ω) Protection Classification Conform to IP65 3.5 Structure Specifications Weight( Cooling System Natural Air Circulation Case Material PC(Flameless) M2I Corporation 6 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 7: Chapter 4 Part Names And General Specifications

    Chapter 4 Part Names and General Specifications 4.1 TOPRW0700WD-IO 4.2 Product Dimension Model Name F1(mm) F2(mm) S1 (mm) S2 (mm) R1(mm) R2(mm) TOPRW0700WD-IO 62.5 56.5 194.2 124.9 M2I Corporation 7 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 8: Part Names And General Specifications

    DIP Switch 2Digit Set Up System Switch Reset Switch Tact Switch System Reset Switch Diagnose Connector 2mm 4P Diagnose System (Manufacturer Only) M2I Corporation 8 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 9: Chapter 5 External Device Interface

    +5V, 0.2A Power Ground Not Available When need VCC for external equipment, use 7.VCC and 8.VCC GND that output is 0.2A *1, *2) M2I Corporation 9 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 10: Ethernet Communication Specifications

    * In case of do not using HUB, do not use HUB, when it is connected directly, Cross Cable should be used. Ex) Cross Cable Wiring: In the above wiring diagram, TD+ and RD+ are changed, and TD- and RD- are exchanged. M2I Corporation 10 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 11: Usb Specifications

    Connect through USB OTG Chapter 6 I/O Interface Specification 6.1 Digital Input - Digital Sink and Source, Input 16ch: DI0 ~ DIF M2I Corporation 11 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 12: Digital Output

    Typ. 24Vdc (11.0Vdc ~ 28.8Vdc) Pin No. Removable Terminal Block 20P 6.2 Digital Output - Digital Sink, Output 16ch: DON0 ~ DONF M2I Corporation 12 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 13: Analog Input / Output Specification

    - Analog Current, Input 2ch: AIC0, AIC1 - Analog Voltage, Input 2ch: AIV0, AIV1 - Analog Current, Output 2ch: AOC0, AOC1 - Analog Voltage, Output 2ch: AOV0, AOV1 M2I Corporation 13 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 14: Rtd Input

    Field power Max. 60mA@24Vdc Pin No. Removable Terminal Block 10P (3.5mm pitch) 6.4 RTD Input - Analog RTD, Input 2ch: RTD0*, RTD1* M2I Corporation 14 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
  • Page 15 *** A lead wire’s color is defined by IEC 60751-2008 Standard (*Request for Industrial Platinum Temperature Sensor), and all of wire colors are shown as below. Unavailable Available Unavailable M2I Corporation 15 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
  • Page 16 Industrial HMI Touch Panel Hardware Manual 6.4.3 Rated Input Range (℃) and Data (DEC) Range M2I Corporation 16 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 17: Chapter 7 Installation

    Make a panel cut which product is mounted and insert the product to the panel form the front side. (2) The Size of Panel Cut Making the Panel Cut (Mounting Size) per each TOPRW Series as below Table, Before Installation. M2I Corporation 17 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
  • Page 18 Install clamps with this product should be installed as follows to maintain the IP performance of the device. a. Insert the clamp into the slot of the product. b. Screw the unit into the panel cut with a screwdriver. M2I Corporation 18 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 19: Chapter 8 Wiring

    Simple or Standard Wire ≥ 0.4 N.m Bolt tightening force Conductor Length Temperature rating of the 65 ℃ or under field installed conductors M2I Corporation 19 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 20: Ground Wiring

    C) Common ground (4) Use the cable more than 4mm . Put the point of the ground near product and shorten ground line. M2I Corporation 20 / 22 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...

  • Page 21: Chapter 9 Maintenance

    Only the authorized worker from M2I Corporation can check and repair problems related to malfunction of the machine. c. If the problem cannot be solved at the installation site, the equipment can be collected and moved to M2I Corporation.

  • Page 22: Chapter 10 Products Label

    2022.06 www.m2i.co.kr - Please read related contents in this manual when you use M2I product, and operate the product staying safe with appropriate handling. - This manual should be stored in secured and appointed place so that it can be read in any needs.
