OPERATION & SERVICE MANUAL
Model: 02-0300C0100

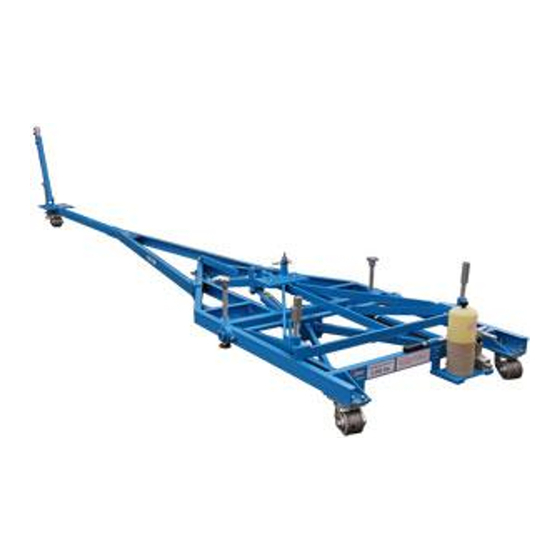

Hydraulic Jack
04/2023 Rev. 02
For Spare Parts, Operations & Service Manuals or Service Needs
Scan the QR code or visit Tronair.com/aftermarket
Tronair, Inc.
Phone: (419) 866-6301 | 800-426-6301
1 Air Cargo Pkwy East
Web: www.tronair.com
Swanton, OH 43558
Email: sales@tronair.com
Advertisement
Table of Contents
Related Manuals for Tronair 02-0300C0100
Summary of Contents for Tronair 02-0300C0100
- Page 1 OPERATION & SERVICE MANUAL Model: 02-0300C0100 Hydraulic Jack 04/2023 Rev. 02 For Spare Parts, Operations & Service Manuals or Service Needs Scan the QR code or visit Tronair.com/aftermarket Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 2 REVISION DATE TEXT AFFECTED 06/2016 Original release 04/2023 Modified Parts List...
- Page 3 Model: 02-0300-0100 Hydraulic Jack TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SAFETY INFORMATION ..............................1 USAGE AND SAFETY INFORMATION ......................1 TRAINING ..................................1 TRAINING REQUIREMENTS ..........................1 TRAINING PROGRAM ............................
-
Page 4: Model And Serial Number
Model: 02-0300-0100 Hydraulic Jack This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Jacking Instructions
Model: 02-0300-0100 Hydraulic Jack OPERATING INSTRUCTIONS GENERAL Observe the following safety considerations prior to using aircraft jacks. Failure to follow these recommended practices can result in injury, death or aircraft damage. CAUTION NEVER place hands or fingers between the aircraft and jack pad. 2NEVER align jack with aircraft or remove jack by striking jack legs with hammer or other metallic objects. -
Page 6: Leak Testing
Model: 02-0300-0100 Hydraulic Jack 6.0. MAINTENANCE AND SERVICING GENERAL Store the jack in a clean, dry area with the mechanical extension, ram and pump handle lowered. Keep jack covered with a plastic sheet. Periodically remove the mechanical extension and raise the ram to expose the outer threaded surface. Wipe all extension and ram surfaces with a clean cloth and apply a light coating of a moisture displacing lubricant, such as WD-40 or LPS. - Page 7 If warranty coverage is approved, either replacement parts will be sent or the product will have to be returned to Tronair for repairs. If the product is to be returned, a Return Material Authorization (RMA) number will be issued for reference purposes on any shipping documents.
- Page 8 Model: 02-0300-0100 Hydraulic Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. 04/2023 | Rev. 02 Page | 5...
- Page 9 Model: 02-0300-0100 Hydraulic Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. DETAIL C DETAIL D DETAIL E 04/2023 | Rev. 02 Page | 6...
- Page 10 Model: 02-0300-0100 Hydraulic Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description D-029 EXTENSION, 300 JACK G-1100-105006 BOLT, 1/4-20 X 3/4" LG HEX HD GR 5 G-1100-107010 BOLT, HEX HD 3/8-16 X 1 LONG G-1100-107014 BOLT, 3/8-16 X 1-1/2"...
- Page 11 Model: 02-0300-0100 Hydraulic Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description N-2788-02-S-B ELBOW, 1/4 HOSE, -06 SAE TF-1043-03*64.0 ASSEMBLY, HOSE, 16" LONG TF-1047-01*06.0 HOSE, 1/4 GRAY U-1018 CASTER, SWIVEL V-1102...
- Page 13 APPENDIX I HC-1961 Hand Pump Parts List...
- Page 15 Model: HC-1961 3250 psi Hand Pump Parts List With Illustrations 05/2005 – Rev. OR Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
-
Page 17: Installation Instructions
3250 psi Hand Pump This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., its suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. - Page 18 HC-1961 3250 psi Hand Pump Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description 518-000 Screw, Socket Head Cap Not Sold Separately Pump Body H-2606 Assembly, Relief Screw 506-000 Flange Half Not Shown H-1009-01...
- Page 19 APPENDIX II Declaration of Conformity...
-
Page 20: Declaration Of Conformity
DECLARATION of CONFORMITY The design, development and manufacture is in accordance with European Community guidelines Tripod Jack 02-0300C0100 Relevant provisions complied with by the machinery: 2006/42/EC Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc.
