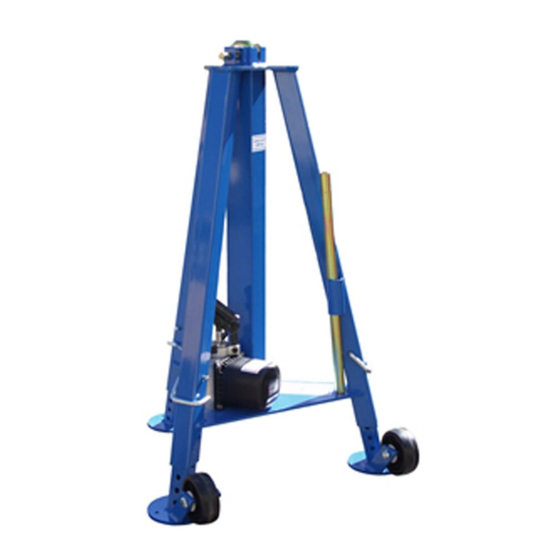

Two ton hydraulic jack
Hide thumbs

Advertisement

Table of Contents

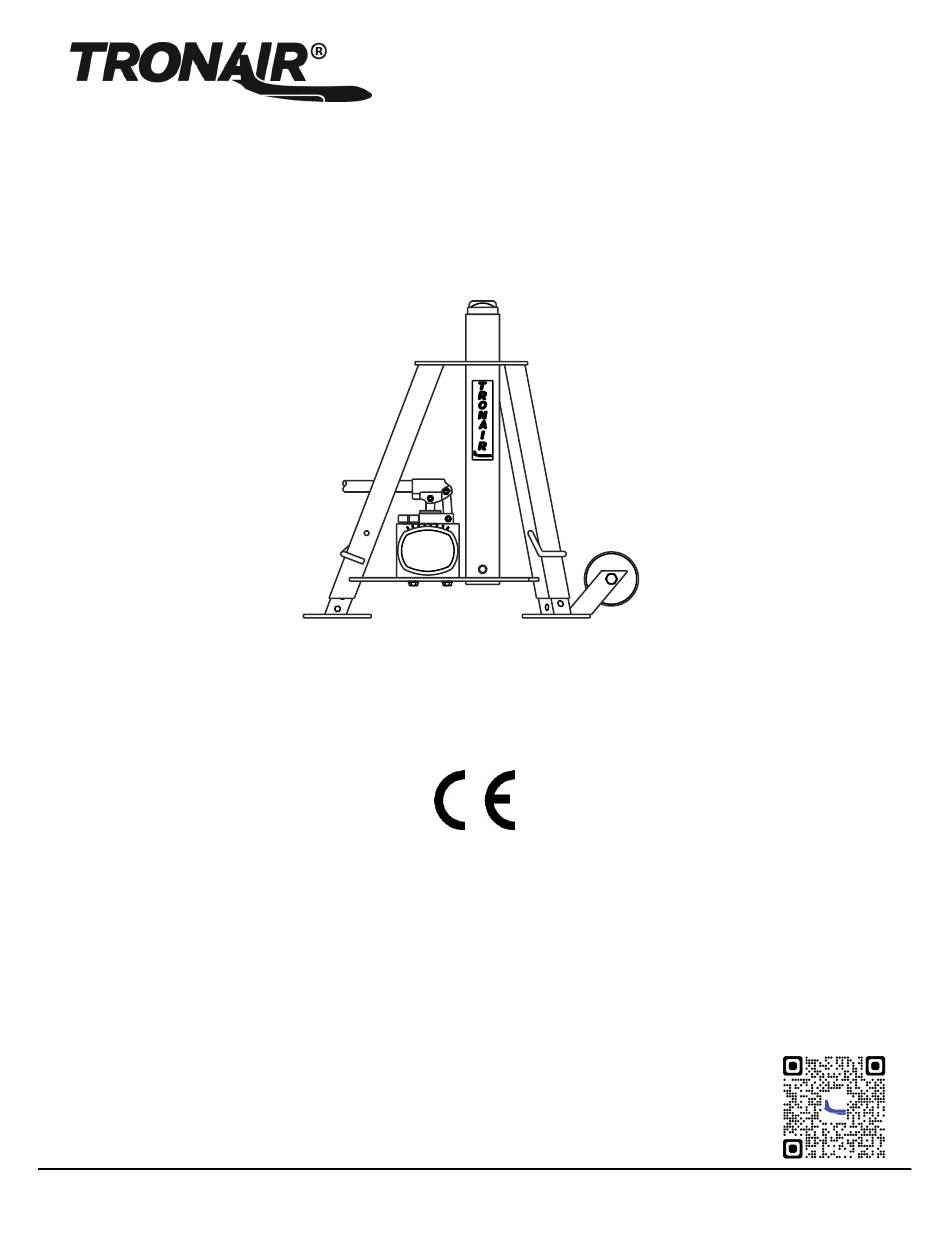

OPERATION & SERVICE MANUAL
Model: 02-0222C0111
Two Ton Hydraulic Jack
08/2023 – Rev. 02
For Spare Parts, Operations & Service Manuals or Service Needs
Scan the QR code or visit Tronair.com/aftermarket
Tronair, Inc.
Phone: (419) 866-6301 | 800-426-6301
1 Air Cargo Pkwy East
Web: www.tronair.com
Swanton, OH 43558
Email: sales@tronair.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 02-0222C0111 and is the answer not in the manual?

Questions and answers

Related Manuals for Tronair 02-0222C0111

Summary of Contents for Tronair 02-0222C0111

  • Page 1 Model: 02-0222C0111 Two Ton Hydraulic Jack 08/2023 – Rev. 02 For Spare Parts, Operations & Service Manuals or Service Needs Scan the QR code or visit Tronair.com/aftermarket Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
  • Page 2 REVISION DATE TEXT AFFECTED 01/2017 Original release 08/2023 Modified Parts List...
  • Page 3 Model 02-0222C0111 Two Ton Hydraulic Jack TABLE OF CONTENTS PAGE PRODUCT INFORMATION .............................. 1 DESCRIPTION..............................1 MODEL & SERIAL NUMBER ..........................1 MANUFACTURER .............................. 1 SPECIFICATIONS .............................. 1 SAFETY INFORMATION ..............................1 USAGE AND SAFETY INFORMATION ......................1 PREPARATION FOR USE ............................... 1 TRAINING ..................................

  • Page 4: Specifications

    Two Ton Hydraulic Jack This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur.

  • Page 5: Maintenance

    Model 02-0222C0111 Two Ton Hydraulic Jack OPERATING INSTRUCTIONS The user should be familiar with the following statements prior to using the jack(s). CAUTION! • NEVER extend legs unequally; jack ram must remain vertical. • NEVER put hands between aircraft and jack pad, as after aircraft has been lowered, struts may have hung up.
  • Page 6 If warranty coverage is approved, either replacement parts will be sent or the product will have to be returned to Tronair for repairs. If the product is to be returned, a Return Material Authorization (RMA) number will be issued for reference purposes on any shipping documents.

  • Page 7: Parts List

    Model 02-0222C0111 Two Ton Hydraulic Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description HJ-213 Pad, Jack HJ-205 Tube, Inner Center Z-3122-02-01 Weldment, Jack HC-1728 Pump, Hand G-1311-01...
  • Page 8 Model 02-0222C0111 Two Ton Hydraulic Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description G-1300-44220 Pin, Roll HJ-213 Pad, Jack HJ-205 Tube, Inner Center Z-3122-02-01 Weldment, Jack HC-1683-01...
  • Page 9 APPENDIX I Safety Data Sheet MIL-PRF-5606 Hydraulic Fluid 08/2023 | Rev. 02 Page | 6...
  • Page 10 08/2023 | Rev. 02 Page | 7...
  • Page 11 08/2023 | Rev. 02 Page | 8...
  • Page 12 08/2023 | Rev. 02 Page | 9...
  • Page 13 08/2023 | Rev. 02 Page | 10...
  • Page 14 08/2023 | Rev. 02 Page | 11...
  • Page 15 08/2023 | Rev. 02 Page | 12...
  • Page 16 08/2023 | Rev. 02 Page | 13...
  • Page 17 08/2023 | Rev. 02 Page | 14...
  • Page 18 08/2023 | Rev. 02 Page | 15...
  • Page 19 08/2023 | Rev. 02 Page | 16...
  • Page 20 08/2023 | Rev. 02 Page | 17...
  • Page 21 08/2023 | Rev. 02 Page | 18...
  • Page 22 08/2023 | Rev. 02 Page | 19...
  • Page 23 APPENDIX II Declaration of Conformity 08/2023 | Rev. 02 Page | 20...
  • Page 24 08/2023 | Rev. 02 Page | 21...

  • Page 25: Declaration Of Conformity

    Relevant standards complied with by the machinery: EN ISO 12100-1 Identification of person empowered to sign on behalf of the Manufacturer: Quality Assurance Representative Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558...
  • Page 27 APPENDIX III Maintenance Schedule...
