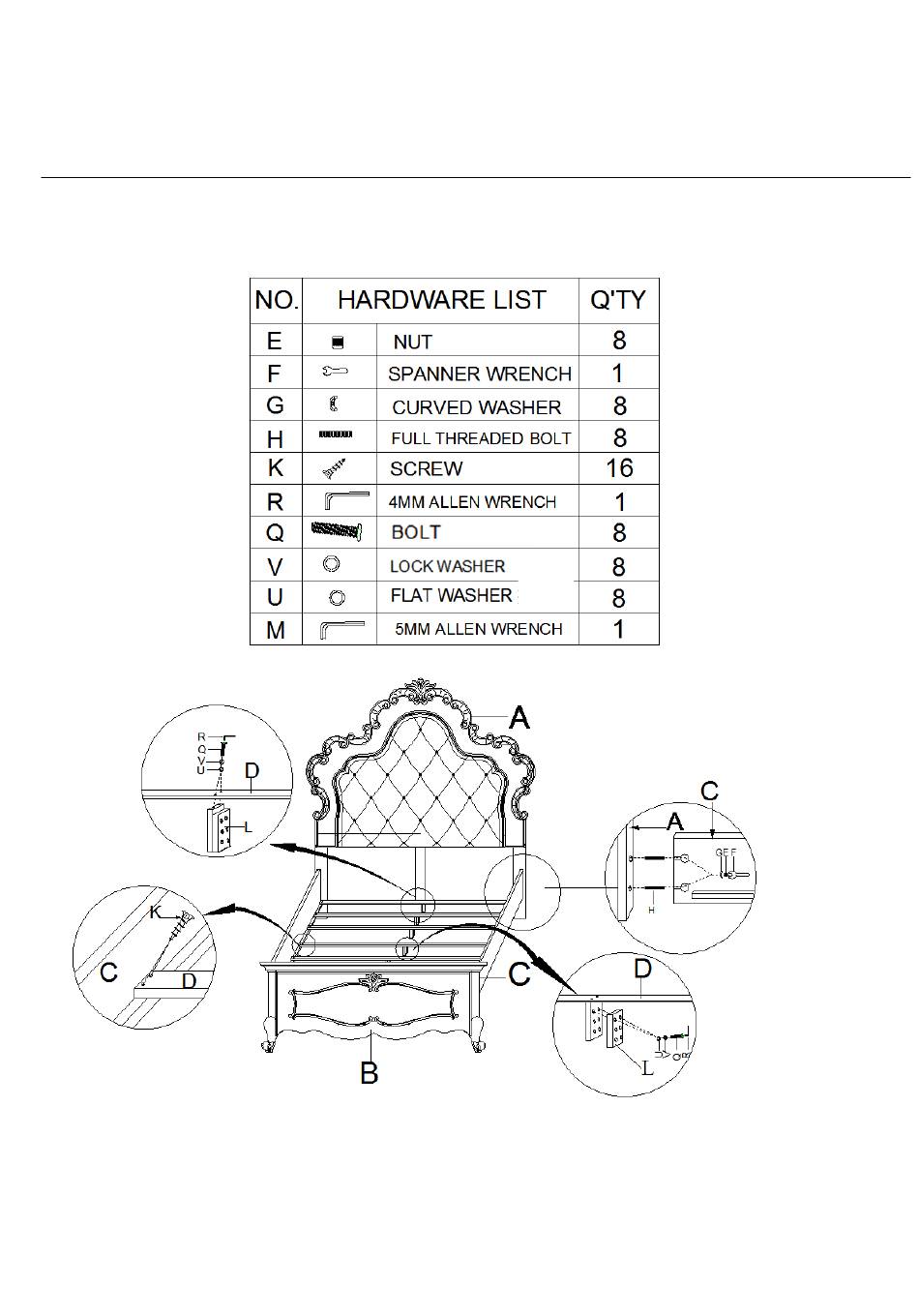

Caution: Please make sure you have all parts indicated below prior to assembly.
This bed is heavy and can best be assembled with the help of two or more persons.
See Diagram 2
See Diagram 3
ASSEMBLY INSTRUCTION

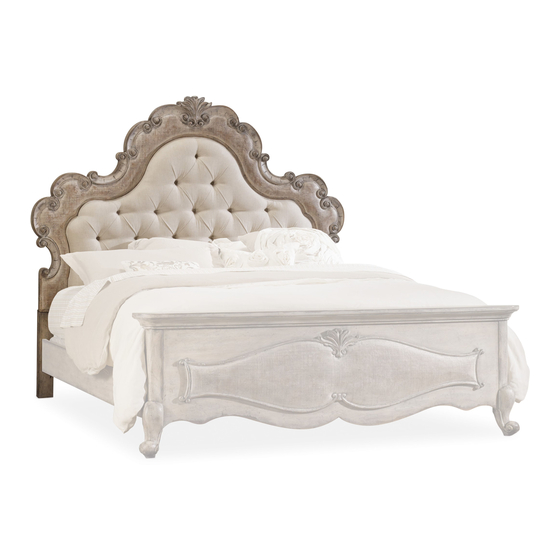

ITEM# 5450-90851 5/0 Upholstered Panel Headboard KD
5450-90852 5/0 Panel Footboard
5450-90853 5/0 Panel Rails
1/3
See Diagram 1
See Diagram 5
Advertisement
Related Manuals for Hooker Furniture Chatelet 5450-90851
Summary of Contents for Hooker Furniture Chatelet 5450-90851
- Page 1 ASSEMBLY INSTRUCTION ITEM# 5450-90851 5/0 Upholstered Panel Headboard KD 5450-90852 5/0 Panel Footboard 5450-90853 5/0 Panel Rails Caution: Please make sure you have all parts indicated below prior to assembly. This bed is heavy and can best be assembled with the help of two or more persons. See Diagram 2 See Diagram 1 See Diagram 3...
- Page 2 Please note the hardware bag to assemble side rails to HB&FB is in the box of side rails. Assembly steps: 1. Insert 2 bolts (H) into holes of each side post on Headboard (A) and Footboard (B), attach the end of side rails (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten nuts (E) securely with spanner wrench (F).
- Page 3 Note: You can change the height of slat by adjusting the height of cleat on side rail as shown in diagram 4. Remove bolt (I), lock washer (O) and flat washer (J) from the cleat by turning the bolt (I) with allen wrench (M) in anti-clockwise direction. Adjust the cleat to a desired position, and then secure lock washer, flat washer, bolt in a clockwise direction by turning with allen wrench.
