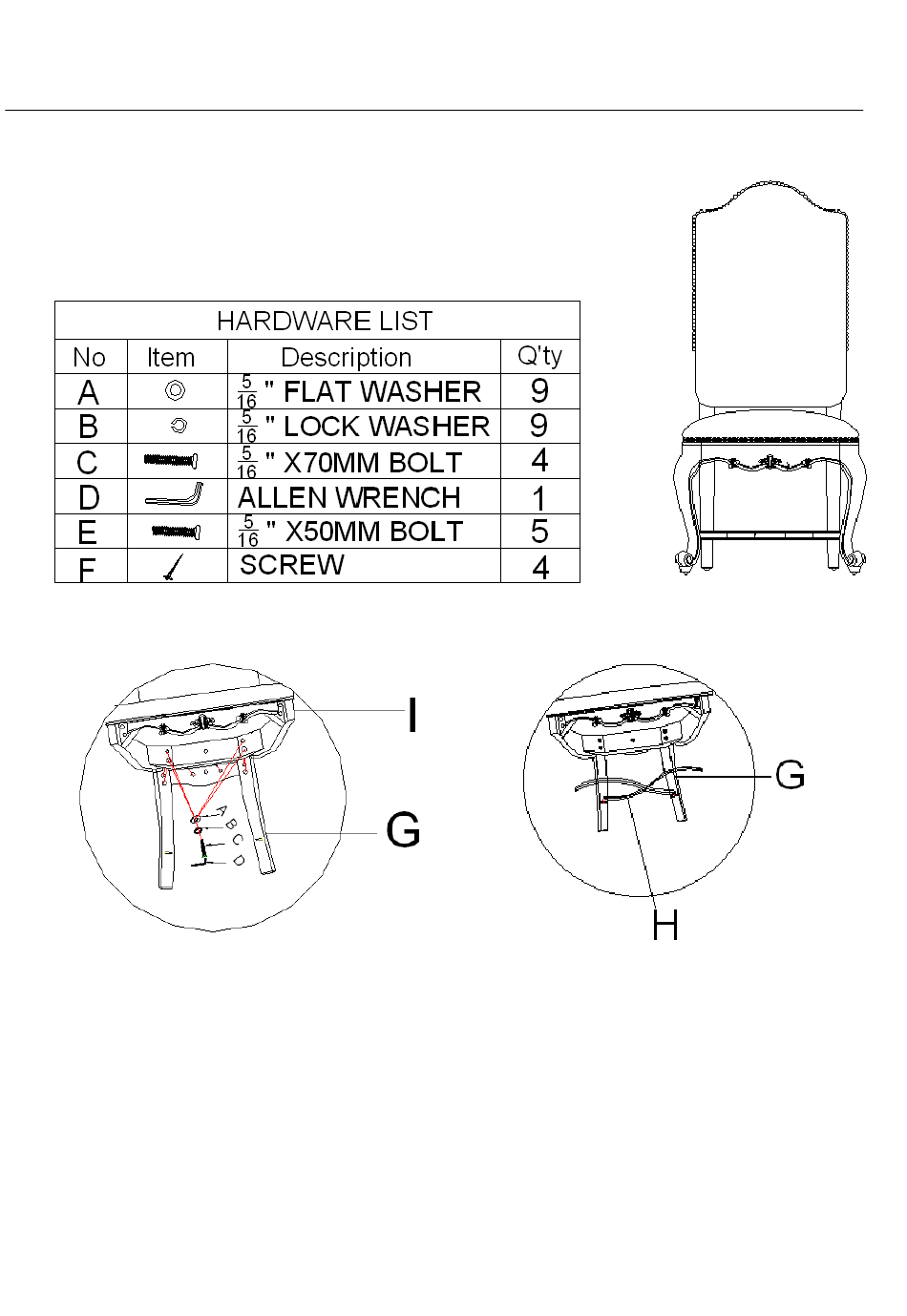

- Page 1 ASSEMBLY INSTRUCTION Item#: 5070-75510 Uph Side Chair ** Please make sure you have all parts indicated below prior to assembly. DIAGRAM 1 DIAGRAM 2...
- Page 2 DIAGRAM 3 DIAGRAM 4 Assembly Steps: There are two K/D chairs in one box. Please follow numbers on one chair and letters on the other chair during assembly. 1. Place back frame (G) on a clean surface. 2. Tighten the rear corner blocks of seat frame (I) to back legs of frame (G) using bolts (C), lock washers (B), flat washers(A).
- Page 3 1. Place the loosely assembled chair on a hard flat surface. 2. Apply gentle downward pressure on the seat. This step eliminates rocking and ensures the chair to be level. 3. Once the chair is level, tighten all bolts and nuts. Note: Most floors have slight irregularities that can affect chair leveling.
